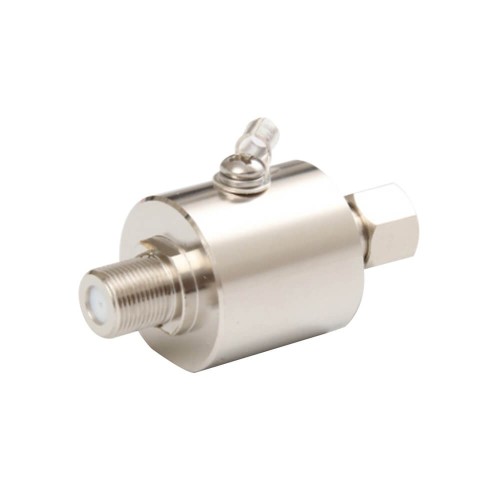

FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system

FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system
FL Connect FL10 Male To Female Straight IP67 Coaxial RF Tube Surge Arrester metric system

Product features:

  • Coaxial RF Surge Protector,FL10 To FL10,Female To Female,Straight,IP67,Coaxial Connector
  • Special shielding design, excellent surge performance, can withstand multiple lightning strikes;
  • Excellent passive intermodulation performance, excellent rf performance in the whole working band and superior power processing capability;
  • Bi-directional protection、DC Pass;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • 3G/4G/LTE Cellular Modems
  • Routers
  • Boosters/Amplifiers
  • 2.4&5GHz WiFi Access Points
  • other Sensitive Communications Devices
from
$9.38
Ex Tax: $9.38
10 or more $8.63
30 or more $7.97
50 or more $7.50
100 or more $7.04
  • Stock: In Stock
  • Model: JE00003468
  • Weight: 123.00g
  • SKU: JE00003468
Products Sold: 0
Product Views: 1
  • Specifications
attribute-list
Direction Straight
Connector A Gender Male
Waterproof level IP67
Coating Nickel Plating
Connector A Type FL10
Connector B Type FL10
Connector B Gender Female
  • Description

Electrical Characteristics

  • Power capacity (W) : 0-100w
  • Contact resistance: 50 Ω
  • Frequency range:DC - 6GHz

Mechanical Characteristics

  • Connector Mounting Type:Bulkhead/Panel/Outdoor
  • Installation angle:Straight/ Right Angle
  • Durability: >500 cycles

Environmental Characteristics

  • Ambient temperature:-40 ~ +85ºC
  • Temperature: -40 to +155°C/ 5 to 95% non-condensing
  • Environmental Protection L evel: IP55

Material:

artMaterial
Outer conductorcopper/stainless steel
Central conductorcopper
Insulatorpolytetrafluoroethylene/polyethylene
Coatinggold plated/silver/nickel/tin
ConstructionNickel plated brass
