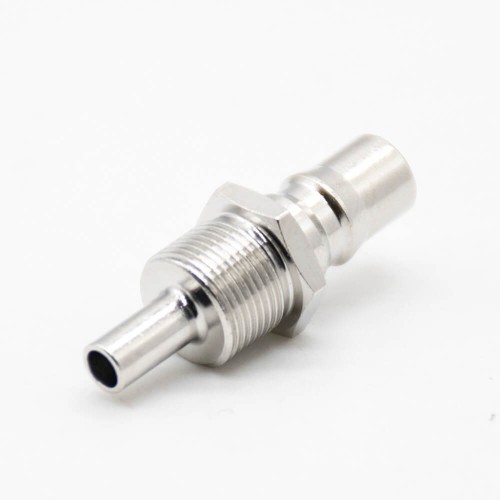

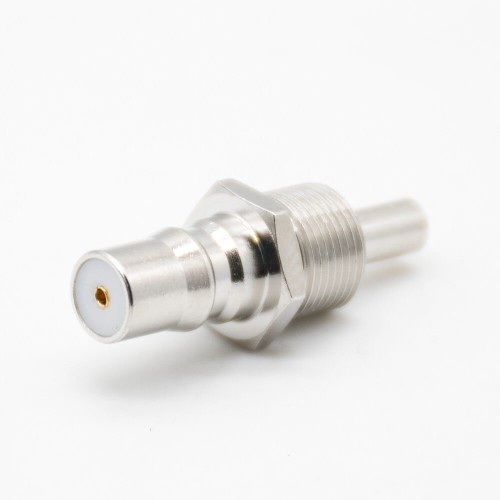

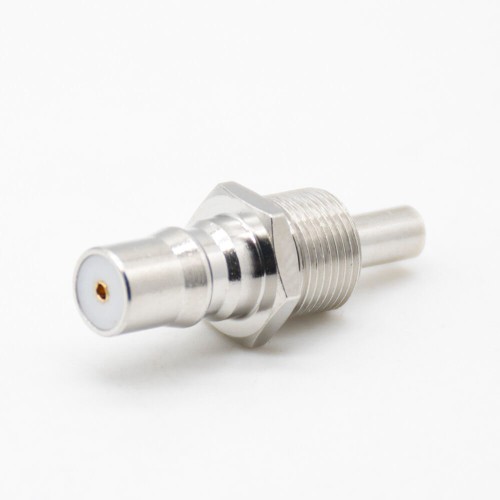

RF Connector Female QMA Standard Cable 180°Nickel Platin Solder Type RG178
from
$1.50
Ex Tax: $1.50
10 or more $1.38
30 or more $1.28
50 or more $1.20
100 or more $1.13
200 or more $1.05
- Stock: In Stock
- Model: JE00003283
- Weight: 30.00g
- SKU: JE00003283
Products Sold: 0
Product Views: 12
Ask a Question About This Product
- Description
Electrical Characteristics
- Impedance:50 Ohm
- Frequency Range: DC- 6 GHz
- VSWR：≤1.20@DC-3GHz
- Dielectric Withstanding Voltage:≥1000V RMS,50Hz
- Dielectric Resistance: ≥5000 MOhm
- Working Voltage : ≤480V
- Contact Resistance: Center Contact ≤2.5m Ohm
- Outer Contact ≤3.0m Ohm
Mechanical Characteristics
- Interface Retention Force: ≥60N
- Durability (Mating times): ≥200
- These characteristics are typical and may not apply to all connectors.
- Outer Contact ≤3.0m Ohm
Environmental Characteristics
- Temperature Range：-65°C to +165°C
Material:
| Part | Material | Finish |
| Body | BRASS | Au:1u" |
| insulator | TEFLON | WHITE |
| Center Contact Pin | BRASS | Au:3u" |
