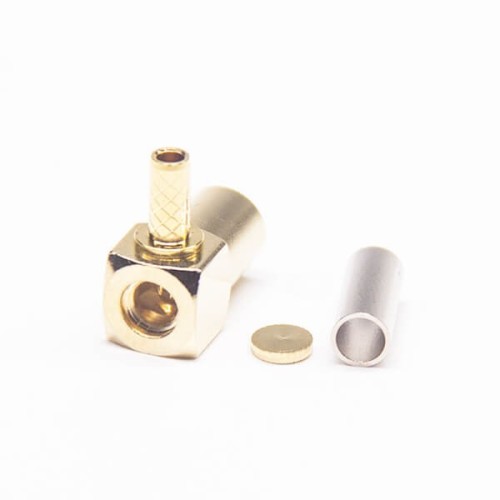

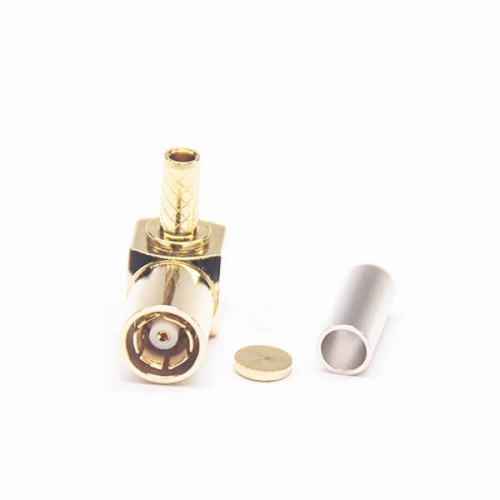

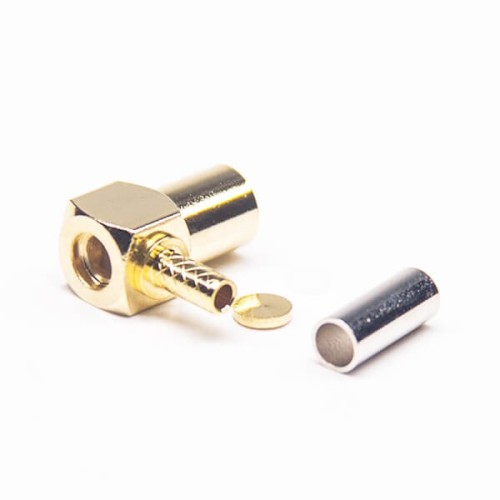

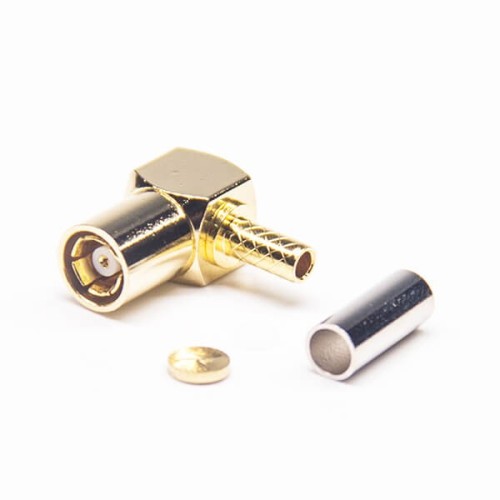

Right Angle SMB Male Crimp Type For Rg174 Cable
from
$1.50
Ex Tax: $1.50
10 or more $1.38
30 or more $1.28
50 or more $1.20
100 or more $1.13
200 or more $1.05
- Stock: In Stock
- Model: JE00001960
- Weight: 4.50g
- SKU: JE00001960
Products Sold: 0
Product Views: 9
Ask a Question About This Product
- Description
Main Application of SMB Connectors:
- Aerospace and Defense: Test Stands
- Technology: Telemetry
- Commercial Vehicle: GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Routers, WIFI, Radio Boards
- Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation
Techinial Datasheet:
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance:3mW
- Outer Contact Resistance:25mW
- Insultation Resistance:5GW
Mechanical Characteristics
- Coupling: Snap-on
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -65°C ~ +165°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Gold |
| Center Contact Pin | Brass | Gold |
| Insulator | Teflon | White |
