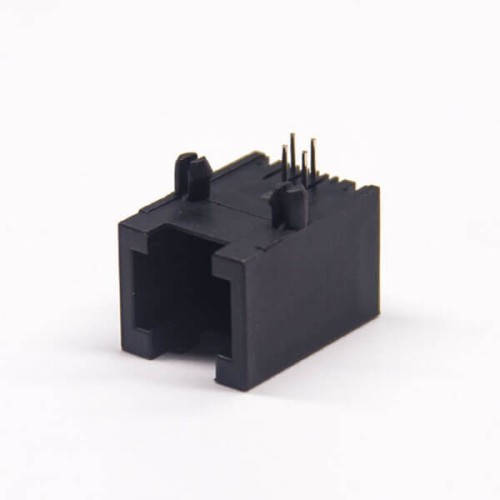

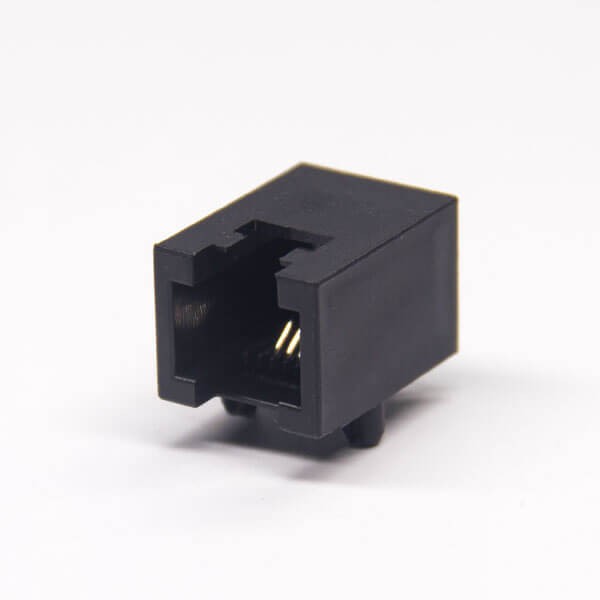

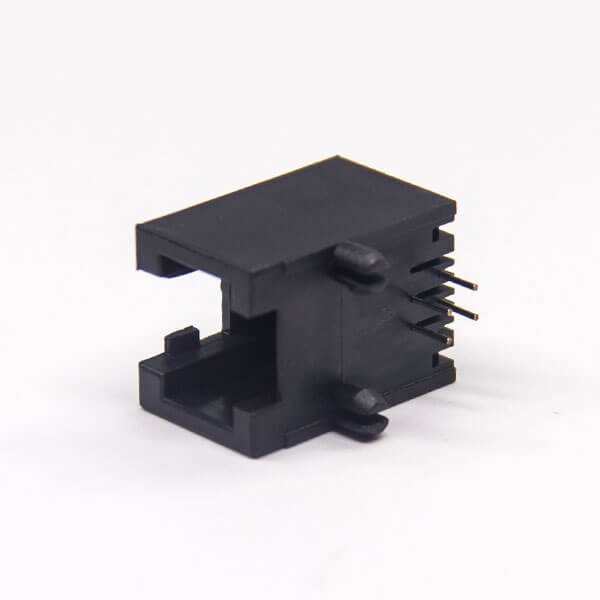

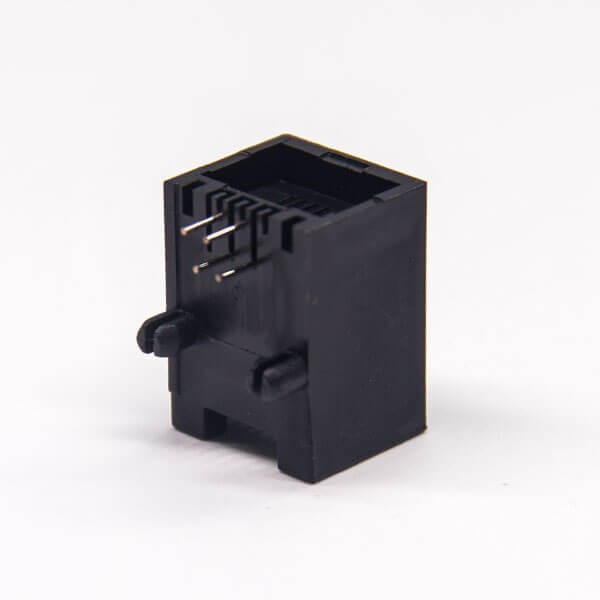

RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount

RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount

Features:

  • RJ11 Jack,6P4C,Single Port,1*1,Right Angle,Gold Plating,Through Hole,PCB Mount,Unshieded,Without LED,Without,Filtered
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$0.69
Ex Tax: $0.69
  • Stock: In Stock
  • Model: JE00006169
  • Weight: 1.90g
  • SKU: JE00006169
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Connector Type Socket
Shield Unshielded
Number of contacts 6p4c
Continuous plating Gold
Direction Right Angle
LED No
Number of Rows 1×1
Filter No
Waterproof level Not Waterproof
Port number Single
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

PartMaterialFinish
HousingNylon 46 glass filledUL94V-0
ShieldCopper AlloyNickel Plating
ContactCopper AlloyAu over nickel

RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount

RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount

RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount

RJ11 6P4C Connector Jack Right Angle Through Hole PCB Mount
