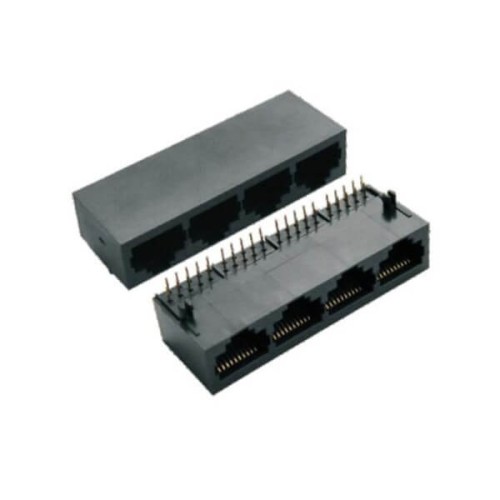

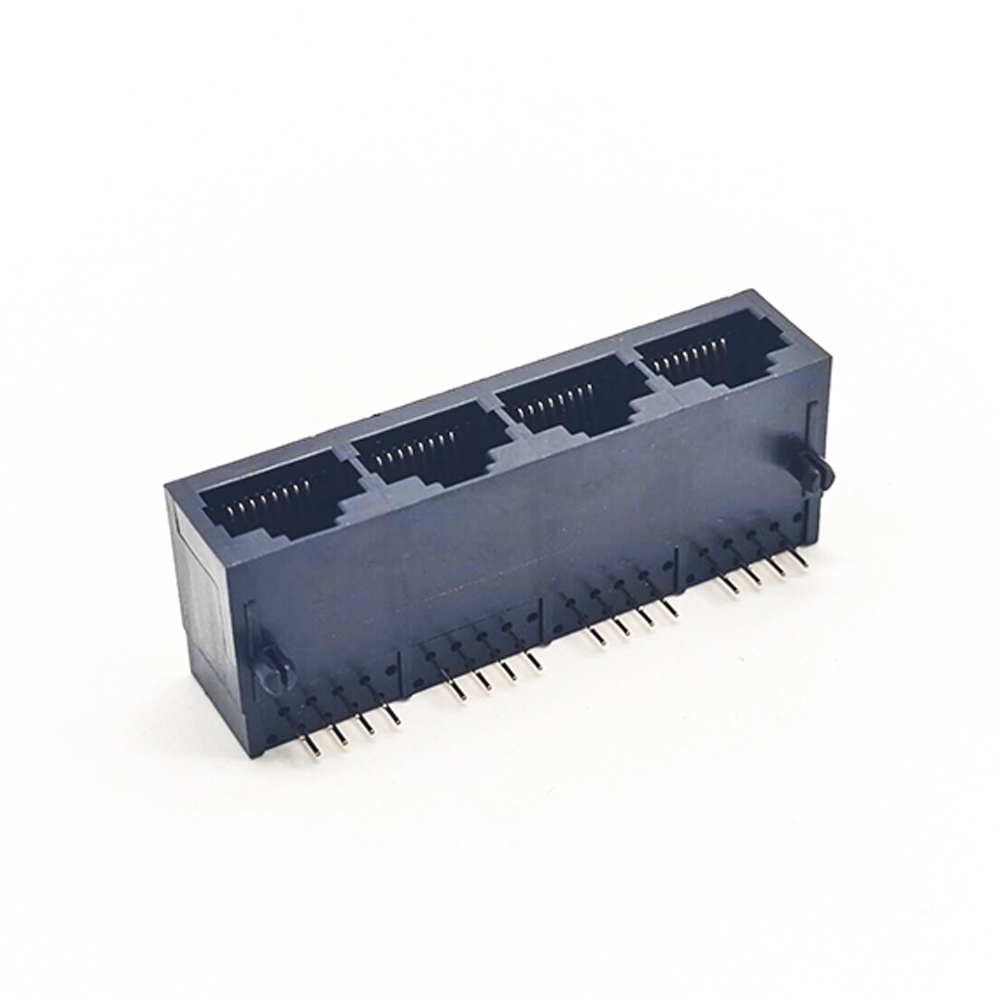

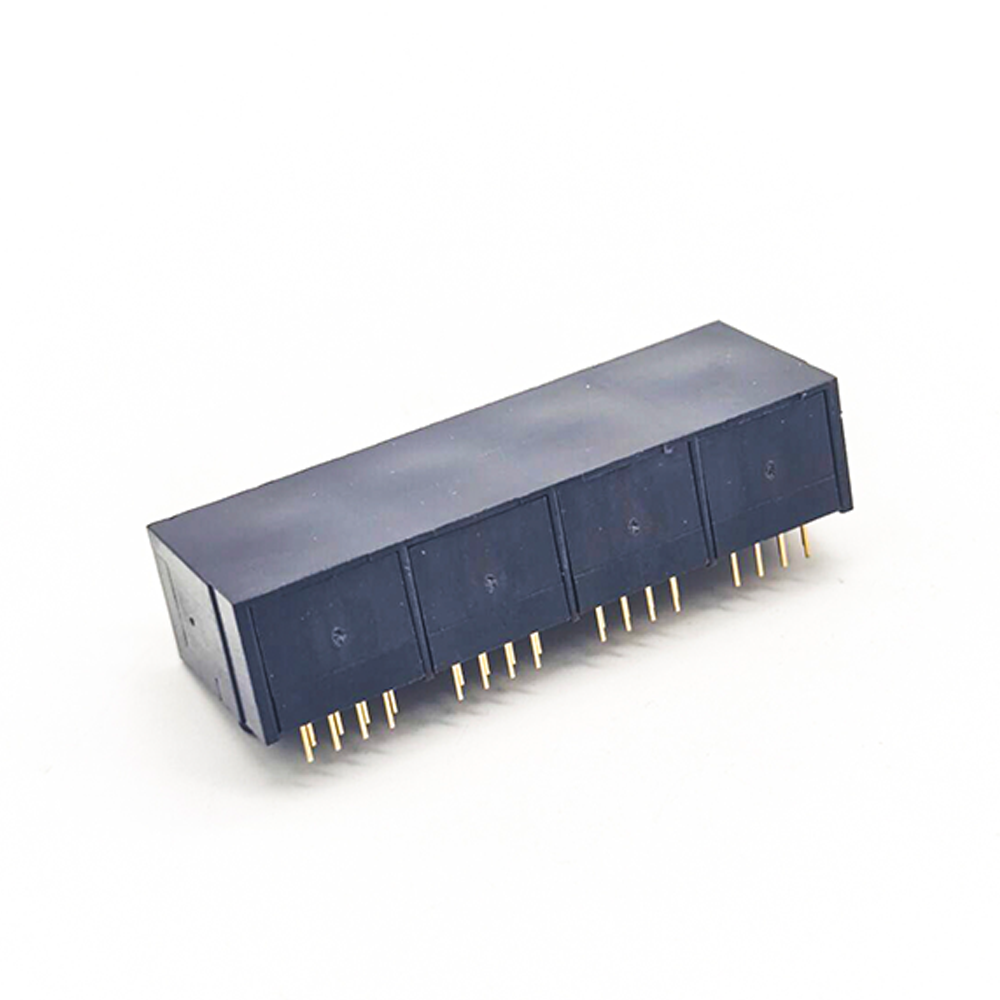

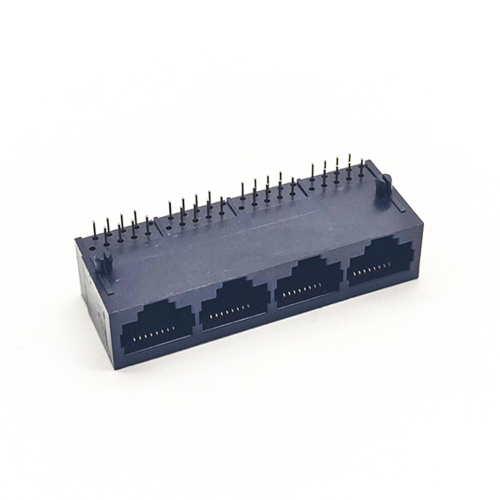

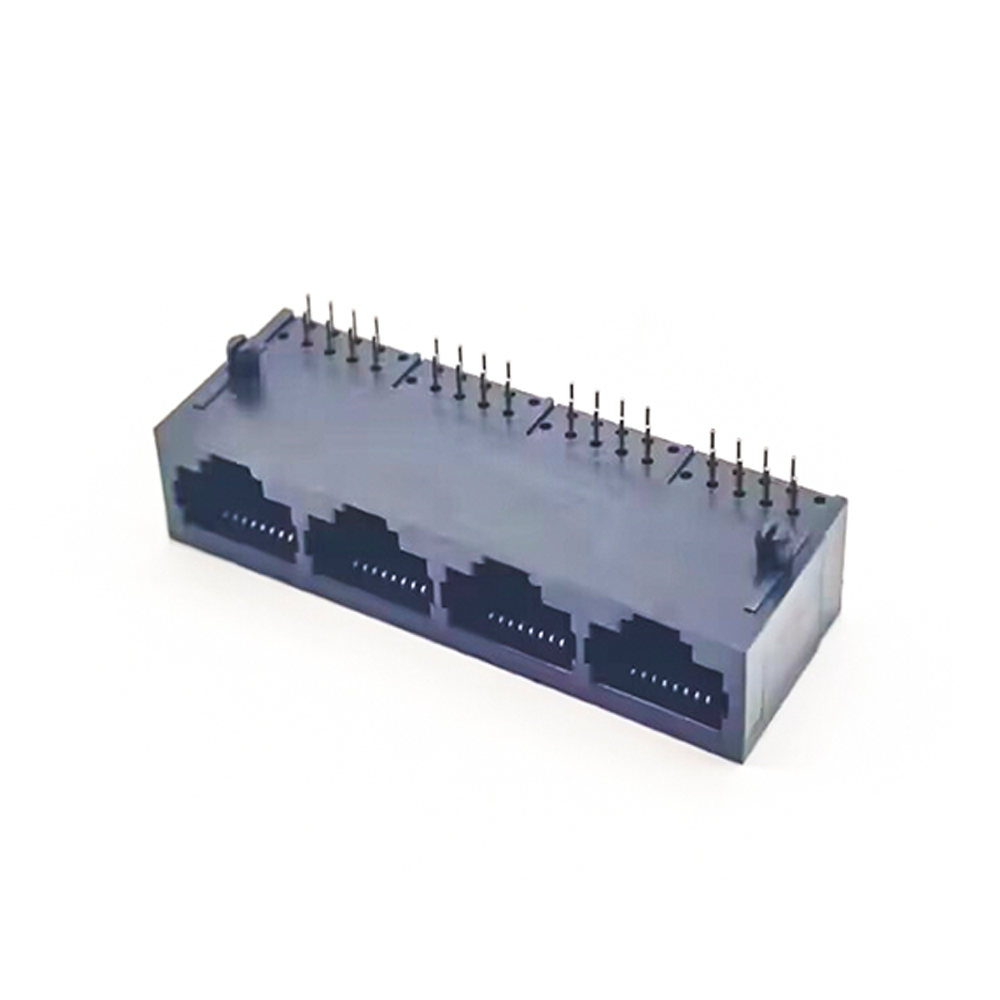

RJ45 1x4 Connector Female 90 Degree Unshield without Led Black

RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
RJ45 1x4 Connector Female 90 Degree Unshield without Led Black

Features:

  • RJ45 Connector,Jack,8P8C,4 Ports,1*4,Single Row,Angled(90°),Gold Plated,Through Hole,PCB Mount,Unhield,Without Led,Without Filtered,Without POE,Not Waterproof
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$1.99
Ex Tax: $1.99
10 or more $1.83
30 or more $1.69
50 or more $1.59
100 or more $1.49
200 or more $1.39
  • Stock: In Stock
  • Model: JE00006052
  • Weight: 13.00g
  • SKU: JE00006052
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Connector Type Socket
Shield Unshielded
Number of contacts 8p8c
Continuous plating Gold
Direction Right Angle
LED No
Number of Rows 1×4
Filter No
Waterproof level Not Waterproof
Port number 4
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

Part Material Finish
Housing Nylon 46 glass filled UL94V-0
Shield Copper Alloy Nickel Plating
Contact Copper Alloy Au over nickel

RJ45 1x4 Connector Female 90 Degree Unshield without Led Black

RJ45 1x4 Connector Female 90 Degree Unshield without Led Black

RJ45 1x4 Connector Female 90 Degree Unshield without Led Black

RJ45 1x4 Connector Female 90 Degree Unshield without Led Black

RJ45 1x4 Connector Female 90 Degree Unshield without Led Black
