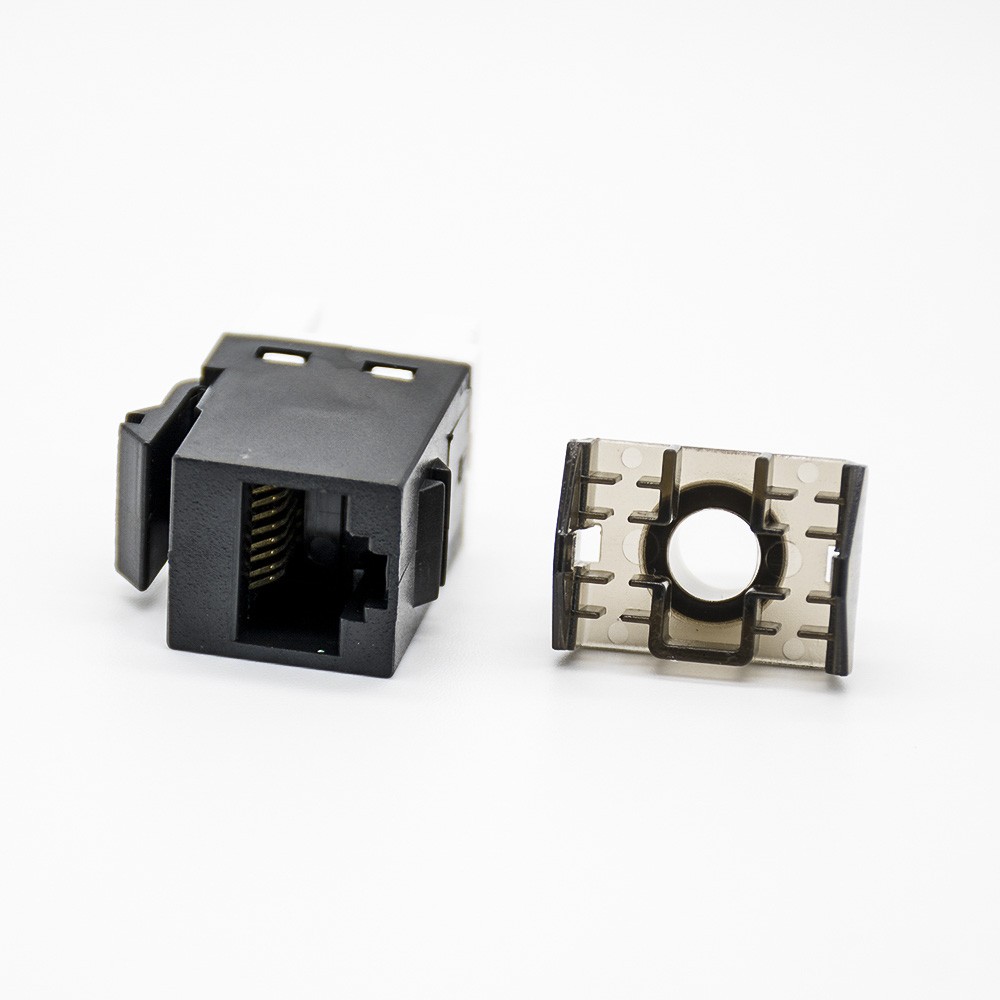

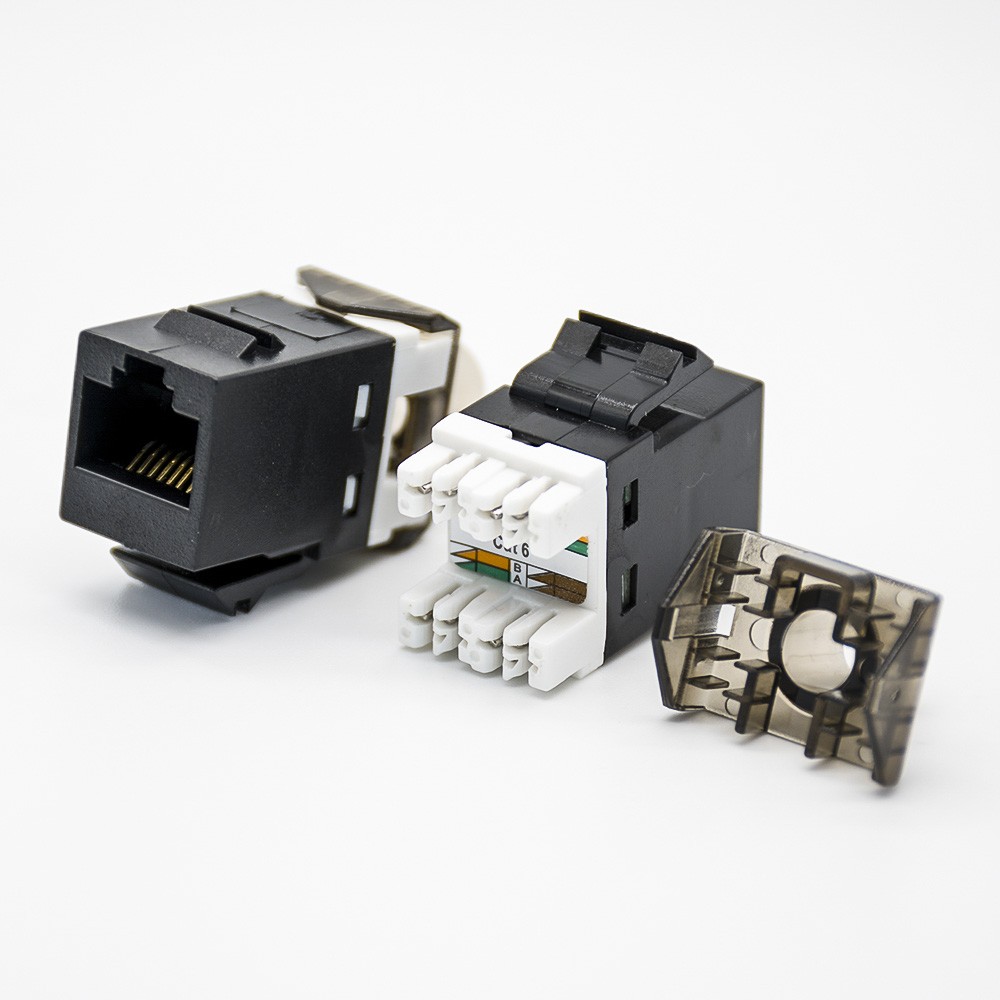

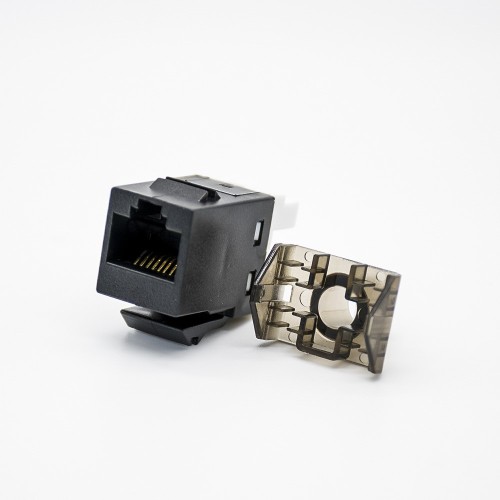

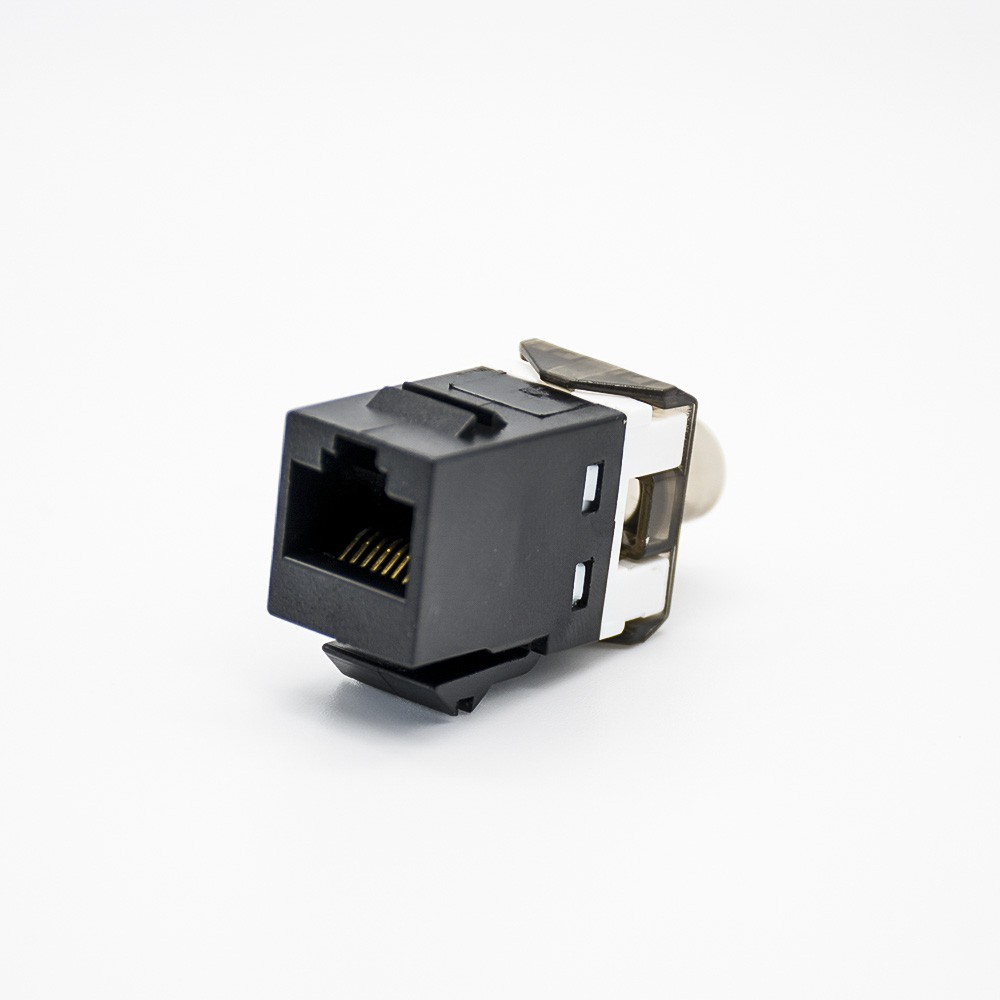

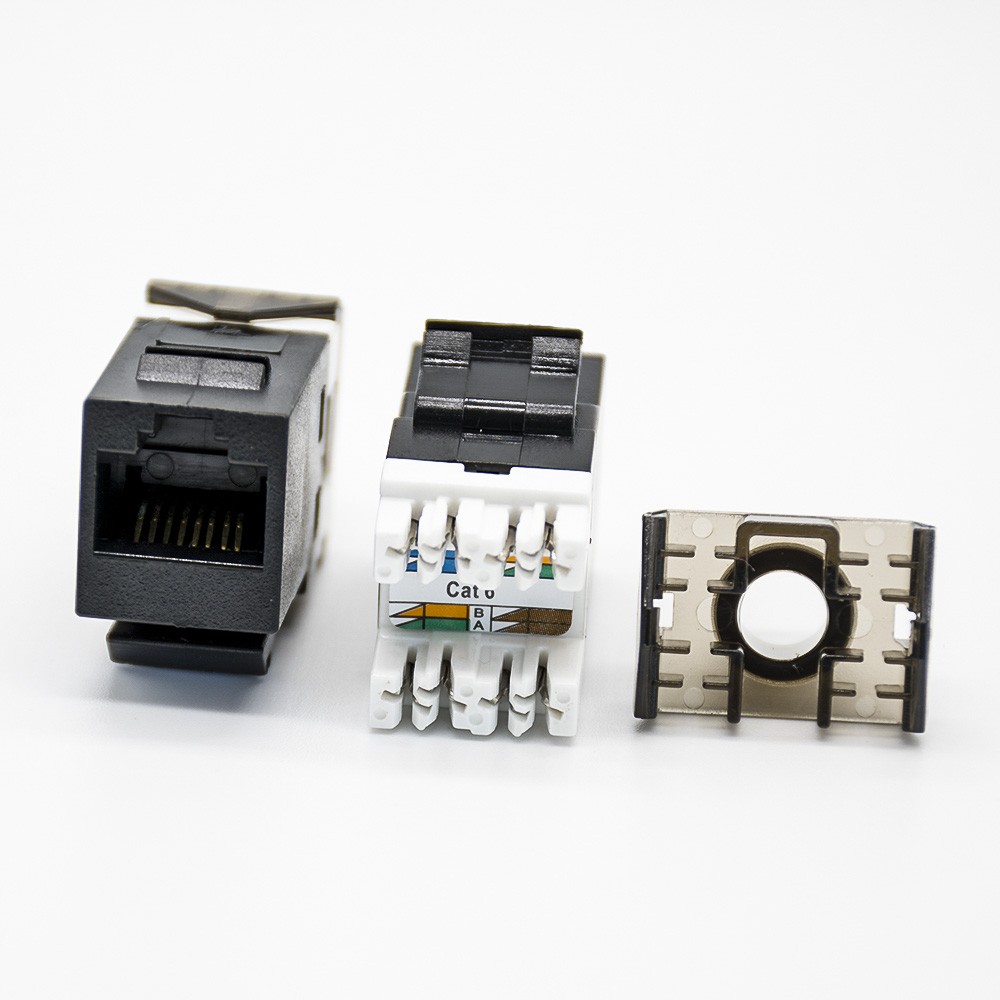

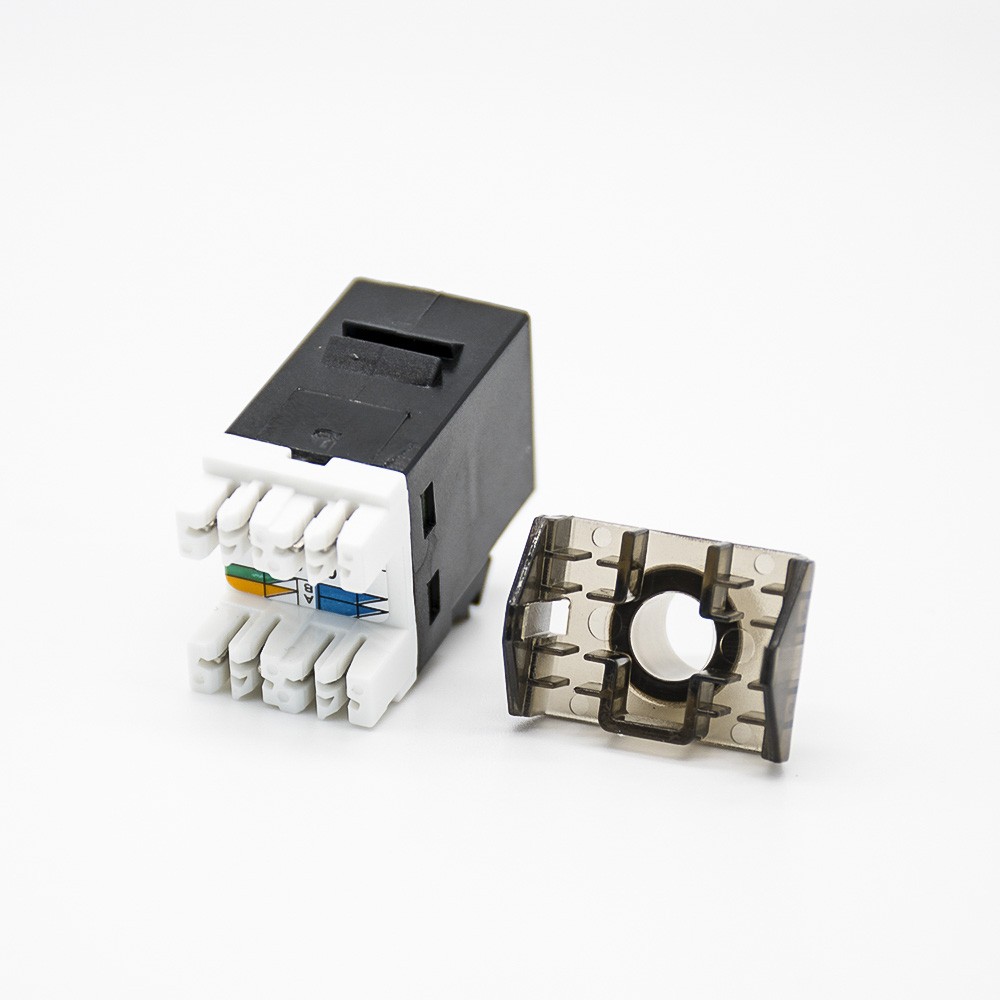

RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover

RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover
RJ45 Female Jack Single Port CAT6 Unshielded 8P8C PCB Mount Network Module With Dust Cover

Features:

  •  RJ45 Jack,8P8C,Single Port,1*1,Straight,Gold,Through Hole,PCB Mount,Unshielded,without LED,without Filtered,CAT6,With Dust Cove
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$1.04
Ex Tax: $1.04
10 or more $0.96
30 or more $0.88
50 or more $0.83
100 or more $0.78
200 or more $0.73
  • Stock: In Stock
  • Model: JE00006151
  • Weight: 7.90g
  • SKU: JE00006151
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Connector Type RJ45
Shield Unshielded
Number of contacts 8p8c
Direction Right Angle
Waterproof level IP67
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

PartMaterialFinish
HousingNylon 46 glass filledUL94V-0
ShieldCopper AlloyNickel Plating
ContactCopper AlloyAu over nickel
