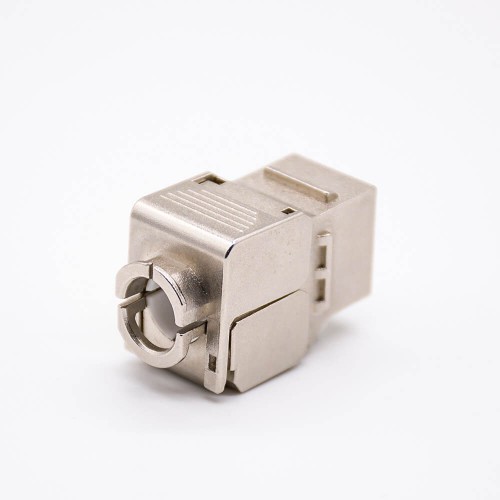

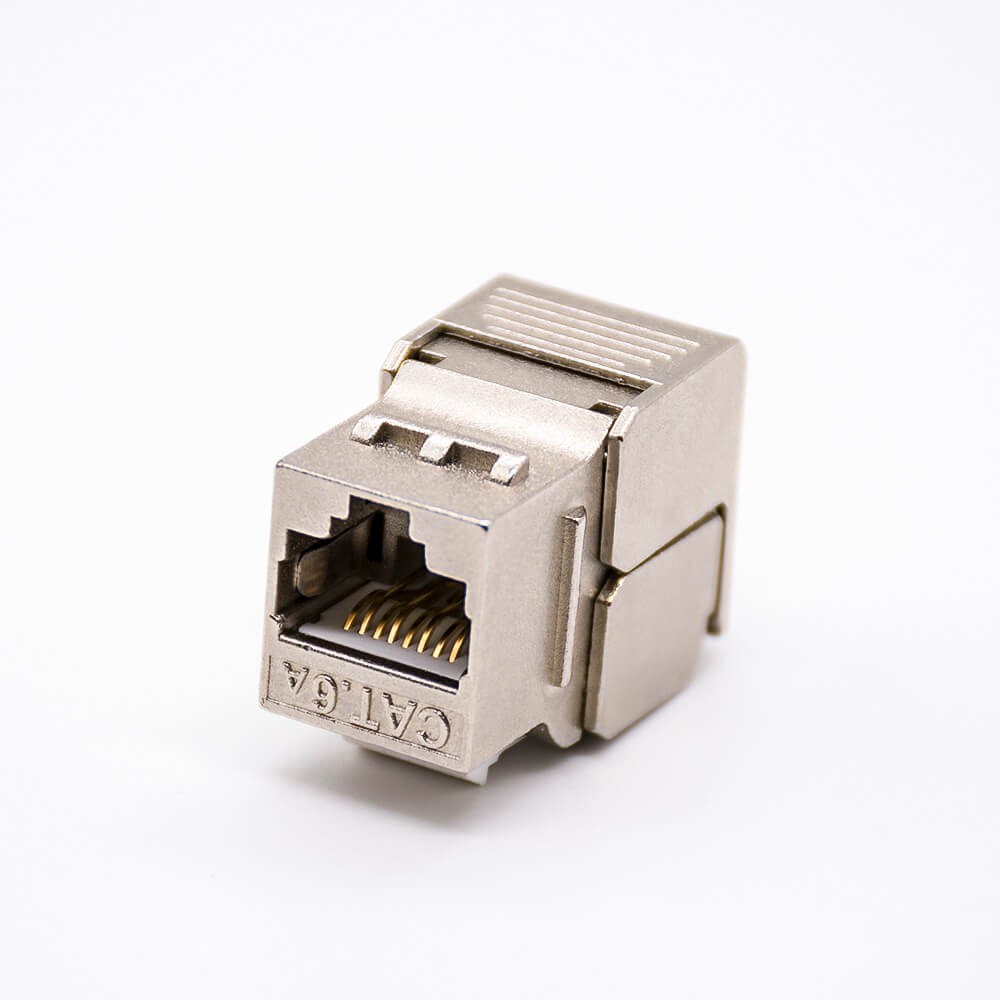

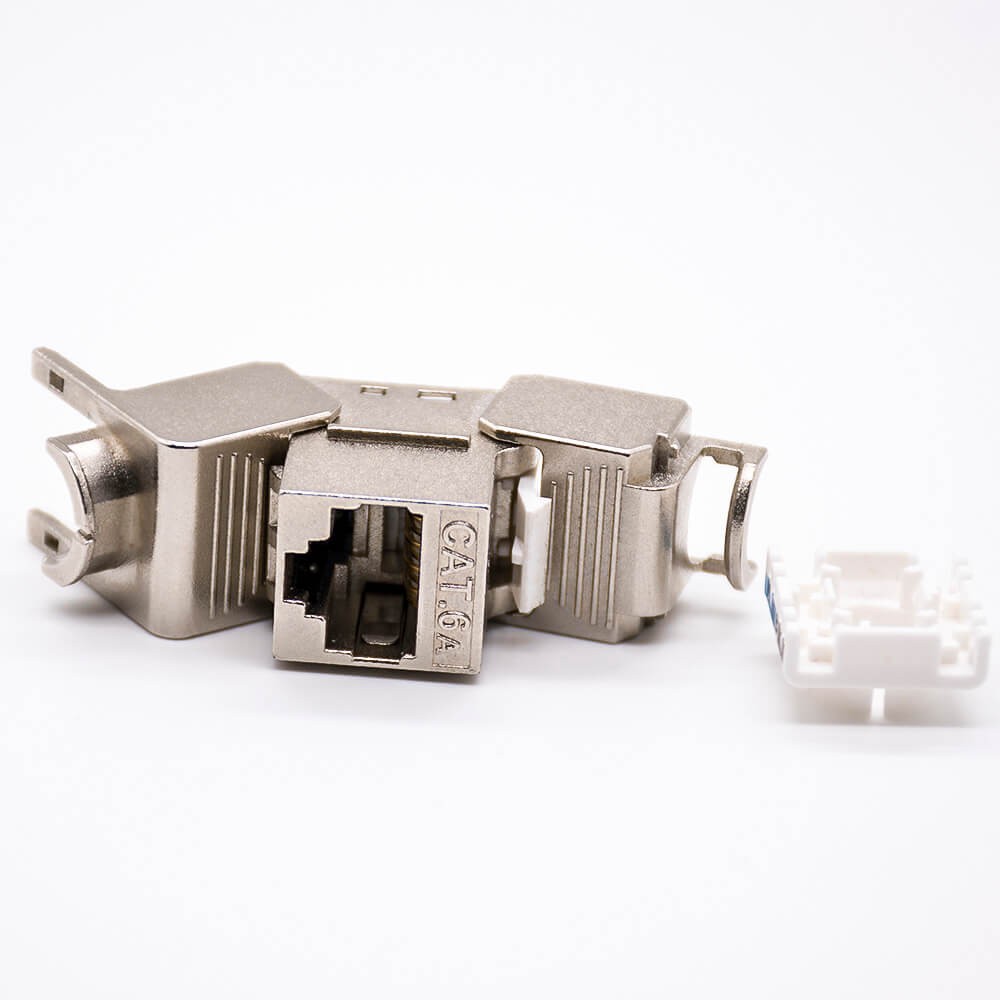

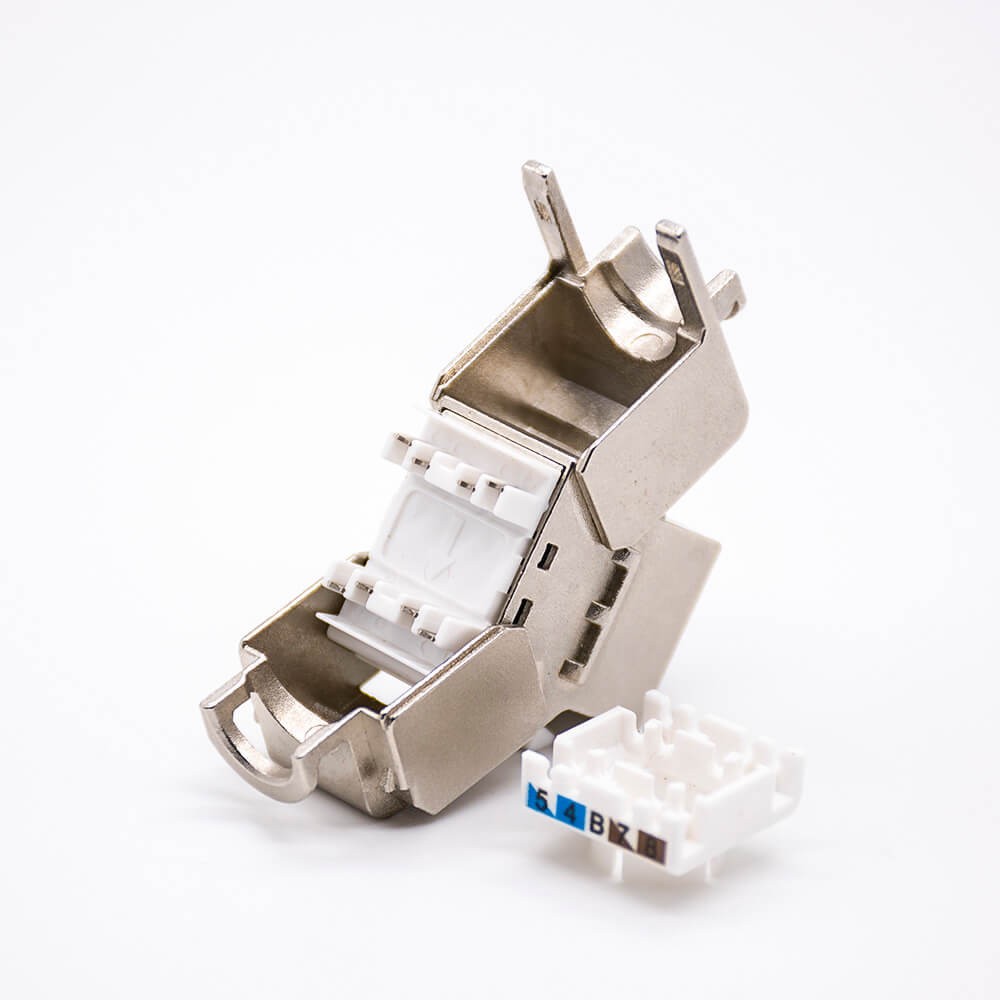

RJ45 Jack CAT6A Toolless Keystonge Jack Shielded 8P8C 180 Degree Single Port
from
$3.04
Ex Tax: $3.04
10 or more $2.80
30 or more $2.58
50 or more $2.43
100 or more $2.28
- Stock: In Stock
- Model: JE00006004
- Weight: 27.00g
- SKU: JE00006004
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Applications:
- Routers
- Ethernet switches
- ATMs
- Point of sales terminals
- Vending machines
- Set-top boxes
- Technology analysis equipment
- Laptops
- Phone line security systems
Electrical Characteristics
- Current rating: 3A continuous
- Insulation resistance: 500MΩ min.
- Dielectric withstanding voltage: 1500V min.
- Voltage rating 1000V rms
Mechanical Characteristics
- Mating force: 5N to 20N
- Unmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 120°C
Material:
| Part | Material | Finish |
| Housing | Nylon 46 glass filled | UL94V-0 |
| Shield | Copper Alloy | Nickel Plating |
| Contact | Copper Alloy | Au over nickel |
