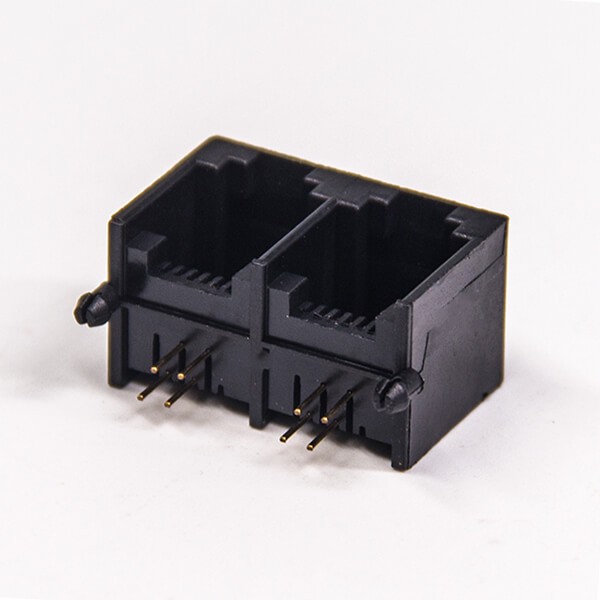

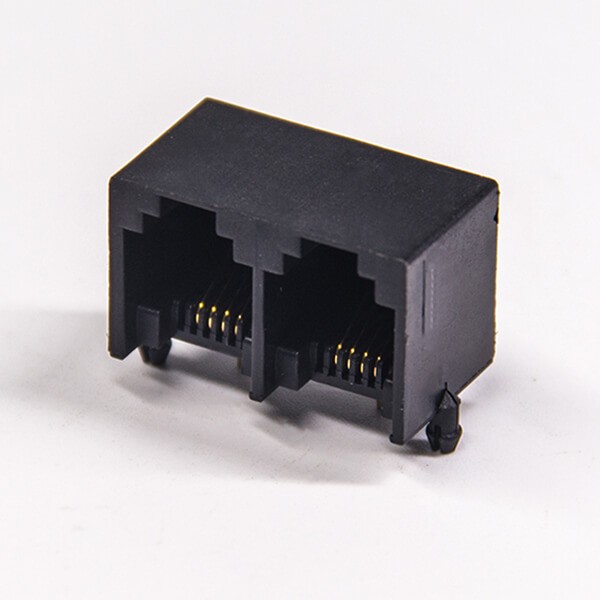

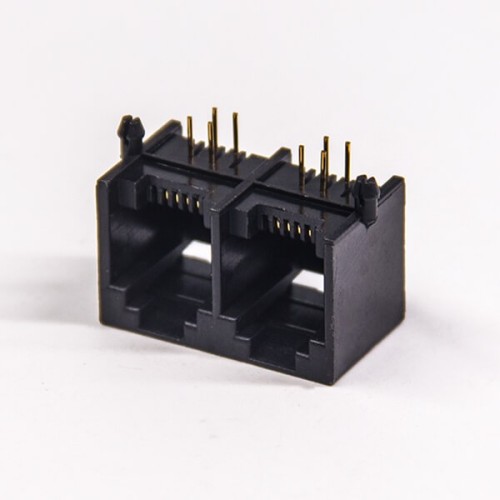

RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole

RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole
RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole
RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole
RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole
RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole
RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole
RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole

Features:

  • RJ9 Jack,6P4C,2 Port,1*2,Angled,Gold,Through Hole,PCB Mount,UnShielded,without LED,without Filtered
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$0.39
Ex Tax: $0.39
  • Stock: In Stock
  • Model: JE00005974
  • Weight: 2.50g
  • SKU: JE00005974
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Connector Type Socket
Shield Unshielded
Number of contacts 6p4c
Continuous plating Gold
Direction Right Angle
LED No
Number of Rows 1×2
Filter No
Waterproof level Not Waterproof
Port number Dual
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

Part Material Finish
Housing Nylon 46 glass filled UL94V-0
Shield Copper Alloy Nickel Plating
Contact Copper Alloy Au over nickel

RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole

RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole

RJ9 6P4C Jack Connector 1x2 port 90° Black Unshielded Without LEDS Through Hole
