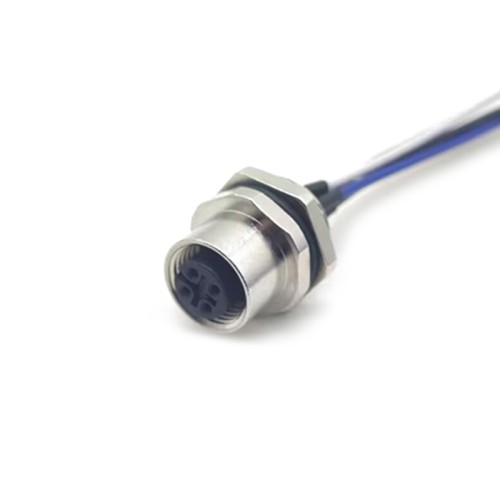

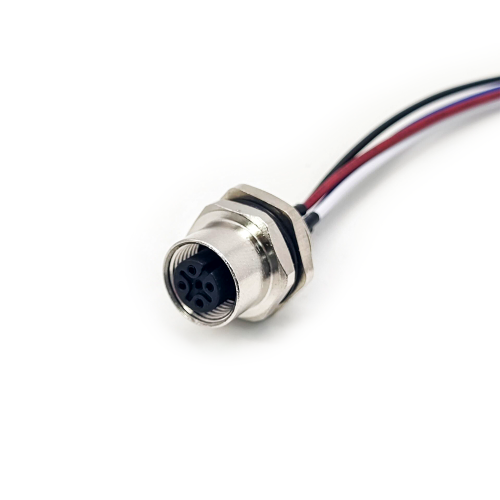

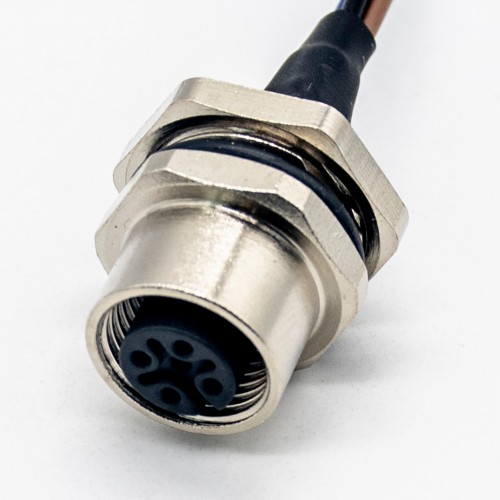

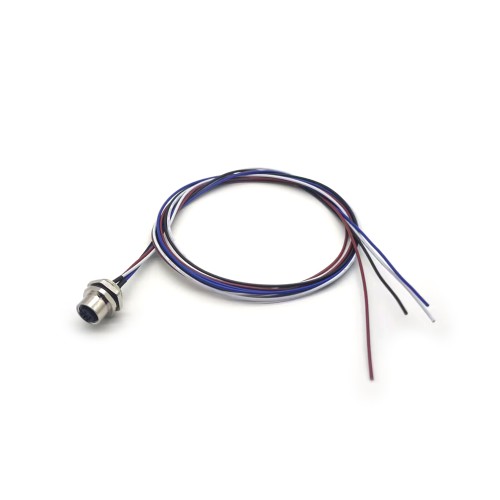

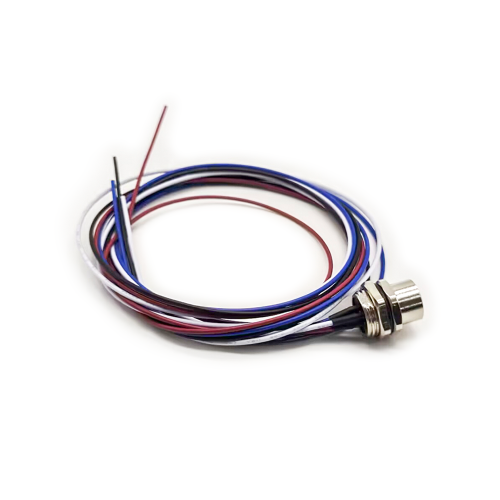

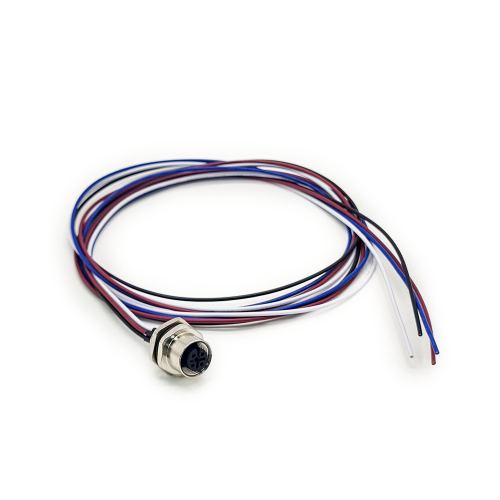

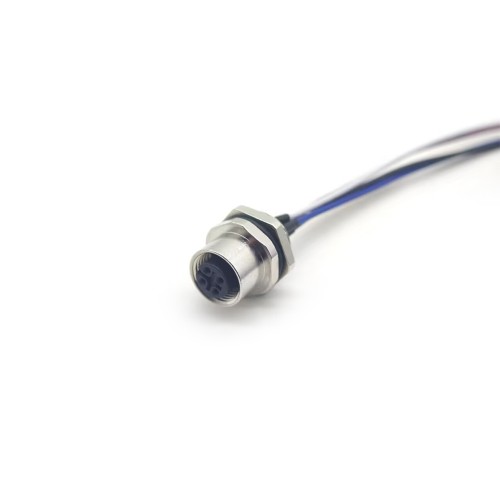

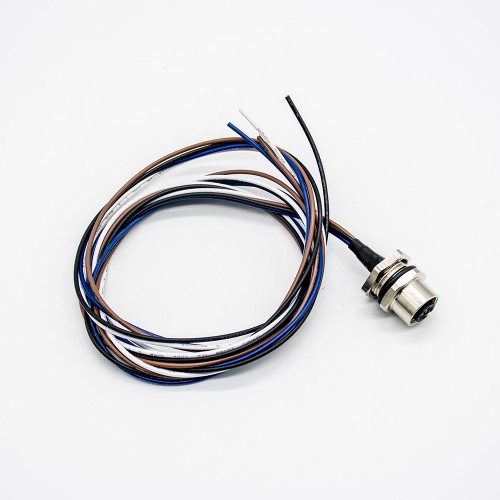

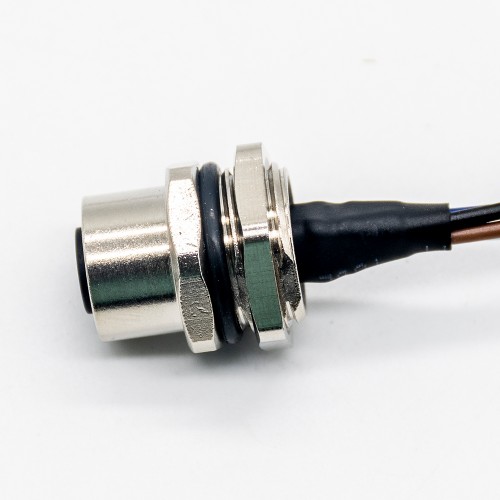

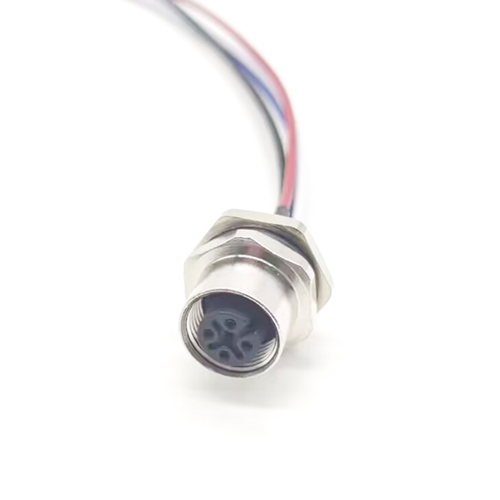

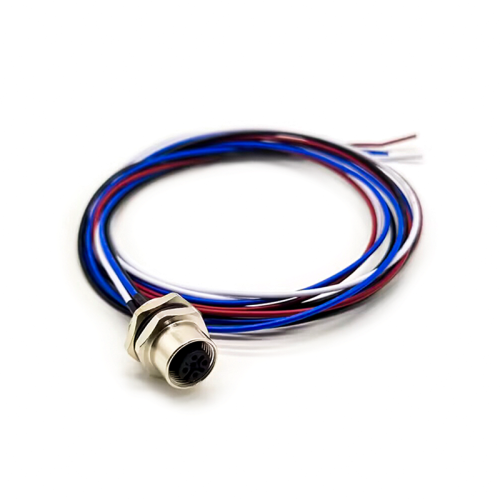

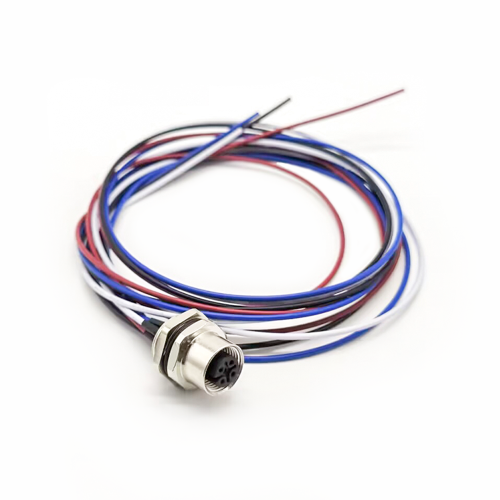

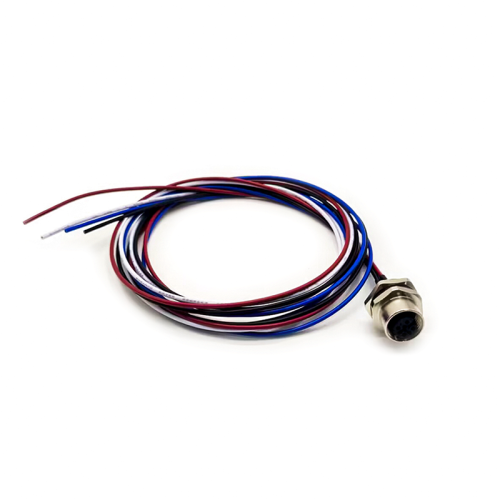

M12 Connector 4Pin Female Bulkhead A Coded Waterproof Straight Panel Mount Receptacle PG9 With Wires 1M AWG22
from
$7.80
Ex Tax: $7.80
10 or more $7.18
30 or more $6.63
50 or more $6.24
100 or more $5.85
- Stock: In Stock
- Model: JE00007476
- Weight: 39.00g
- SKU: JE00007476
Products Sold: 0
Product Views: 1
Ask a Question About This Product
- Description
Applications:
- Miniature sensors
- Industrial camera
- Electrical bike
- Packaging, Labeling & Logistic
- Factory automation and fieldbus module
how to order:
Contact Arrsngement:
male
female
A code
B code
D code
Electrical Characteristics
- Rated current: 1.5 A
- Contacts resistance: ≤ 5 mΩ
- Insulation resistance: ≥100 MΩ
- Rated voltage: 30V
- Standard: IEC 61076-2-101
Mechanical Characteristics
- Coupling: thread locking
Environmental Characteristics
- Ambient temperature: -40°C ~ + 90°C
- IP rating: IP67
Material:
| art | Material | Finish |
| Connector contacts | Brass | Gold |
| Coupling nut/screw | Brass | Nickel |
| nsert/ Housing | TPU | ------ |
| Sealing | Epoxy | ------ |
