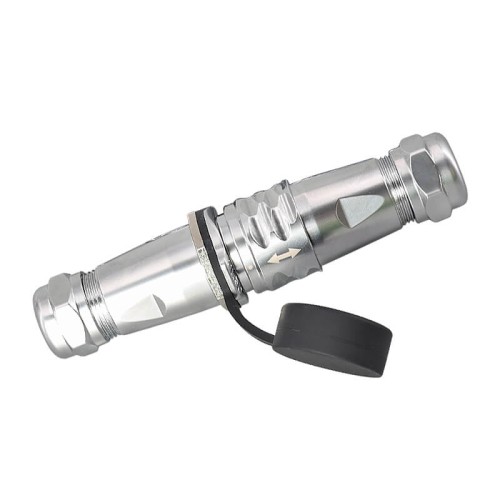

Circular Metal Aviation Male Female Docking Waterproof SF20-4 Pin Docking Camera Cable Quick Industrial Push-Pull
from
$24.80
Ex Tax: $24.80
- Stock: In Stock
- Model: JE00012601
- Weight: 50.00g
- SKU: JE00012601
Products Sold: 0
Product Views: 0
Ask a Question About This Product
- Description
Connection method： Push-pull Self lock
SF6 options: 2,3,4,5 pin
SF12 options:2,3,4,5,6,7,9 Pin
SF20 option：2,3,4,5,6,7,9,10,12 pin
Electrical Characteristics
- Rated current:25A (2,3,4,5pin）
- Rated current:15A (6pin）
- Rated current:10A (7pin）
- Rated current:5A (8,9,10,12pin）
- Rated voltage:500V
- Ø1.00mm Center Contact Resistance≤5 mΩ(Milliohms max.)
- Ø2.5mm Center Contact Resistance≤1 mΩ(Milliohms max.)
- Ø1.5mm Center Contact Resistance≤2.5 mΩ(Milliohms max)
- Ø2.0mm Center Contact Resistance≤2.5 mΩ(Milliohms max)
- Insultation Resistance ≧2000 mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: Push-pull Quick
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics:-45℃~+85℃
Material:
| Part | Material | Finish |
| Body | Copper chrome plating | Copper chrome plating |
| Center Contact Pin | Copper gold plating | Copper gold plating |
| Insulator | PPS | Black |
