SMA Female Connector, 12.7 x 4.8mm / 0.500 x 0.190inch Flange, 0.8mm Horizontal Flat Pin
from
$9.00
Ex Tax: $9.00
5 or more $8.55
10 or more $8.10
- Stock: In Stock
- Model: JE00013180
- SKU: JE00013180
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Part Number: EB-DRF-0148
Description: SMA Female Connector – 12.7 x 4.8mm / 0.500 x 0.190inch Flange Jack w/ 0.80 x 0.20mm / 0.031 x 0.008inch Horizontal Flat Pin.

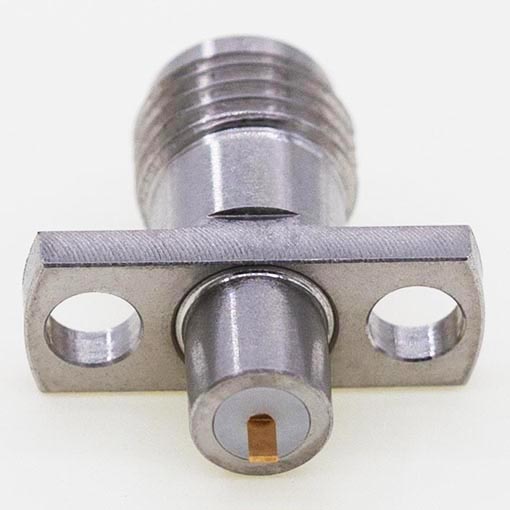

This EB-DRF-0148, 2 hole flange female SMA connector with size 12.7 x 4.8 mm / 0.500 x 0.190inch flange jack and 0.80 x 0.20mm / 0.031 x 0.008inch horizontal flat pin terminal, frequency range from DC to 27GHz, 50Ω impedance, VSWR 1.10:1 (max) for DC~18GHz and 1.15:1 (max) for 18GHz~27GHz, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 27GHz
Applications
- General Purpose Test
- SMA Bulkhead Flange Connection
- Rack and Panel Mount Application
- 0.80mm / 0.031inch Horizontal Flat Pin
Key Features
| Polarity | Standard |
| Connector Type | SMA |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Panel Mounting | 2 Hole Flange |
| Attachment Method | Solder |
| Frequency Range | DC~27GHz |
Performance Features
| VSWR： | DC~18GHz: 1.10:1 (Max) |
| 18GHz~27GHz:1.15:1 (Max) | |
| Contact resistance | Center Conductor≤3.0mΩ |
| Outer Conductor≤2.0mΩ | |
| Insulation resistance | ≥5000MΩ |
| Withstanding Voltage | 1000V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PTFE & PEI |
