SMA Female PCB Connector, Φ7.5mm / .295″ Straight Jack, Φ0.3 x 1.22mm (L) Pin
from
$8.00
Ex Tax: $8.00
5 or more $7.60
10 or more $7.20
- Stock: In Stock
- Model: JE00013135
- Weight: 0.10kg
- SKU: JE00013135
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Part Number: EB-DRF-0179

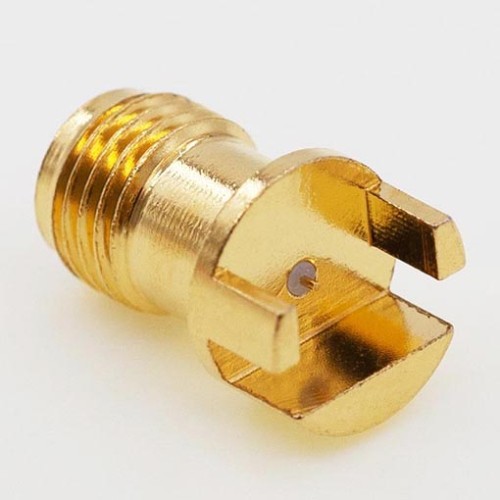

Description: SMA Female PCB Connector, Diameter 7.5mm / .295″ Straight Jack & Diameter 0.3mm / .012″ x 1.22mm / .048″ Length Pin Terminal.
This EB-DRF-0179, SMA female connector solder attachment surface mount on PCB, with size diameter 7.5mm / .295″ straight jack and diameter 0.3mm / .012″ x 1.22mm / .048″ length pin terminal, frequency range from DC to 27GHz, 50Ω impedance, VSWR 1.10:1 (max) for DC~18GHz and 1.15:1 (max) for 18GHz~27GHz, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 18GHz
Applications
- General Purpose Test
- PCB Application
- Diameter 0.3mm / .012″ Pin Terminal
- PCB Thickness Targeted: 1.78mm / 0.070″
Key Features
| Polarity | Standard |
| Connector Type | SMA |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Panel Mounting | Surface Mount on PCB |
| Attachment Method | Solder |
| Frequency Range | DC~27GHz |
Performance Features
| VSWR： | DC~18GHz: 1.10:1 (Max) |
| 18GHz~27GHz:1.15:1 (Max) | |
| Contact resistance | Center Conductor≤3.0mΩ |
| Outer Conductor≤2.0mΩ | |
| Insulation resistance | ≥5000MΩ |
| Withstanding Voltage | 1000V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Brass |
| Gold Plated | |
| Centre Contact | Beryllium Copper |
| Gold Plated | |
| Insulators | PTFE |
