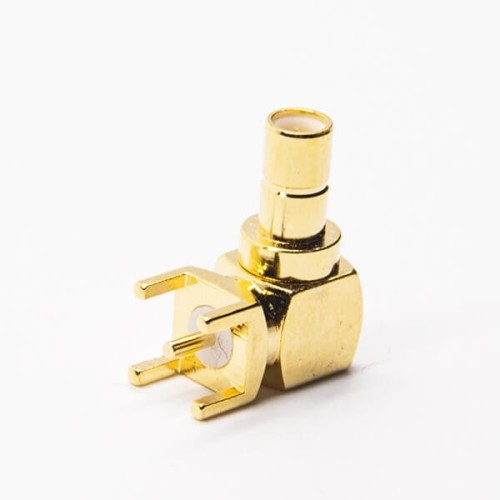

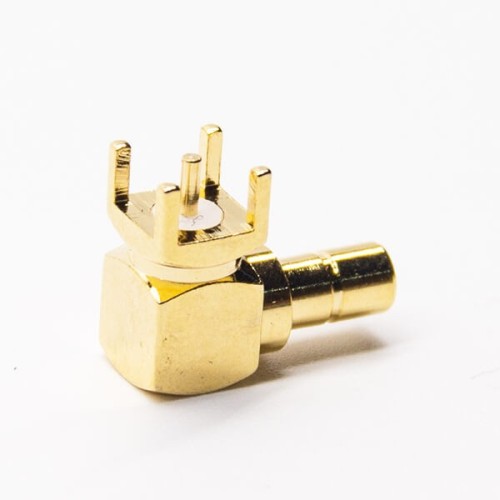

SMB Connector PCB Mount Female Angled Through Hole

SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
SMB Connector PCB Mount Female Angled Through Hole
  • Pcb Mount, Jack/female, Angled/90°, 50Ω, Through Hole;
  • Snap-on coupling design for fast installation;
  • With boardband performance and low reflection;
  • To reduce your Cost by using die casting process in non-critical areas.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of SMB Connectors:

Aerospace and Defense: Test Stands
Technology: Telemetry
Commercial Vehicle: GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications: Routers, WIFI, Radio Boards
Industrial: M2M Communications, Process Controls, Video Systems, Instrumentation



- Write a review
from
$2.35
Ex Tax: $2.35
10 or more $2.16
30 or more $2.00
50 or more $1.88
100 or more $1.76
200 or more $1.65
  • Stock: In Stock
  • Model: JE00001998
  • Weight: 0.41kg
  • SKU: JE00001998
Products Sold: 0
Product Views: 0
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics Through Hole
Gender Female
Function Other
Direction Right Angle
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method PCB Mount
Outer conductor connection Without
  • Description
SMB Connector PCB Mount Female Angled Through Hole

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range: 0~4 GHz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage:
    1000 V rms min for RG316, RG402
    750 V rms min. for RG178
  • Working Voltage:
    335 V rms max. for RG316, RG402
    250 V rms max. for RG178
  • Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance  1.5 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 1000 mΩ(Megohms min.)

Mechanical Characteristics

  • Coupling: Snap-on
  • Contact Retention: 4 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: -65°C ~ +155°C
  • Vibration: MIL-STD-202 Method204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

PartMaterialFinish
BodyBrassGold
Center Contact PinBrassGold
InsulatorTeflonNone
