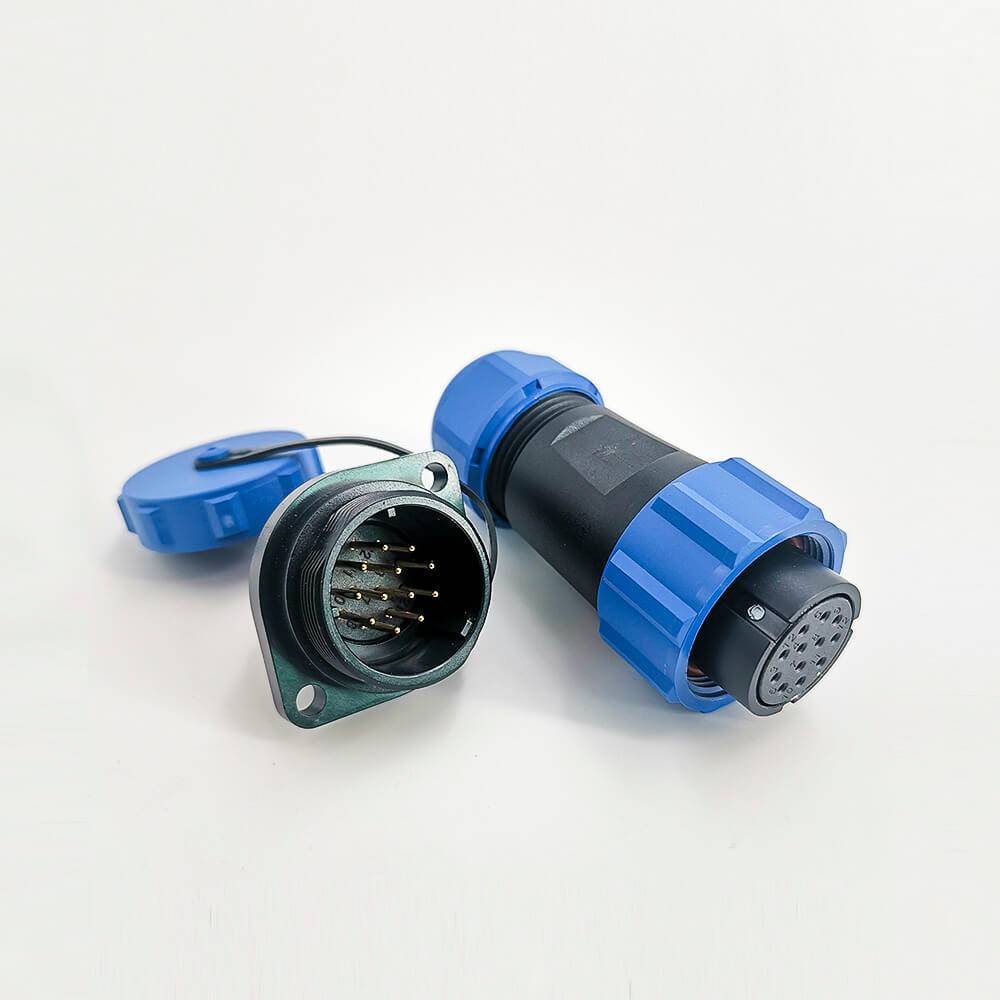

12 pin Waterproof Connector Plug Male & Female Socket 2 Holes Flange Panel Mount Solder Type SP21 Series

12 pin Waterproof Connector Plug Male & Female Socket 2 Holes Flange Panel Mount Solder Type SP21 Series
12 pin Waterproof Connector Plug Male & Female Socket 2 Holes Flange Panel Mount Solder Type SP21 Series

Features:

  • SP21 Series Connector,Straight,Male Plug,Female Socket,2 Hole Flange ,Panel Mount,Solder Contact,12 Pin
  • With its IP68 rating, each product is excellent within harsh environments
  • Easy quick connect and disconnect coupling
  • High cost-effective with good quality
- Write a review
from
$10.29
Ex Tax: $10.29
10 or more $9.47
30 or more $8.75
50 or more $8.23
  • Stock: In Stock
  • Model: JE00010934
  • Weight: 40.00g
  • SKU: JE00010934
Products Sold: 0
Product Views: 5
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Bulkhead/Solder Type
Connector Type one pair (Plug and Socket)
Gender Male and Female (one Pair)
Number of Positions 2 Pin
Direction Straight
Installation method Panel Mount / Cable
  • Description

Electrical Characteristics

  • Insulation resistance: 1500MΩ
  • Contact Resistance: 1MΩ/2.5MΩ/5MΩ
  • Rated Voltage: 500V/ 400V
  • Rated Current: 30A/15A/5A

Mechanical Characteristics

  • Mating Type: Thread coupling
  • Termination : Solder / Screw
  • Durability(mating): 500 cycles

Environmental Characteristics

  • Temprature Range:  -40°C ~ +85°C
  • IP Rating: IP68

Material :

  • Shell Material: PA66
  • Insert Material: PPS
  • Contact: Copper,Gold Plated
  • Contact Diameter: 3MM,2MM,1MM

12 pin Waterproof Connector Plug Male & Female Socket 2 Holes Flange Panel Mount Solder Type SP21 Series
