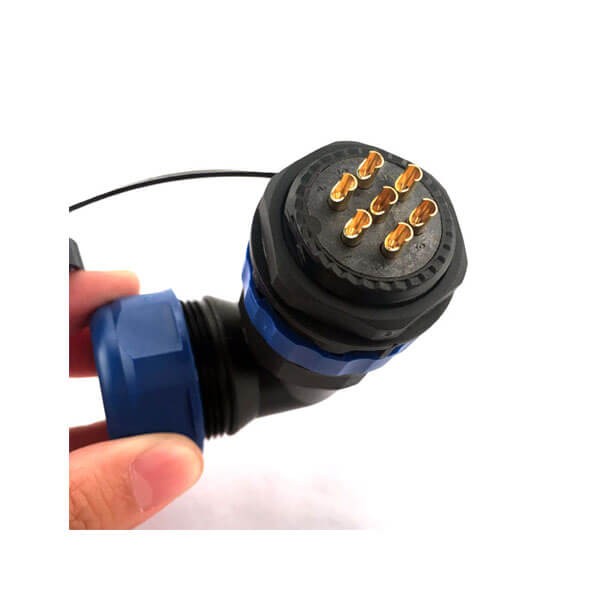

19 Pin Connectors IP67 SP29 Panel Mount Socket Right Angle Plug Type

19 Pin Connectors IP67 SP29 Panel Mount Socket Right Angle Plug Type
19 Pin Connectors IP67 SP29 Panel Mount Socket Right Angle Plug Type

Features:

  • SP29 Series Connector,Angled,Standard Type,Rear-nut Mount Socket and Right Angled Plug,Solder Contact,19 Pin
  • With its IP68 rating, each product is excellent within harsh environments
  • Easy quick connect and disconnect coupling
  • High cost-effective with good quality
- Write a review
from
$10.29
Ex Tax: $10.29
10 or more $9.47
30 or more $8.75
50 or more $8.23
  • Stock: In Stock
  • Model: JE00011177
  • Weight: 95.00g
  • SKU: JE00011177
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Bulkhead/Solder Type
Connector Type one pair (Plug and Socket)
Gender Male and Female (one Pair)
Number of Positions 19pin
Direction Right Angle
Installation method Panel Mount / Cable
  • Description

Electrical Characteristics

  • Insulation resistance: 1500MΩ
  • Contact Resistance: 0.5MΩ/1MΩ/2.5MΩ/5MΩ
  • Rated Voltage: 500V/ 400V
  • Rated Current: 50A/25A/10A/5A

Mechanical Characteristics

  • Mating Type: Thread coupling
  • Termination : Solder / Screw
  • Durability(mating): 500 cycles

Environmental Characteristics

  • Temprature Range:  -40°C ~ +85°C
  • IP Rating: IP68

Material :

  • Shell Material: PA66
  • Insert Material: PPS
  • Contact: Copper,Gold Plated
  • Contact Diameter: 3.5MM,2.5MM,1.5MM,1MM

19 Pin Connectors IP67 SP29 Panel Mount Socket Right Angle Plug Type

  • Reviews

There are no reviews for this product.
