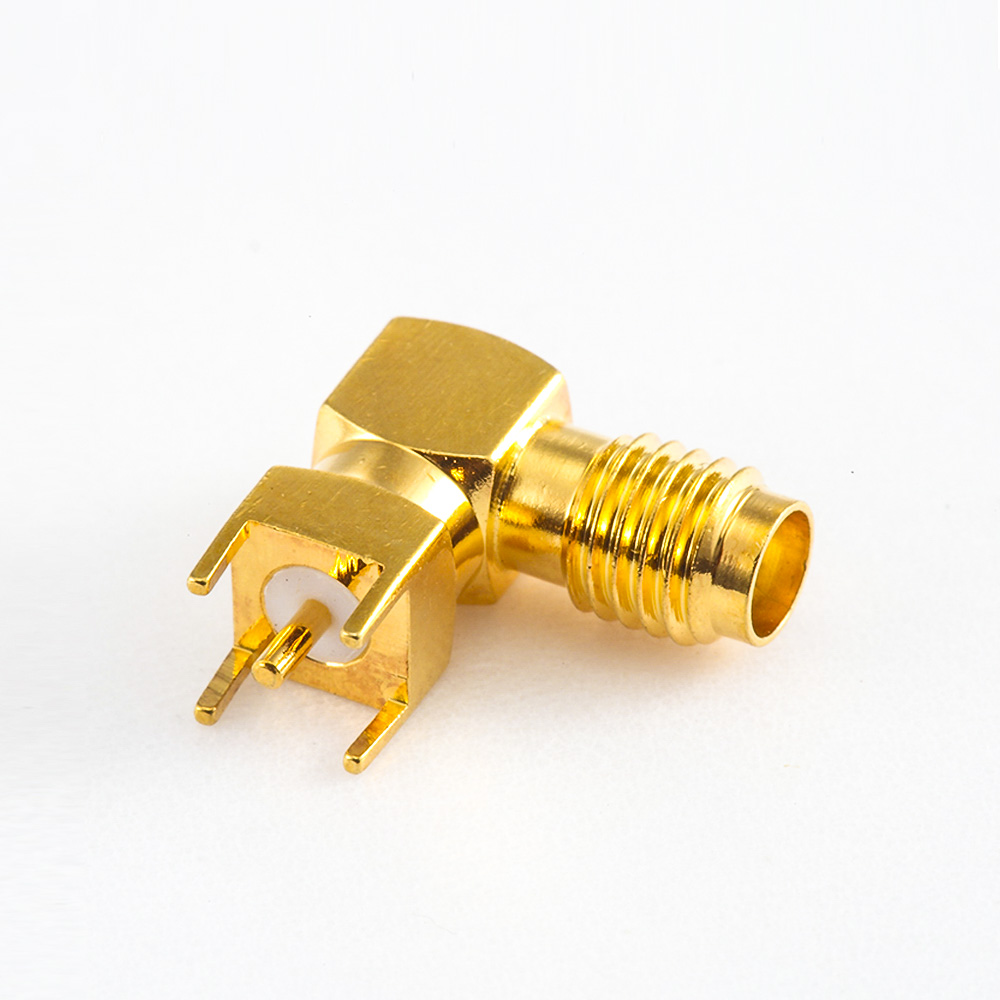

SSMA Connector Type Solder PCB Mount Female Right Angle Through Hole

SSMA Connector Type Solder PCB Mount Female Right Angle Through Hole
SSMA Connector Type Solder PCB Mount Female Right Angle Through Hole

Features:

  • SSMA Connector,Male/Plug,right angle/90°,Solded Type,Gold Plated;
  • Space saving alternative to standard SMA;
  • Straight jack and straight plug configurations available;
  • 50 Ohm nominal impedance;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$3.50
Ex Tax: $3.50
10 or more $3.22
30 or more $2.98
50 or more $2.80
100 or more $2.63
200 or more $2.45
  • Stock: In Stock
  • Model: JE00003216
  • Weight: 4.00g
  • SKU: JE00003216
Products Sold: 0
Product Views: 11
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Installation characteristics Through Hole
Gender Female
Direction Right Angle
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method PCB Mount
  • Description

Appliance:

  • Mil-Aero
  • Telecommunication
  • RFID
  • Antennas
  • Test and measurement
  • Radar systems

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range: DC-  14 GHz
  • Straight DC- 6 GHz:1.3
  • RF Leakage: - 128 dB DC - 1 GHz
  • Power Handling: .60kW - 10kW max
  • PIM: -160 dBc

Mechanical Characteristics

  • Engagement Force：15 N (3.37 lb) typical
  • Disengagement Force：10 N (2.25 lb) typical
  • Retention Force of Interface：550 N (123.65 lb) min
  • Connector Durability：500 mating cycles min

Environmental Characteristics

  •  Temperature Range：-65°C to +165°C

Material:

PartMaterialFinish
BodyBrassAu:1u"
Center Contact Pin TEFLONWhite
Insulator
PhosphorAu:3u"


SSMA Connector Type Solder PCB Mount Female Right Angle Through Hole
