SSMA Female Bulkhead Connector, 9.5mm / .375″ Square Flange w/ 2.8mm / .110″ Flat Pin
from
$20.00
Ex Tax: $20.00
5 or more $19.00
10 or more $18.00
- Stock: In Stock
- Model: JE00013214
- Weight: 0.03kg
- SKU: JE00013214
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Part Number: EB-DRF-0199

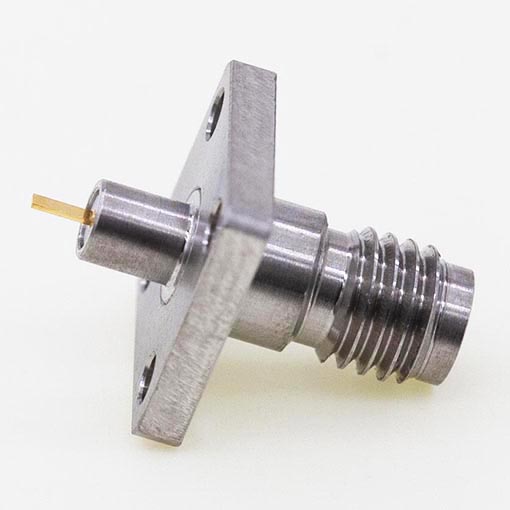

Description: SSMA Female Bulkhead Flange RF Connector, 9.5mm / .375″ Square Flange Jack with 2.8mm / .110″ Flat Pin Terminal.
This EB-DRF-0199, SSMA 4-hole female bulkhead flange RF connector with size 9.5mm / .375inch square flange jack & 2.8mm / 0.110inch flat pin terminal, frequency range from DC to 40GHz, 50Ω impedance, VSWR 1.20:1 (max) for DC~40GHz, 750V withstanding voltage, ≥1000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 40GHz
Applications
- General Purpose Test
- Bulkhead Flange RF Connection
- Rack and Panel Mount Application
- 2.8mm / .110inch Flat Pin Terminal
Key Features
| Polarity | Standard |
| Interface | SSMA |
| Connector Type | Jack |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | 4 Hole Flange |
| Attachment Method | Solder |
Performance Features
| Frequency Range | DC~40GHz |
| VSWR： | DC~40GHz: 1.20:1 (Max) |
| Contact Resistance | Centre Conductor ≤5.0mΩ |
| Outer Conductor ≤2.5mΩ | |
| Insulation Resistance | ≥1000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper |
| Gold Plated | |
| Insulators | PTFE & PEI |
