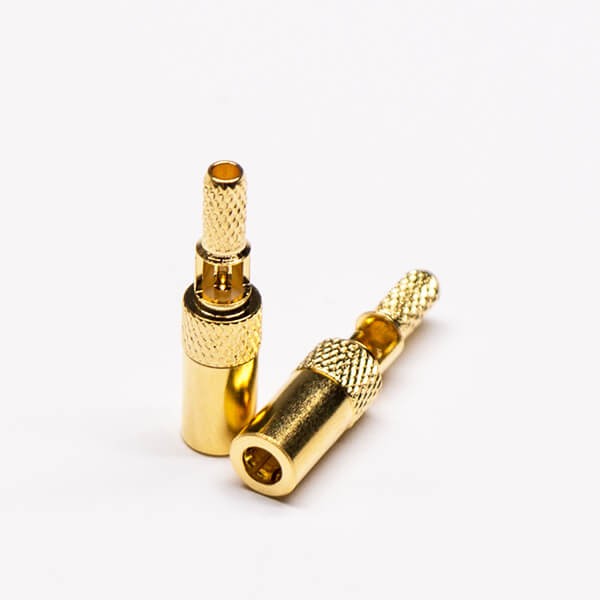

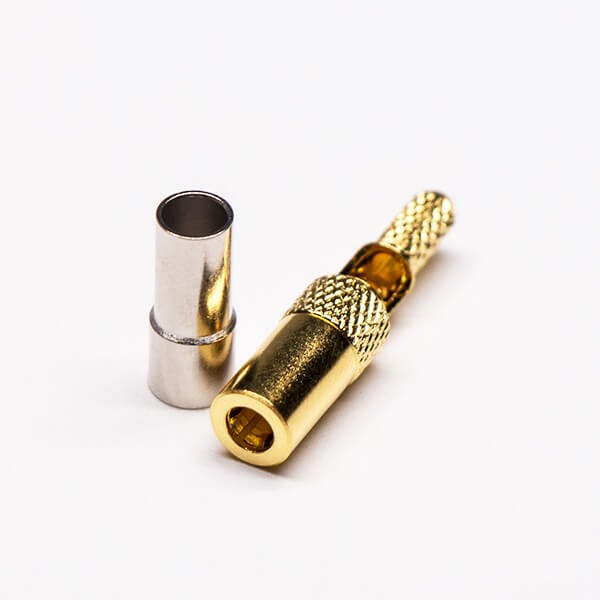

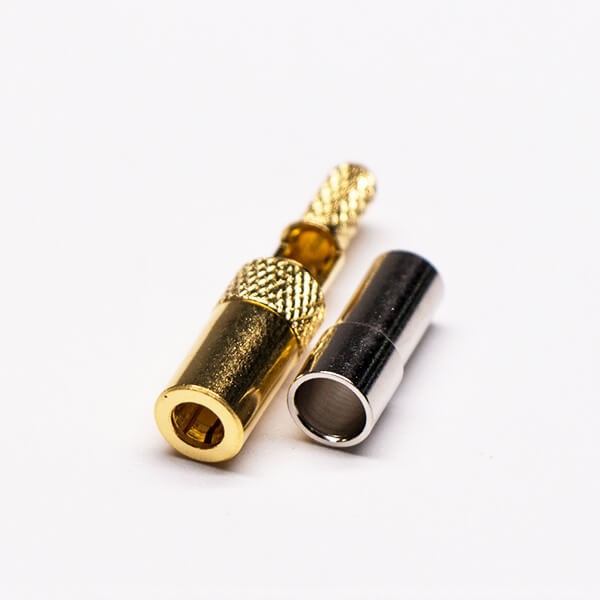

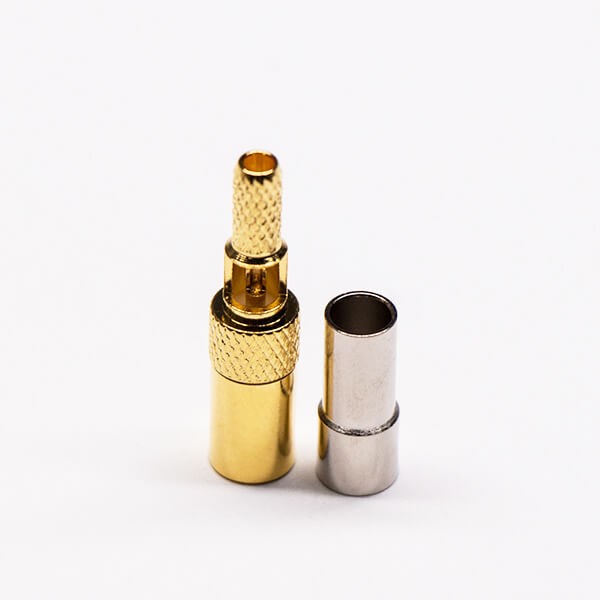

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy
20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

Features:

  • SSMB Connector,RF Coaxial Connector,Male,Straight/180°,Crimp Window Solder;
  • Lightweight and space saving alternative to SMB;
  • Snap-on interface for quick and easy installation;
  • 50 Ohm options available;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$63.90
Ex Tax: $63.90
  • Stock: In Stock
  • Model: JE00003247
  • SKU: JE00003247
Products Sold: 0
Product Views: 6
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Zinc Alloy
Terminal type Solder Type
Installation characteristics None
Gender Male
Function Other
Direction Straight
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method Cable
Outer conductor connection Crimp Window Solder
  • Description

Main Application of SSMA Connectors:

  • Military
  • Instrumentation
  • PC/LAN
  • Wireless

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range: DC-  14 GHz
  • Straight DC- 3 GHz:   1.05
  • RF Leakage:  -80 dB to 3 GHz (-70 dB to 6GHz)
  • Power Handling:125 W at 40⁰C

Mechanical Characteristics

  • Engagement Force: 25 N (5.6 lb) typical
  • Disengagement Force: 20 N (4.5 lb) typical
  • Connector Durability: 500 mating cycles min

Environmental Characteristics

  •  Temperature Range: -65⁰C to +165⁰C

Material:

PartMaterialFinish
BodyBrassAu:1u"
insulatorTEFLONWhite
Center Contact PinPhosphorAu:3u"

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

20pcs RF Coaxial Connector SSMB Type Male Straight Crimp Window Solder Zinc Alloy

  • Reviews

There are no reviews for this product.
