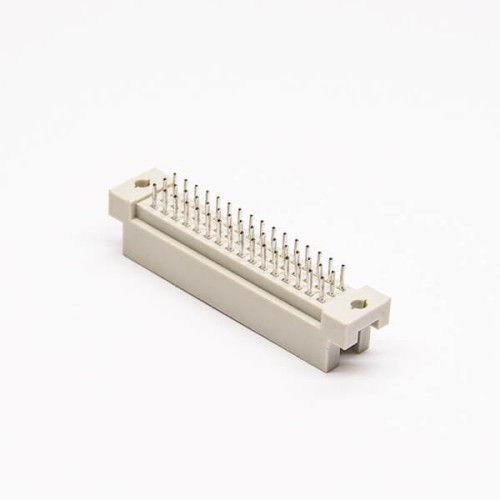

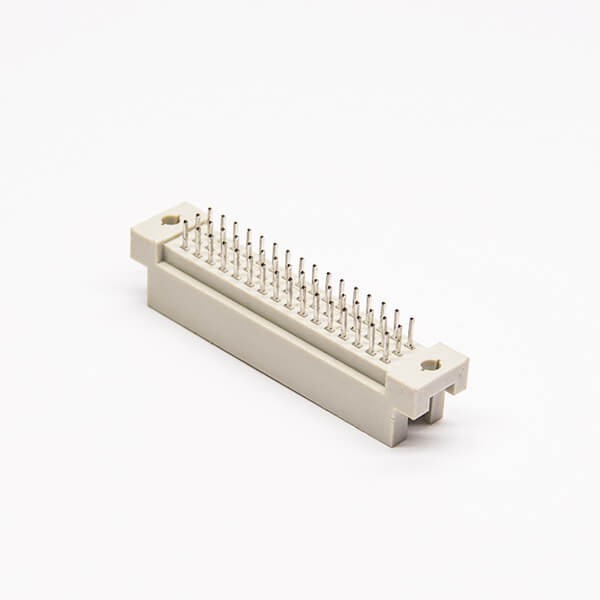

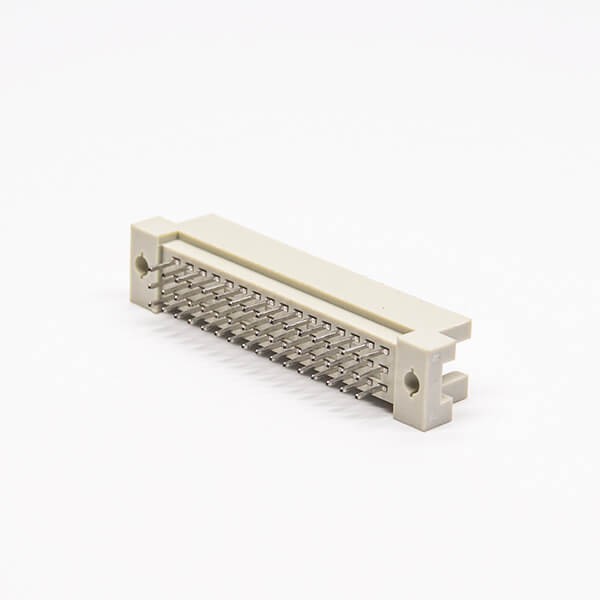

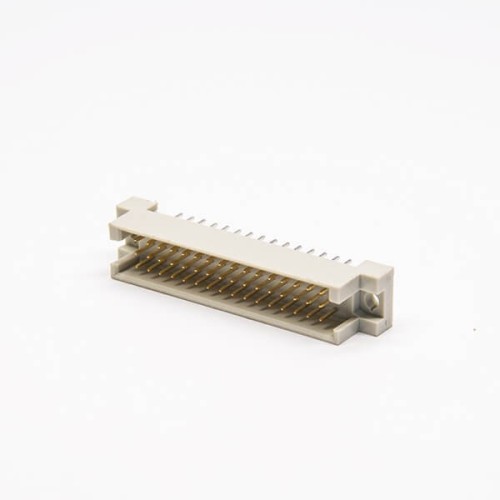

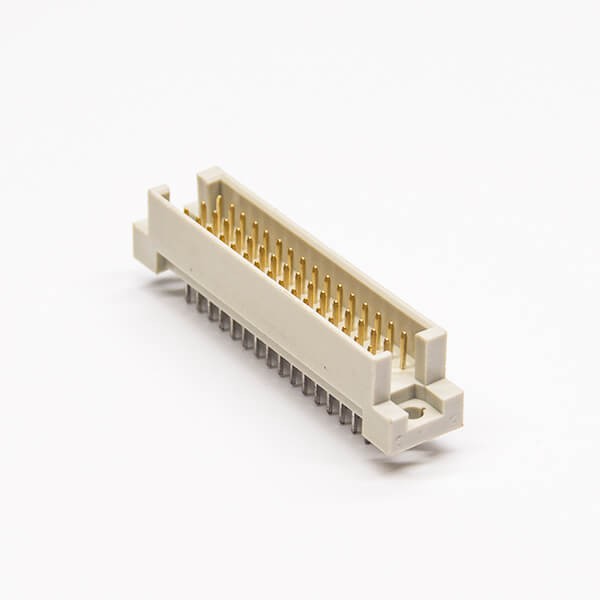

Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles

Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles
Straight Din 41612 Connector 48 Pin Straight A+B+C Three Rows Pcb Mount Male Panel Receptacles

Features:

  • DIN41612,Panel Receptacles,Male, Straight,PCB Mount,Through Hole,Solder Type,48 Pin,A+B+C Three Rows
  • conforming to DIN 41612 and IEC 603-2 specifications.
  • Available up to 3 rows and 96 positions with Solder,Press-fit and pin-in Paste terminations.
  • Commonly used to carry audio and video signals.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application

  • Switching/Routing、Enterprise、Transmission
  • Home Entertainment、White Goods、Phones
  • Servers、Personal Computing、Peripheral Device
  • Technology、Lighting、Process Control
  • Transportation、Instrumentation、Vehicle Electronics、Energy Transmission/Distribution Control
- Write a review
from
$0.89
Ex Tax: $0.89
10 or more $0.82
30 or more $0.76
50 or more $0.71
100 or more $0.67
200 or more $0.62
  • Stock: In Stock
  • Model: JE00009583
  • SKU: JE00009583
Products Sold: 0
Product Views: 2
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Through Hole
Gender Male
Number of Positions 48pin
Continuous plating Gold
Direction Straight
Number of Rows 3
Spacing 2.54mm
Installation method PCB Mount
  • Description

Electrical Characteristics

  • Current Rating at 20ºC: 1.5 Amp
  • Insulation Resistance: ≥ 106 MΩ
  • Contact Resistance: ≤ 20mΩ
  • Dielectric Withstanding: 1000V
  • Creepage and Clearance Distance: ≥ 1.2mm

Mechanical characteristics

  • Mating Insertion Force per Contact: ≤ 0.94N
  • Mating Extraction Force per Contact: ≥ 0.15N
  • Contact Retention in Insulator: ≥ 20N

Environmental and Processing

  • Operating Temperature: -55ºC to +125ºC
