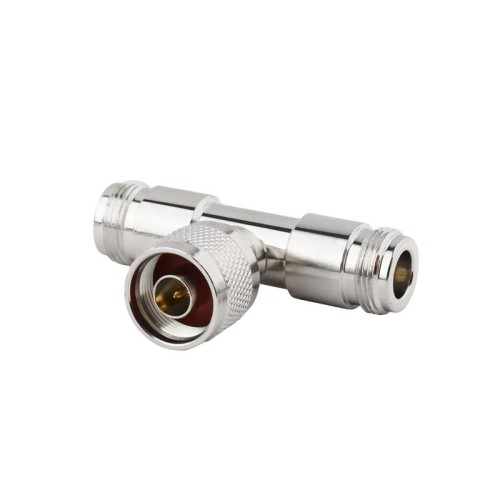

T-shaped N Female to Male 1 to 2 Adapter N Type Converter 3 Way
- Adapter,N Connector,T Type;
- Great performance with DC to 11GHz Frequency and 50 ohm impedance;
- Threaded coupling mechanism ensure durability and stability for vibration application;
- Medium size used in military, industry or consumption electronic area, etc;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of N Connectors:
- Aerospace and Defense: Radar Equipment
- Technology: Ablation equipment
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
- Data/Communications: Broadcast Electronics, Wifi
- Industrial: Machine to Machine Communications
from
$3.69
Ex Tax: $3.69
10 or more $3.39
30 or more $3.14
50 or more $2.95
100 or more $2.77
- Stock: In Stock
- Model: JE00002063
- Weight: 25.00g
- SKU: JE00002063
Products Sold: 0
Product Views: 3
Ask a Question About This Product
- Specifications
attribute-list | |
Body Material | Cooper |
Gender | Male to Female |
Direction | T type |
Polarity | Standard |
Coating | Nickel Plating |
- Description
Electrical Characteristics
- Impedance:50 ohm
- Frequency Range: 0~11 Ghz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 2500 V rms
- Working Voltage: 1000 V rms
- Center Contact Resistance ≦ 1.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 0.2 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
- Coupling: 5/8-24 thread
- Contact Retention: 6 lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range: -55°C ~ +155°C ( PE Cable-40°C ~ +85°C )
- Vibration: MIL-STD-202 Method204
- Corrosion resistance: MIL-STD-202 Method 101
Material:
Part | Material | Finish | |
Body | Brass | Nexcote | |
Contact Pin | Brass | Gold | |
Insulator | PTFE | Natural |
