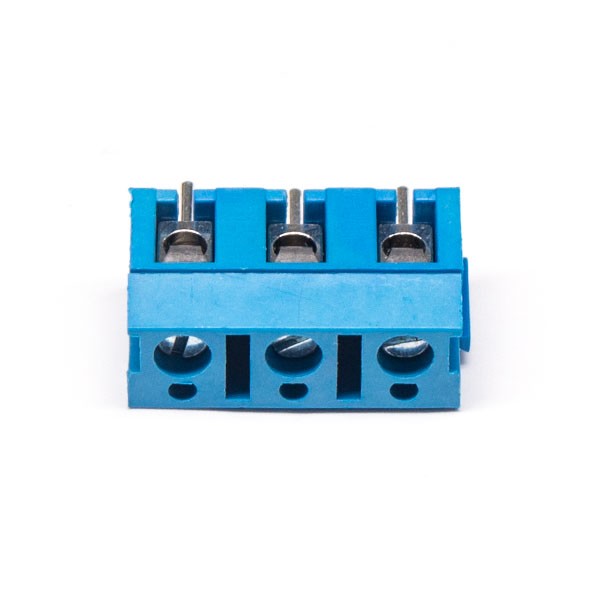

PCB Blue Terminal Block Straight 3pin Connector for PCB
Product features:
- PCB universal screw terminal,Straight,Blue,3pin,250V,16A,7.50mm,Through Hole,Screw Clamping
- three type to insert lines,design with monolayer,double decks,and three decks
- give morechoices for connvenient use.
- PCB Mount Universal Screw Terminal Blocks Assortment Kit
Main Application
- Computer, telecommunications, network communication
- Industrial electronics, transportation, aerospace
- Technology equipment and automotive industry
from
$0.39
Ex Tax: $0.39
- Stock: In Stock
- Model: JE00008434
- SKU: JE00008434
Products Sold: 0
Product Views: 6
Ask a Question About This Product
- Specifications
attribute-list | |
Insulator Colour | Blue |
Number of Positions | 3 pin |
Wiring Type | Screw Clamping |
Direction | Straight |
Spacing | 7.5mm |
Current | 16A |
Installation method | PCB Mount |
Voltage | 250V |
- Description
Electrical Characteristics
- Rated voltage: 300V
- Rated current: 10A 15A 20A 30A
- Withstanding voltage: AC1250V/1Min
- Wire range: 26-18AWG 1.0mm
Mechanical Characteristics
- Torque: 0.1Nm(0.89Lb-In.)
Environmental Characteristics
- Temperature range:-40°C ~ +105°C
Material
- Screw:M2,Steel,Zinc plated
- Reed:Brass,Ni plated
- Pin header:Brass,Tin plated
- Housing: PA66,UL94V-0
