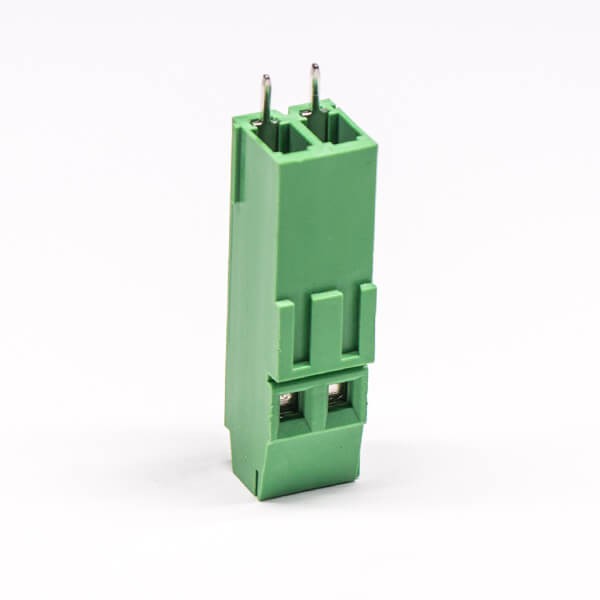

PCB Screw Terminal Block Connector 2pin Straight Through Hole Green

PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green
PCB Screw Terminal Block Connector 2pin Straight Through Hole Green

Product features:

  • PCB universal terminal,Green,Straight,2pin,300V,10A,3.50/3.81mm,Through Hole,Screw Clamping
  • three type to insert lines,design with monolayer,double decks,and three decks
  • give morechoices for connvenient use.
  • PCB Mount Universal Screw Terminal Blocks Assortment Kit

Main Application

  • Computer, telecommunications, network communication
  • Industrial electronics, transportation, aerospace
  • Technology equipment and automotive industry
from
$0.43
Ex Tax: $0.43
  • Stock: In Stock
  • Model: JE00008453
  • SKU: JE00008453
Products Sold: 0
Product Views: 2

Available Options

  • Specifications
attribute-list
Insulator Colour green
Number of Positions 2 Pin
Wiring Type Screw Clamping
Direction Straight
Spacing 3.50mm/3.81mm
Current 10A
Installation method PCB Mount
Voltage 300V
  • Description

Electrical Characteristics

  • Rated voltage: 300V
  • Rated current: 10A 15A  20A 30A
  • Withstanding voltage: AC1250V/1Min
  • Wire range: 26-18AWG 1.0mm

Mechanical Characteristics

  • Torque: 0.1Nm(0.89Lb-In.)

Environmental Characteristics

  • Temperature range:-40°C ~ +105°C

Material

  • Screw:M2,Steel,Zinc plated
  • Reed:Brass,Ni plated
  • Pin header:Brass,Tin plated
  • Housing: PA66,UL94V-0
