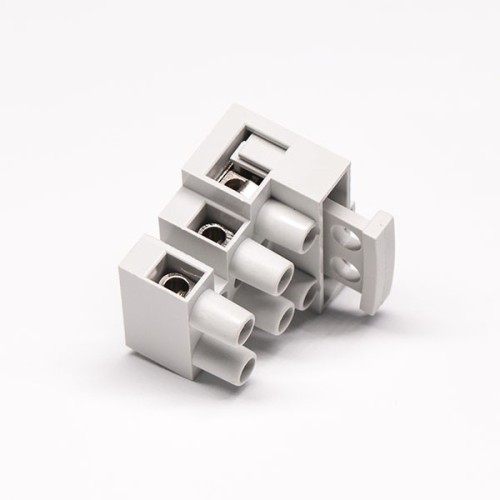

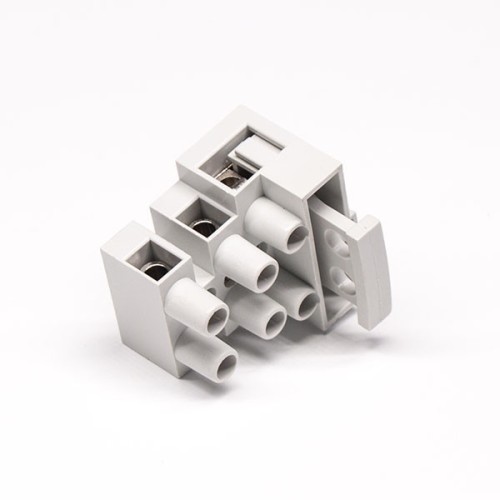

Terminal Connector Strips Grey 90 Degree Soder Type Cable Connector
Product features:
- Terminal Strips,Angled,Grayish white,450V,10A,12.1mm,Panel Mount,Soder Type
- without fuse,connecting with two conductors easily and credibility;
- High temp and IR reflow compatible versions are available;
- supplied with open screws which shortens the time for connection
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application
- Industrial controls
- HVAC equipment and controls
- Communications equipment
- Test and measurement
- Fire and security
from
$7.50
Ex Tax: $7.50
- Stock: In Stock
- Model: JE00008526
- Weight: 14.20g
- SKU: JE00008526
Products Sold: 0
Product Views: 10
Available Options
Ask a Question About This Product
- Specifications
attribute-list | |
Insulator Colour | Grayish white |
Wiring Type | Solder Type |
Direction | Right Angle |
Spacing | 12.1mm |
Current | 10A |
Installation method | Panel Mount |
Voltage | 450V |
- Description
Electrical Characteristics
- Rate voltage:300V,450V,750V
- Rate current:10A,17.5A,20A,30A,50A,57A
- Contact resistance:20MΩ
- Insulation resistance:5000MΩ/DC500V
- Withstanding voltage:AC2500V/1Min
- Wire range:22-14AWG 0.5-2.5mm2
Mechanical Characteristics
- Torque:0.5Nm 4.43Lb.in
Environmental Characteristics
- Temperature range:-40°C ~ +110°C
- MAX soldering:+250oC for 5 sec
Material
- Screw:M2.5,M3.0,M3.5,M4.0
- Terminal:Brass,Ni plated
- Housing: Nylon PA66,UL94V-2,PA66.UL94-0
