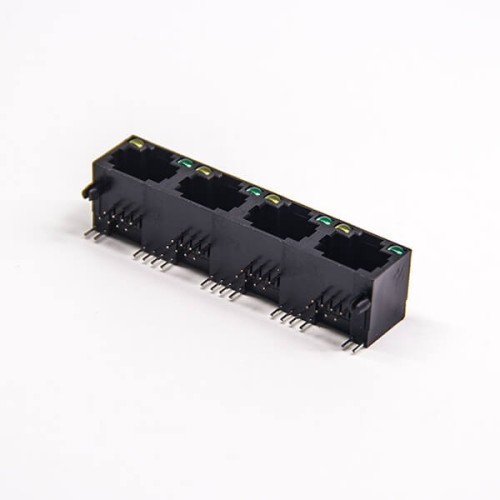

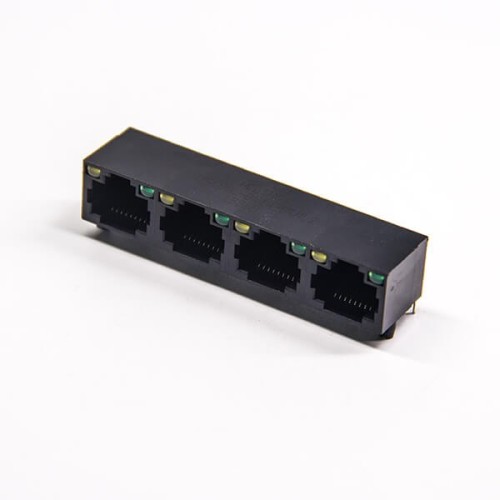

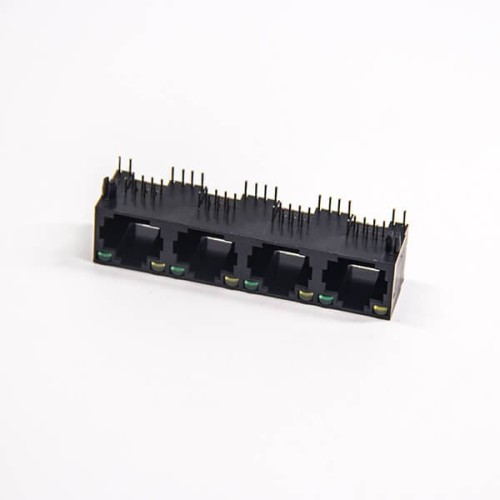

Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds

Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds
Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds
Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds
Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds
Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds
Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds
Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds

Features:

  • RJ45 Jack,8p8c,4 Port,1*4,Angled,Gold,Through Hole,PCB Mount,Unshieled,with LED,without Filtered
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$0.99
Ex Tax: $0.99
  • Stock: In Stock
  • Model: JE00006313
  • Weight: 10.57g
  • SKU: JE00006313
Products Sold: 0
Product Views: 2
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Connector Type Socket
Shield Unshielded
Number of contacts 8p8c
Continuous plating Gold
Direction Right Angle
LED Yes
Number of Rows 1×4
Filter No
Waterproof level Not Waterproof
Port number 4
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

PartMaterialFinish
HousingNylon 46 glass filledUL94V-0
ShieldCopper AlloyNickel Plating
ContactCopper AlloyAu over nickel

Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds

Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds

Through Hole RJ45 Connector with Led 8p8c Muti-port 1×4 Black with leds
