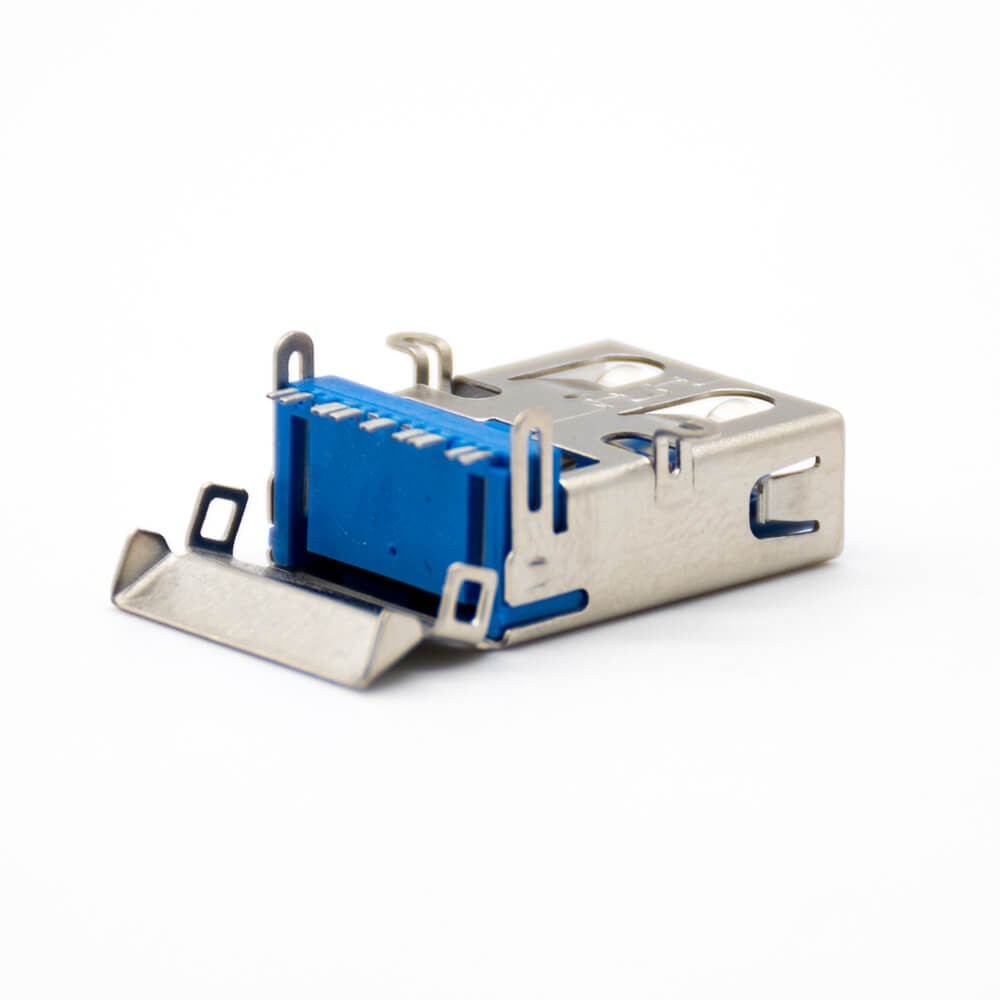

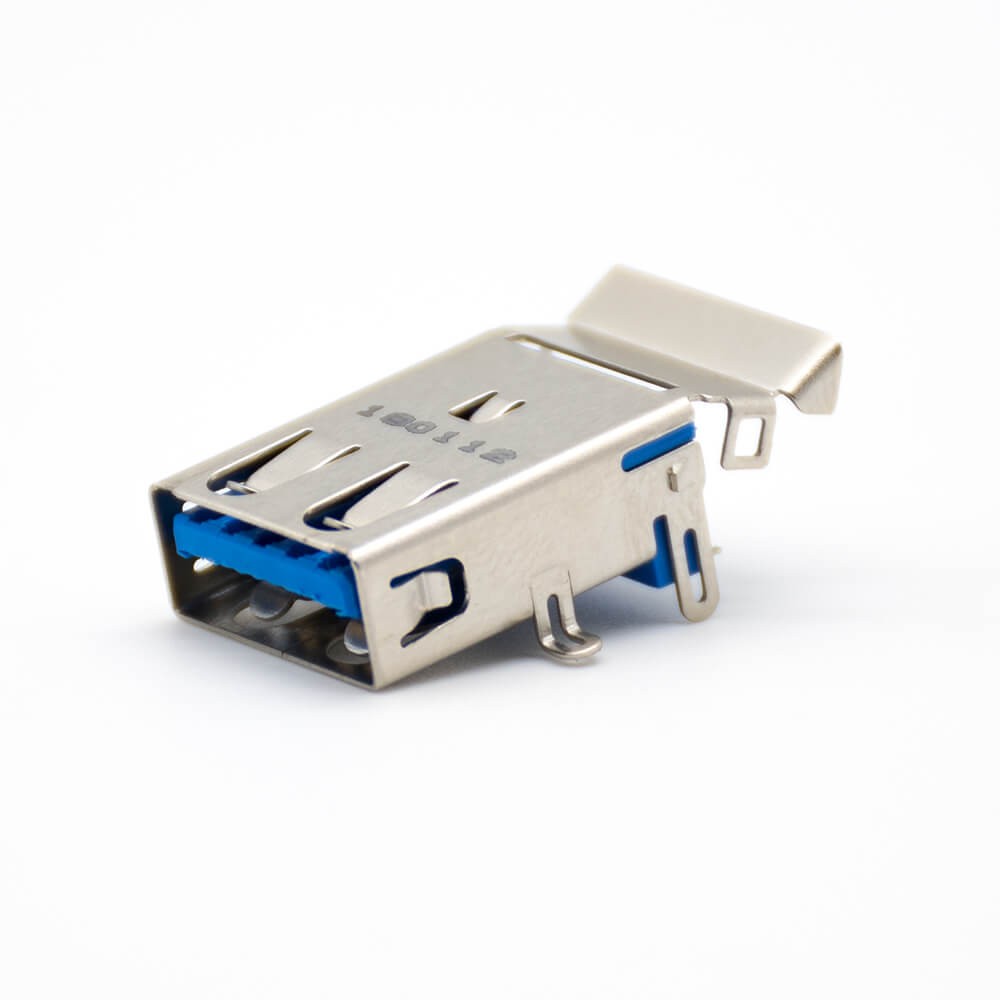

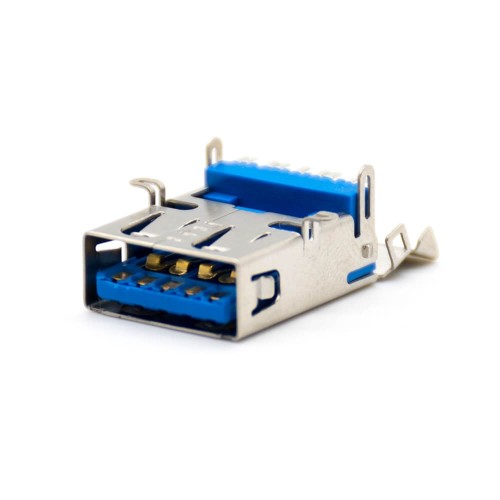

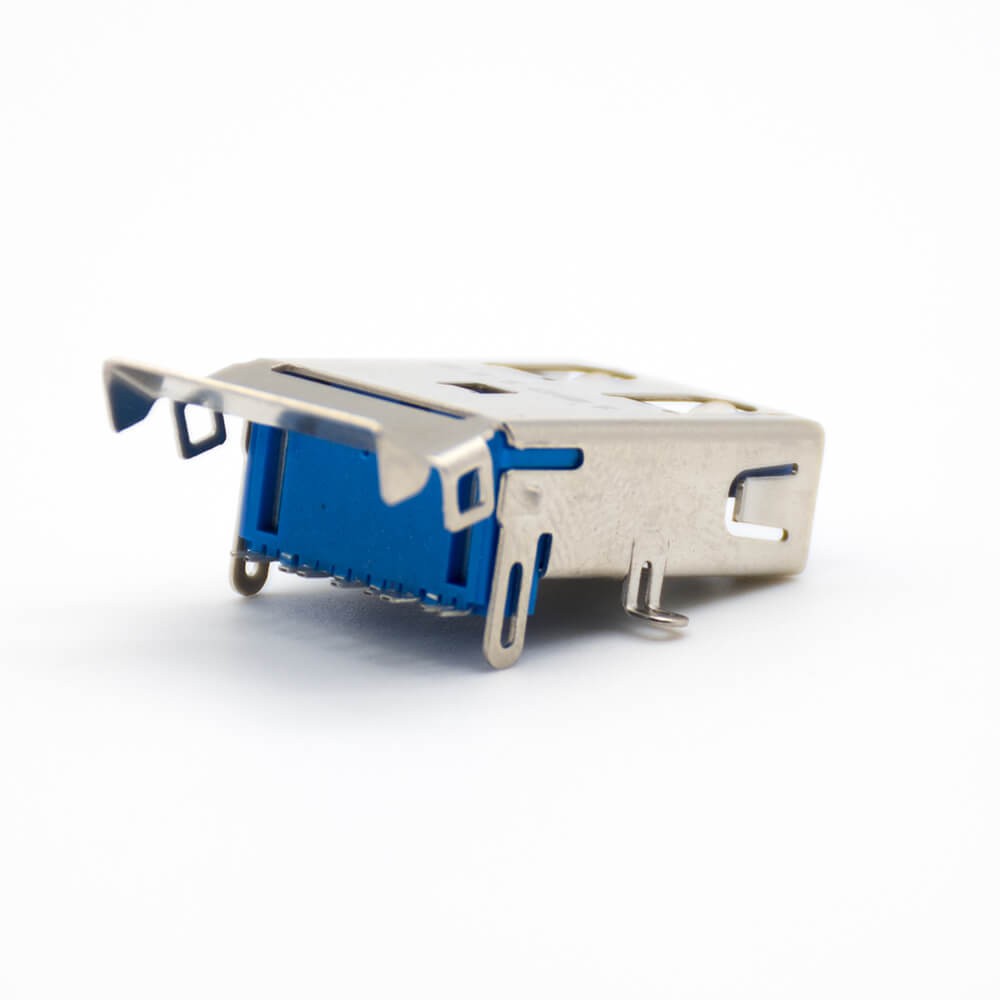

Type A 9 Pin Female USB3.0 SMT Connector
from
$0.69
Ex Tax: $0.69
10 or more $0.63
30 or more $0.59
50 or more $0.55
100 or more $0.52
200 or more $0.48
- Stock: In Stock
- Model: JE00005790
- Weight: 0.05kg
- SKU: JE00005790
Products Sold: 0
Product Views: 5
Ask a Question About This Product
- Description
Applications:
- Desktop Computer and Motherboard
- Notebook
- Memory Card Reader
- Set top box
- Consumer Solid State Drives
- LCD TV Panel
- Music Synthesizer
Electrical Characteristics
- Contact Resistance:30Ω Maximum
- Contact Current Rating:1.50A
- Dielectric Withstanding Voltage:100V R.M.S
- Insulation Resistance 1000 Megohms Min
- Operating Temperoture:-45°C ~ +80°C
Mechanical Characteristics
- Mating Force:3.57kg Max
- Unmating Force:1.02kg Min
Environmental Characteristics
- Operating Temperature：-45°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | UL94V-0 |
| Shell | Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
