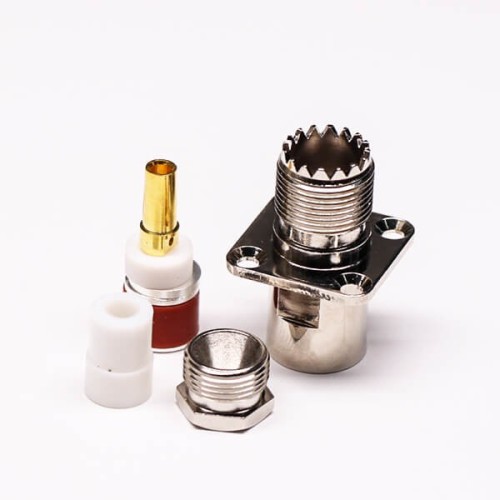

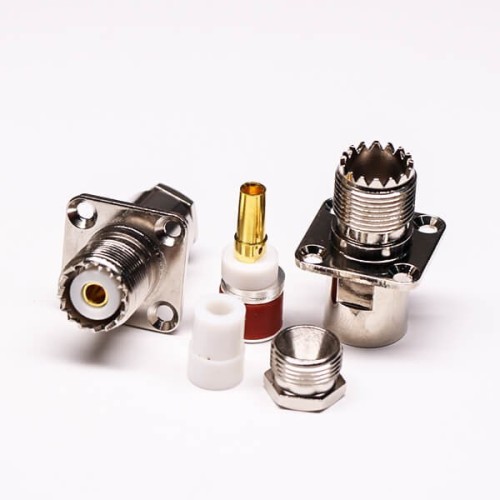

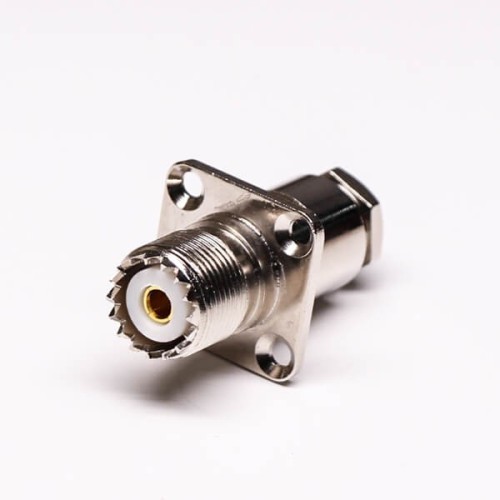

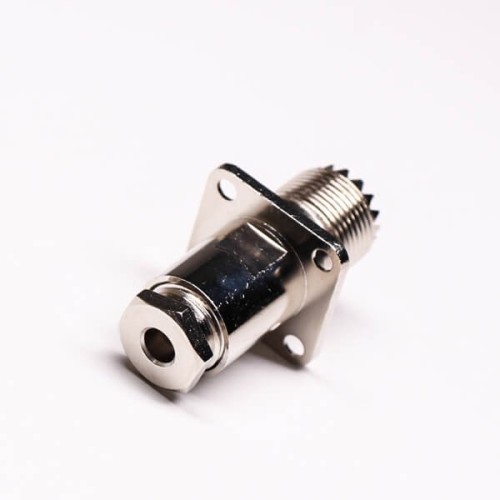

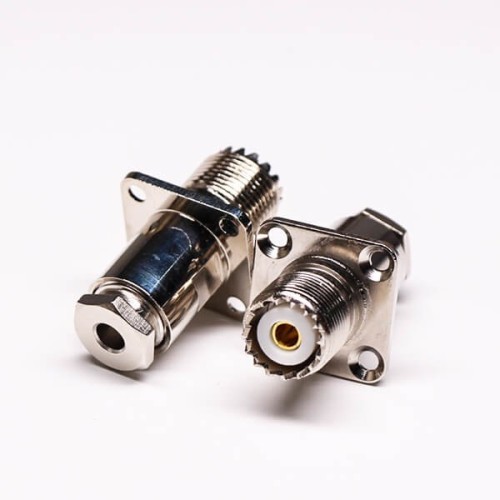

UHF Female Connector Straight 4 Hole Flange Clamp Type for Cable
from
$4.18
Ex Tax: $4.18
10 or more $3.85
30 or more $3.55
50 or more $3.34
100 or more $3.14
- Stock: In Stock
- Model: JE00002833
- Weight: 42.70g
- SKU: JE00002833
Products Sold: 0
Product Views: 10
Ask a Question About This Product
- Description
Applications:
- Antennas, Military, Public Address Systems and Low-frequency applications
Electrical Characteristics
- Impedance：Non-constant
- Frequency Range: 0~300MHz
- voltage Rating: 500 volts peak
Mechanical Characteristics
- Coupling: 5/8-24 threaded coupling
- Cable Affixment: Braid Solder, Set screw, clamp and crimp
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range:
Mica-filled phenolic insulators: -55°C ~ +149°C
Copolymer of styrene and polystyrene: -55°C ~ +85°C
TFE insulators: -65°C ~ +165°C - Weatherproof: Except as noted, all UHF series are non-weatherproof
Material:
| Part | Material | Finish |
| Housing | Brass | Ni |
| Contact | Phosphor Bronze | Au |
