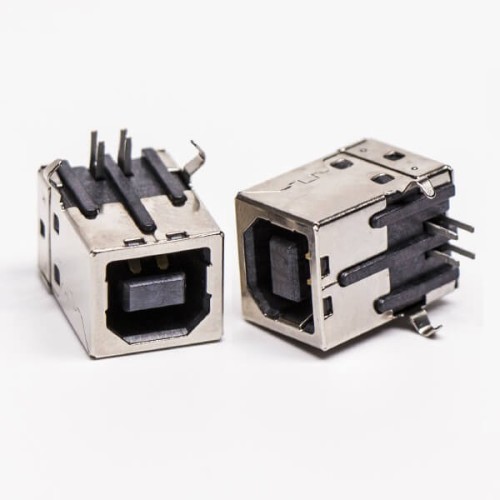

USB 2.0 Type B Female Female Right Angled Through Hole 20pcs

Applications:

• Servers
• External Storage Systems
• Supercomputers
• Computers, laptops, servers
• Printers, external drive units, monitors
• Digital cameras, TV

Electrical Characteristics

• voltage Rating: 30V AC (rms)
• Current Rating: 1.0A MAX
• Contact Resistange: 30 milliohms max
• Insulation Resistange: 1000 megohms min
• Dielectric Withstanding Voltage: 500 V DC/1min

Mechanical Characteristics

• Mating force: 3.57 kgf max
• UNmating force: 1.0 kgf min

Environmental Characteristics

• Operating Temperature：-40°C~ + 85°C

Material:
