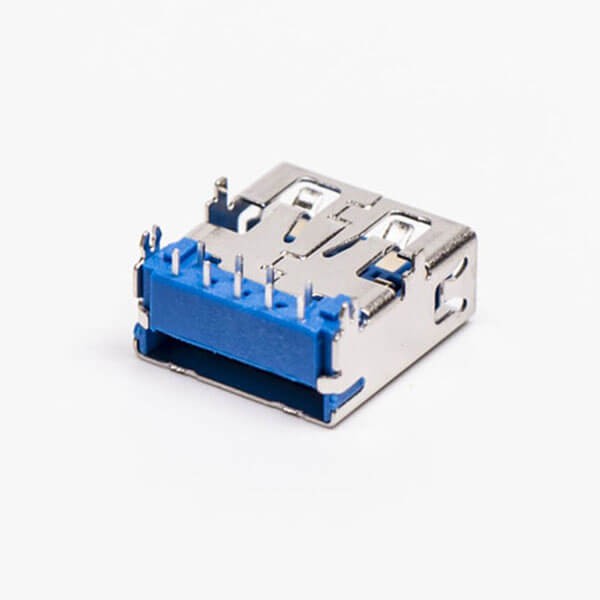

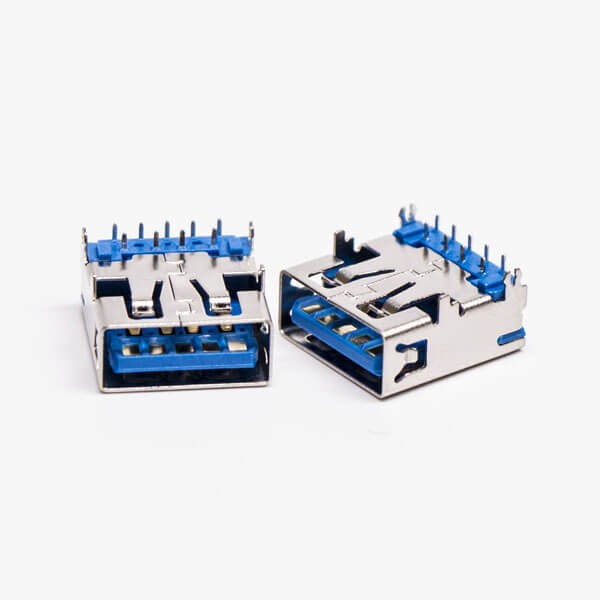

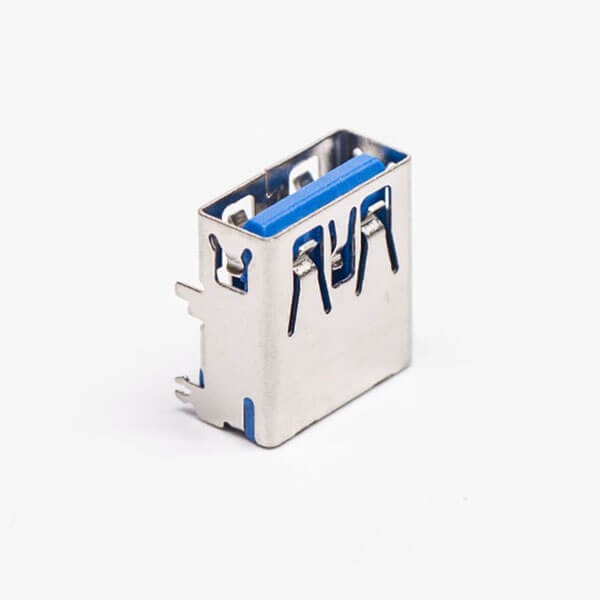

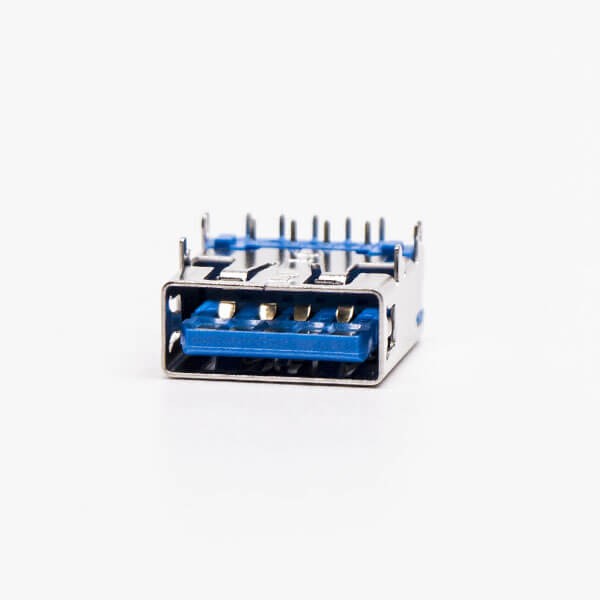

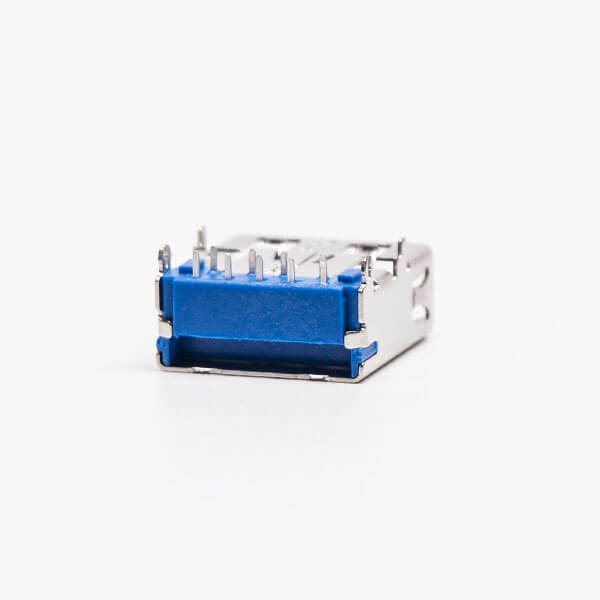

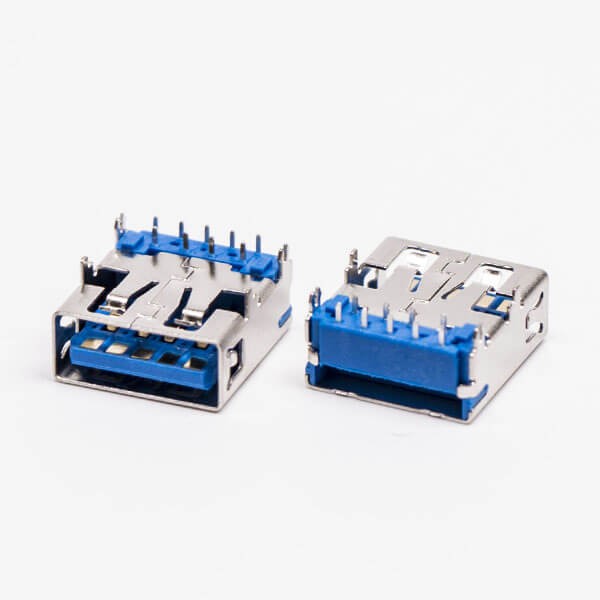

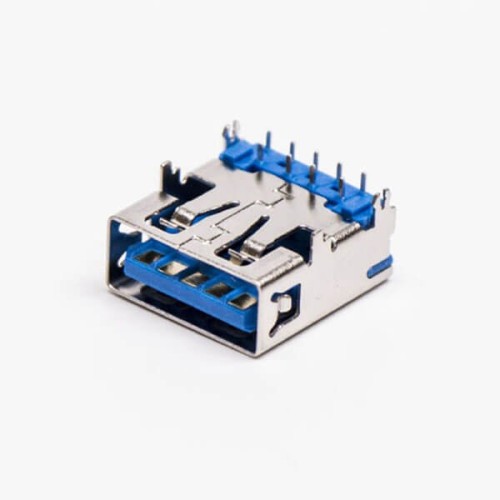

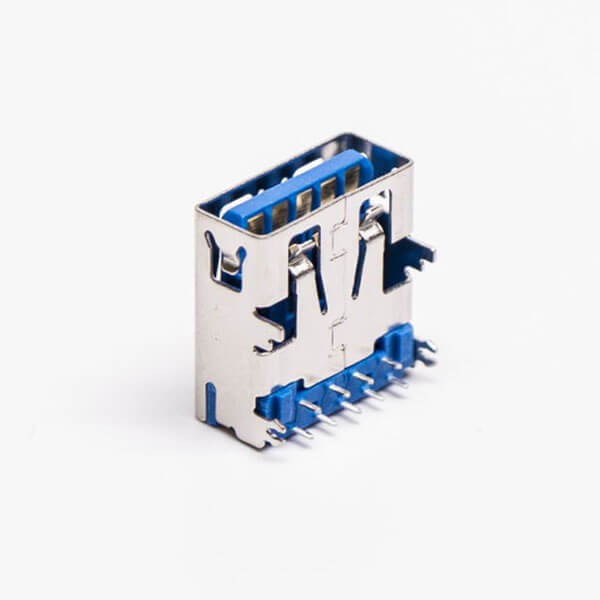

USB 3.0 Right Angled Type A Female DIP Harpoon for PCB Mount

Applications:

• Desktop Computer and Motherboard
• Notebook
• Memory Card Reader
• Set top box
• Consumer Solid State Drives
• LCD TV Panel
• Music Synthesizer

Electrical Characteristics

• Contact Resistance:30Ω Maximum
• Contact Current Rating:1.50A
• Dielectric Withstanding Voltage:100V R.M.S
• Insulation Resistance 1000 Megohms Min
• Operating Temperoture:-45°C ~ +80°C

Mechanical Characteristics

• Mating Force:3.57kg Max
• Unmating Force:1.02kg Min

Environmental Characteristics

• Operating Temperature：-45°C~ + 85°C

Material:
