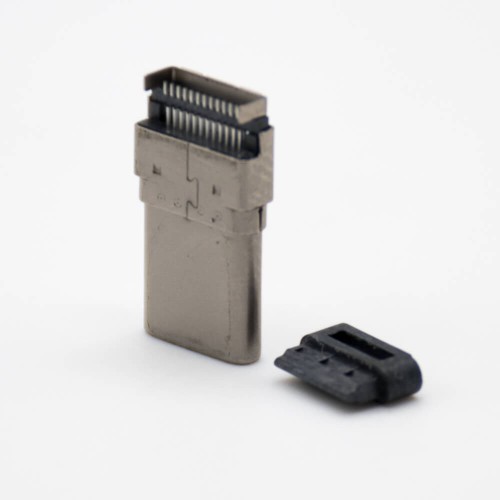

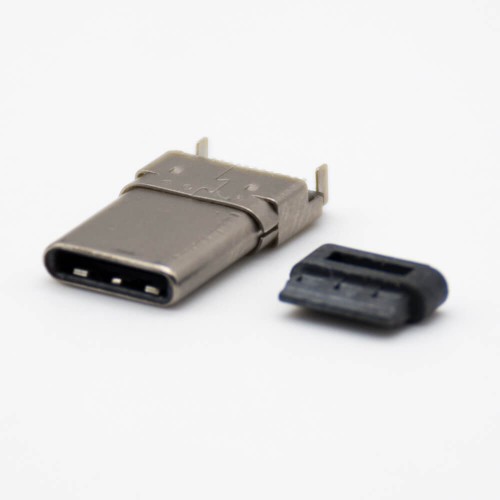

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

Features:

  • Type-C,USB3.1,Male,Straight,24 Pin,Plate Offset Type,Solder Type,IP67
  • Reversible plug and cable orientation for better user experience；
  • Smaller connector size saves space；
  • Easy and Quick usage；
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$1.49
Ex Tax: $1.49
10 or more $1.37
30 or more $1.27
50 or more $1.19
100 or more $1.12
200 or more $1.04
  • Stock: In Stock
  • Model: JE00005703
  • Weight: 0.93g
  • SKU: JE00005703
Products Sold: 0
Product Views: 4

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Surface Mount / Offset Type
Connector Type Type C
Gender Male
Number of Positions 24pin
Waterproof level IP67
Port number Single
Standard USB 3.0
Installation method PCB Mount
  • Description

Applications:

  • Industrial machinery
  • Technology devices
  • Hard Disk Drives
  • Flash Disk
  • Mobile Phone/Tablet
  • VR Camera
  • Charger
  • Car Media Player/Hub

Electrical Characteristics

  • voltage Rating: 5V AC
  • Contact Rating:5.0A
  • Contact Resistance: 40 milliohms max
  • Insulation Resistance: 100 megohms
  • Withstanding Voltage: 100V AC

Mechanical Characteristics

  • Mating force: 5N to 20N
  • UNmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature：-30°C~ + 85°C

Material:

PartMaterialFinish
Housing High Temperature PolymerUL94V-0, Black
ShellStainless Steel------
ContactCopper Alloy
------

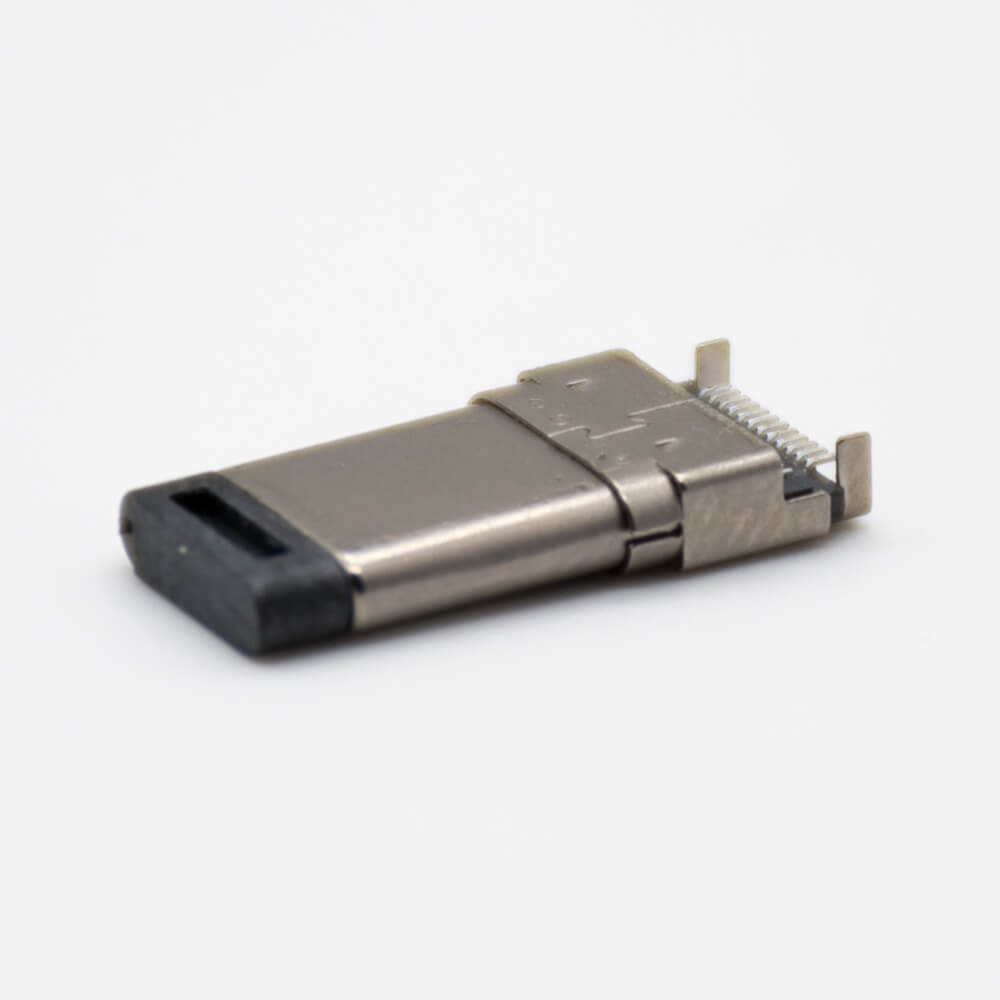

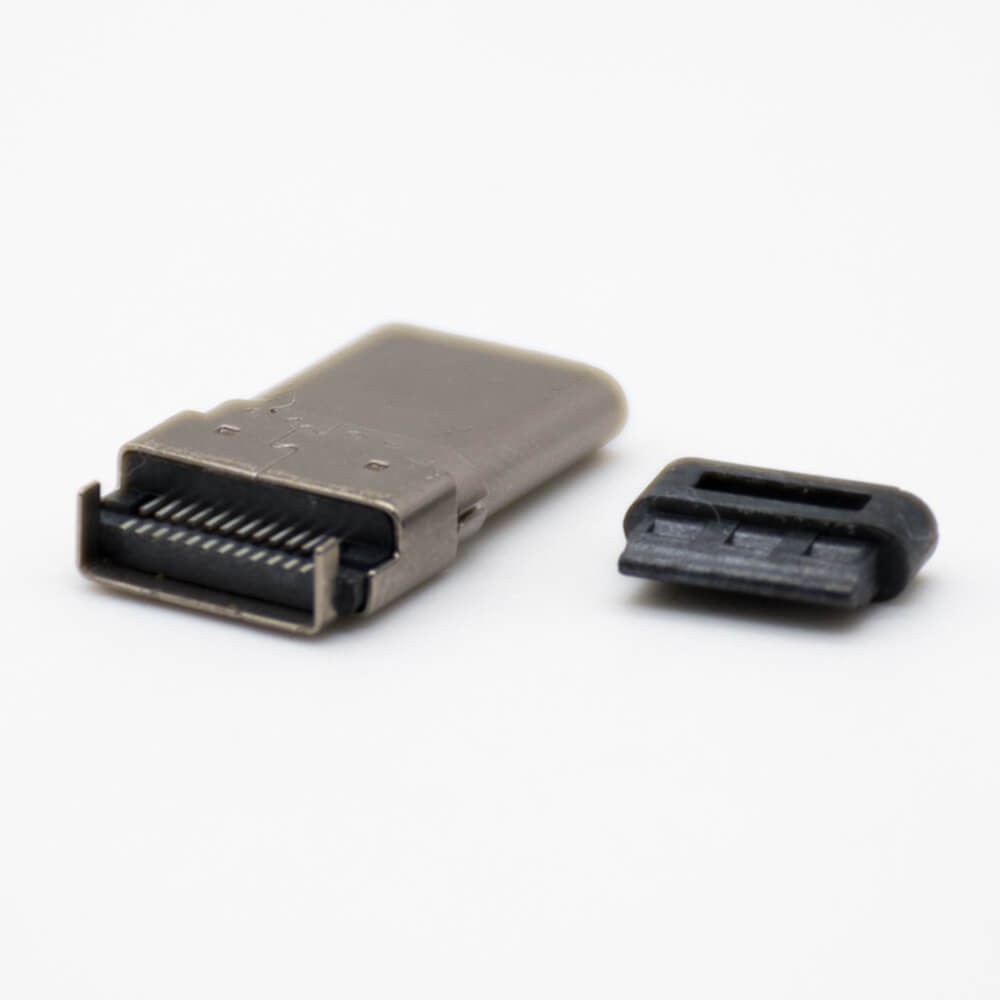

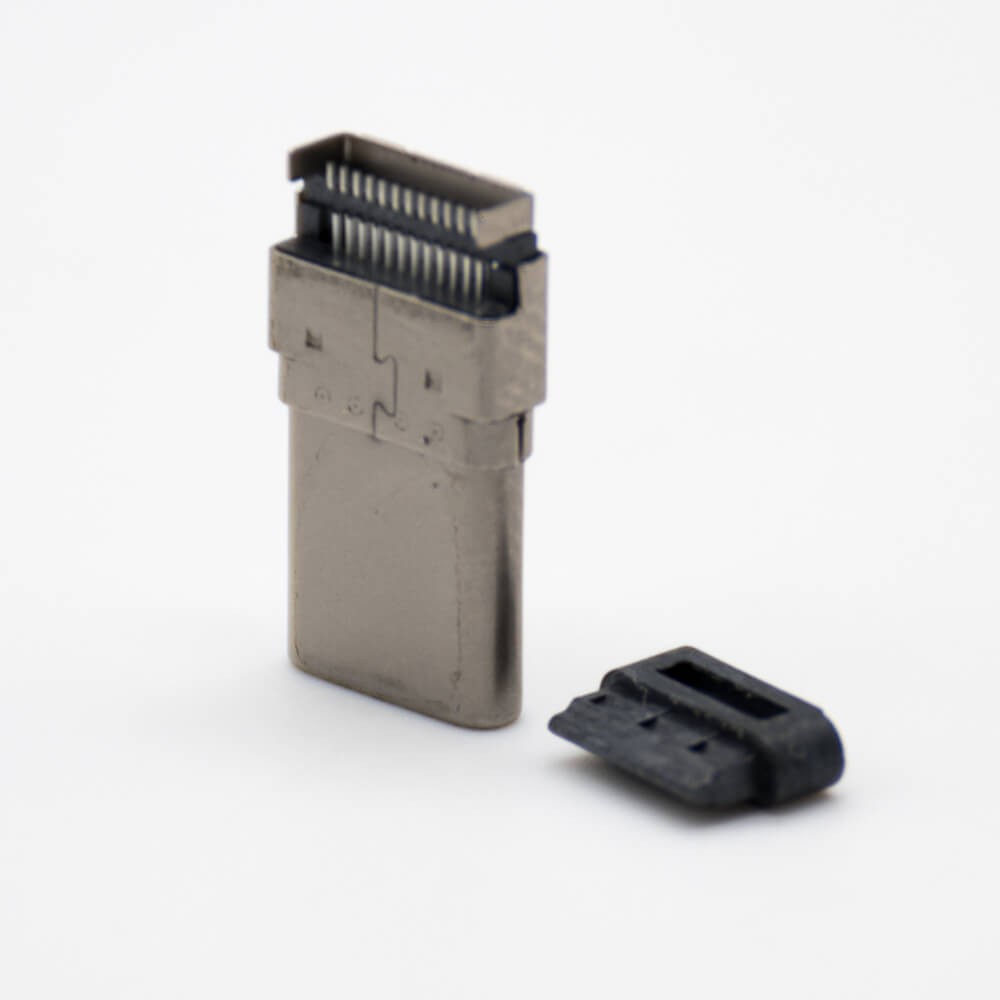

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type

USB Connector Types C 3.1 Offset Type Straight Male 24 Pin SMT Type
