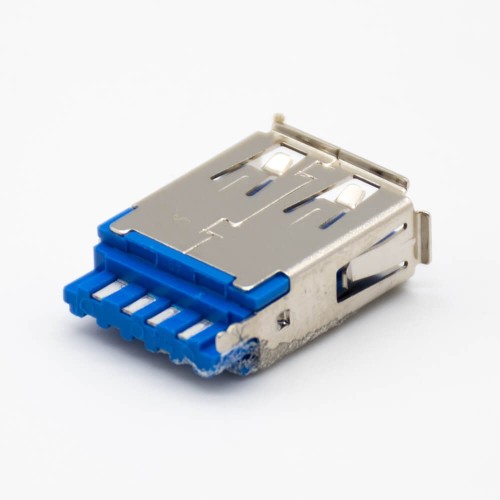

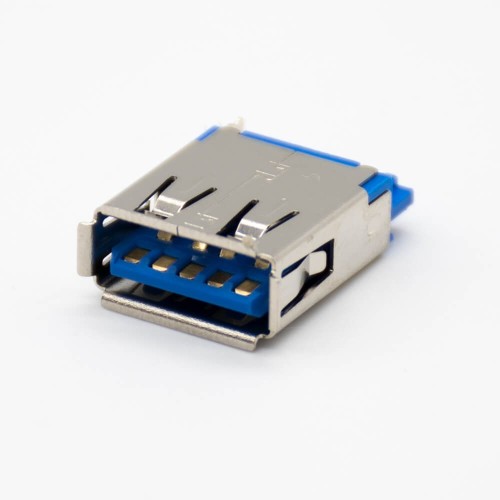

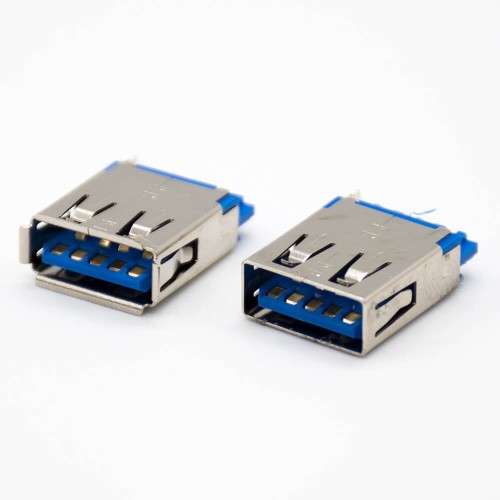

USB Female Connector 3.0 9 Pin Solder Type A Straight SMT Type
from
$1.49
Ex Tax: $1.49
10 or more $1.37
30 or more $1.27
50 or more $1.19
100 or more $1.12
200 or more $1.04
- Stock: In Stock
- Model: JE00005771
- Weight: 0.10kg
- SKU: JE00005771
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Applications:
- Desktop Computer and Motherboard
- Notebook
- Memory Card Reader
- Set top box
- Consumer Solid State Drives
- LCD TV Panel
- Music Synthesizer
Electrical Characteristics
- Contact Resistance:30Ω Maximum
- Contact Current Rating:1.50A
- Dielectric Withstanding Voltage:100V R.M.S
- Insulation Resistance 1000 Megohms Min
- Operating Temperoture:-45°C ~ +80°C
Mechanical Characteristics
- Mating Force:3.57kg Max
- Unmating Force:1.02kg Min
Environmental Characteristics
- Operating Temperature：-45°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | UL94V-0 |
| Shell | Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
