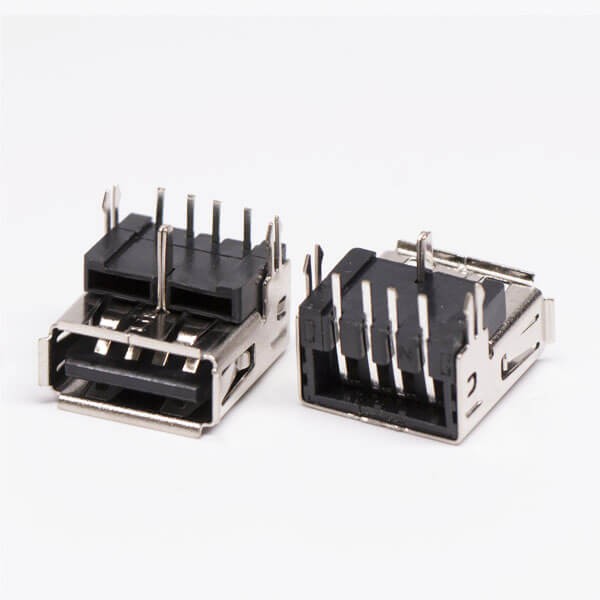

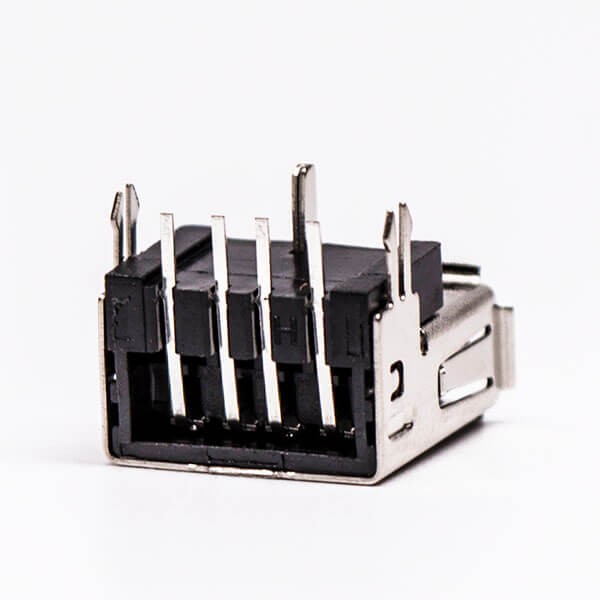

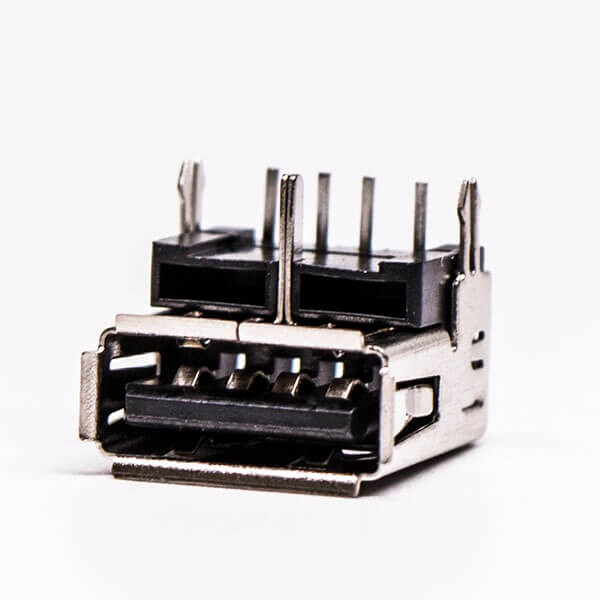

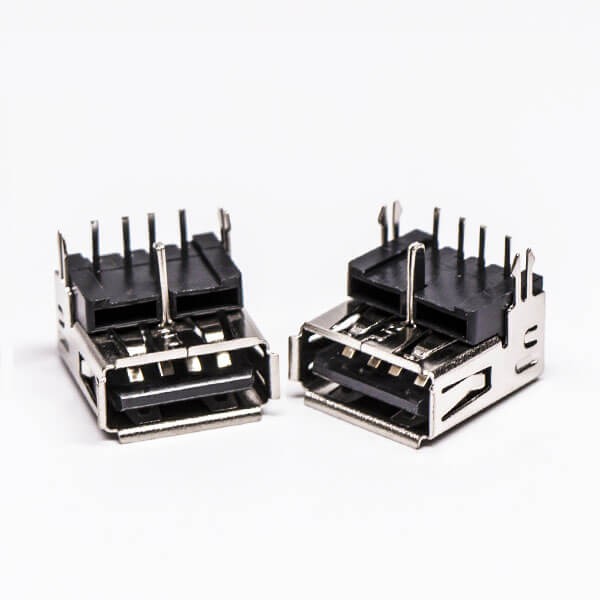

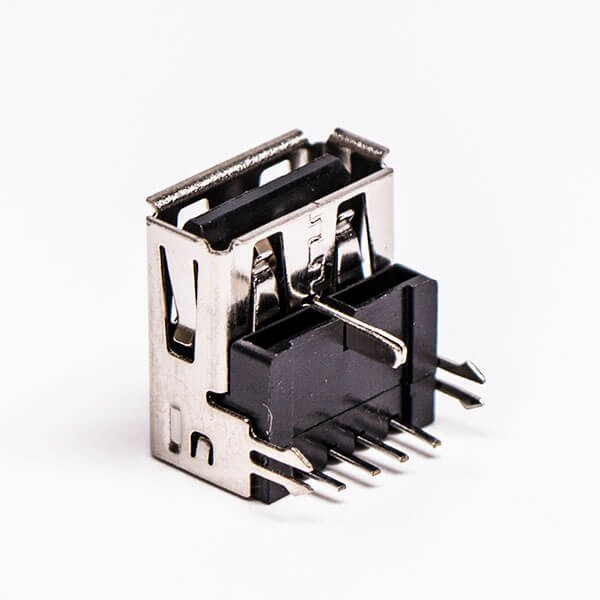

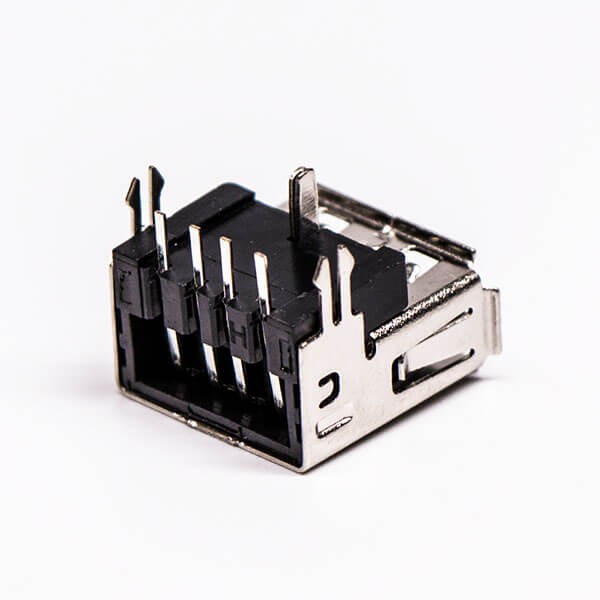

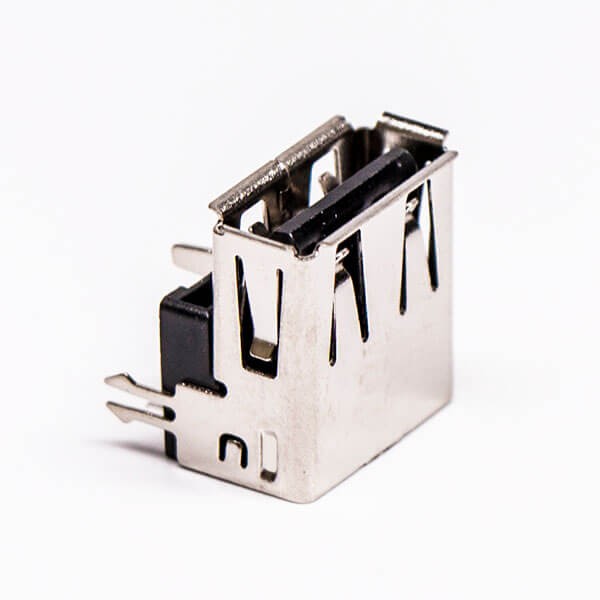

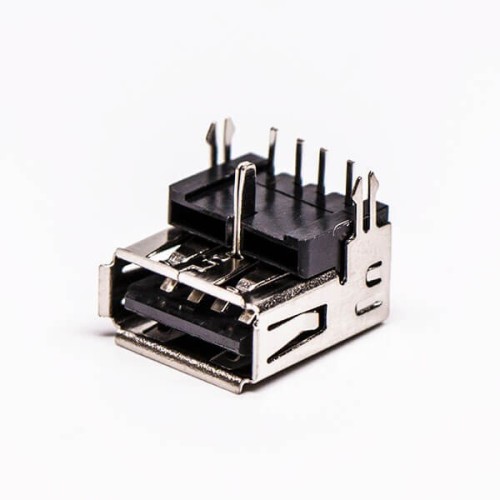

Right Angle USB Female Through Hole Harpoon for PCB Mount
from
$1.25
Ex Tax: $1.25
10 or more $1.15
30 or more $1.06
50 or more $1.00
100 or more $0.94
200 or more $0.88
- Stock: In Stock
- Model: JE00005578
- Weight: 0.09kg
- SKU: JE00005578
Products Sold: 0
Product Views: 1
Ask a Question About This Product
- Description
Applications:
- Servers
- External Storage Systems
- Supercomputers
- Computers, laptops, servers
- Printers, external drive units, monitors
- Digital cameras, TV
Electrical Characteristics
- voltage Rating: 30V AC (rms)
- Current Rating: 1.0A MAX
- Contact Resistange: 30 milliohms max
- Insulation Resistange: 1000 megohms min
- Dielectric Withstanding Voltage: 500 V DC/1min
Mechanical Characteristics
- Mating force: 3.57 kgf max
- UNmating force: 1.0 kgf min
Environmental Characteristics
- Operating Temperature：-40°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | ------ |
| Shell | Copper Alloy or Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
