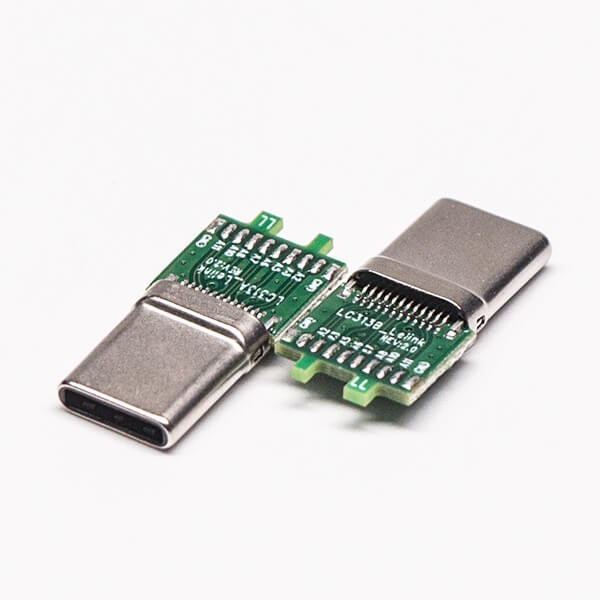

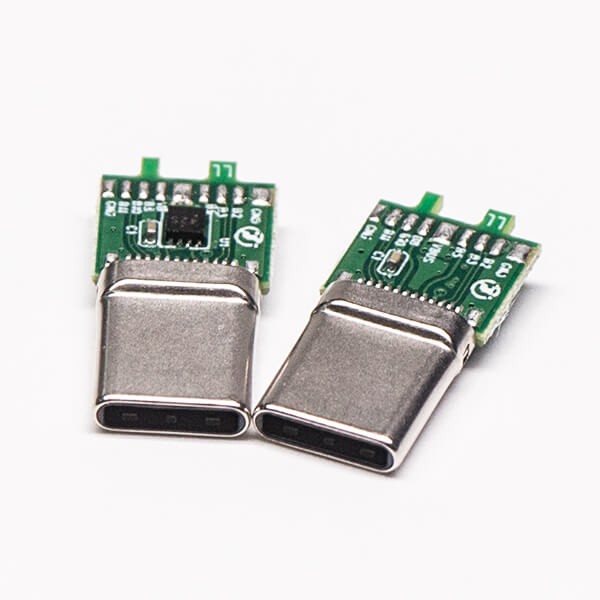

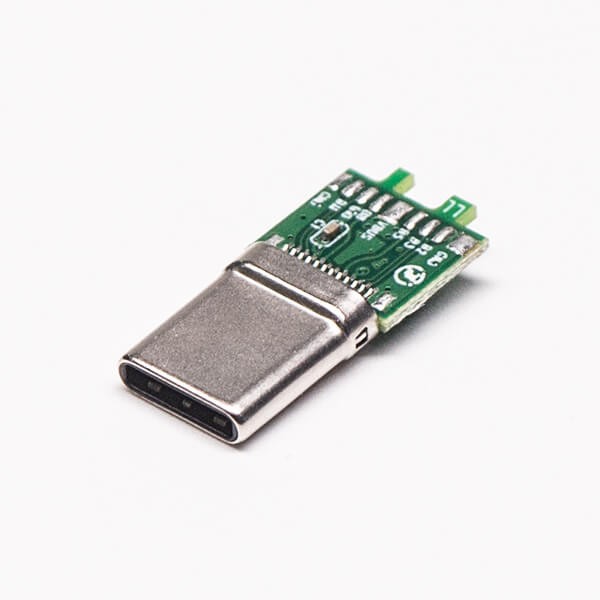

USB Type C Straight 180 Degree Plug 24 Pin Solder Type
from
$4.00
Ex Tax: $4.00
10 or more $3.68
30 or more $3.40
50 or more $3.20
100 or more $3.00
- Stock: In Stock
- Model: JE00005591
- Weight: 0.70g
- SKU: JE00005591
Products Sold: 0
Product Views: 19
Ask a Question About This Product
- Description
Applications:
- Industrial machinery
- Technology devices
- Hard Disk Drives
- Flash Disk
- Mobile Phone/Tablet
- VR Camera
- Charger
- Car Media Player/Hub
Electrical Characteristics
- voltage Rating: 5V AC
- Contact Rating:5.0A
- Contact Resistance: 40 milliohms max
- Insulation Resistance: 100 megohms
- Withstanding Voltage: 100V AC
Mechanical Characteristics
- Mating force: 5N to 20N
- UNmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature：-30°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | UL94V-0, Black |
| Shell | Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
