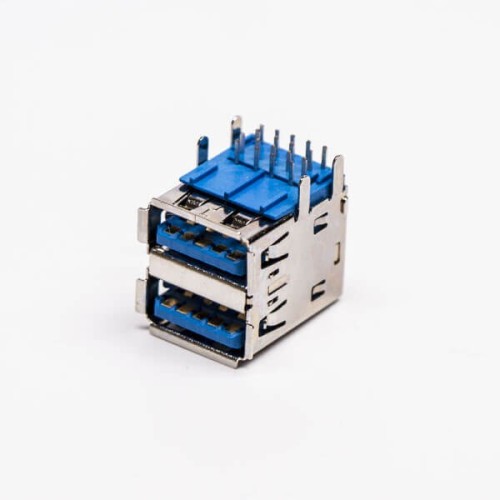

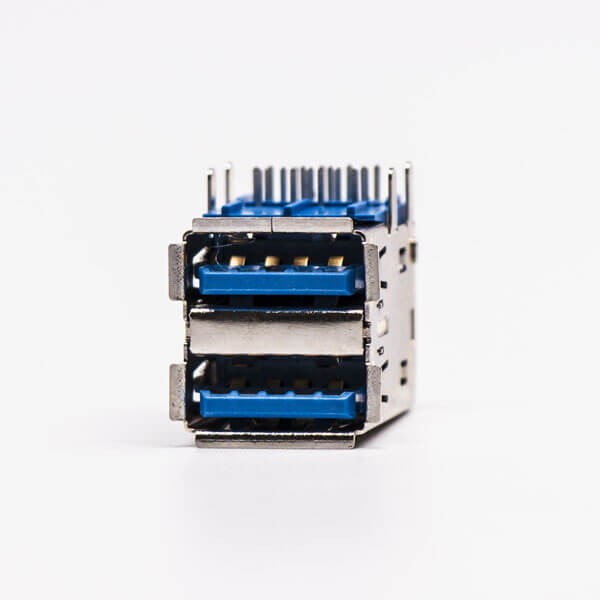

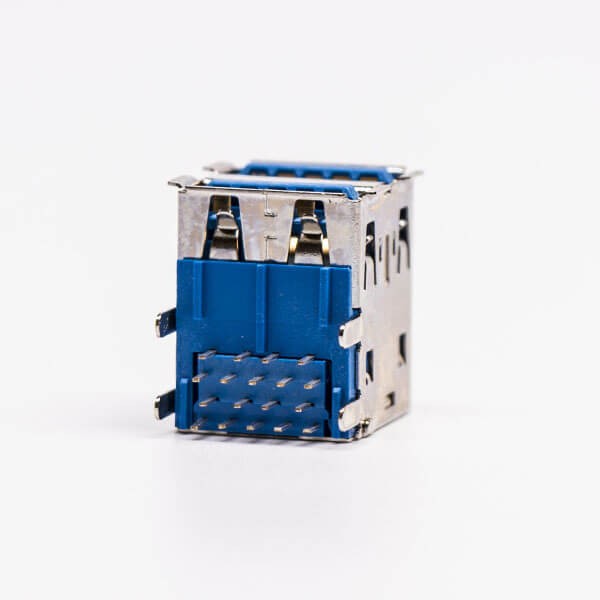

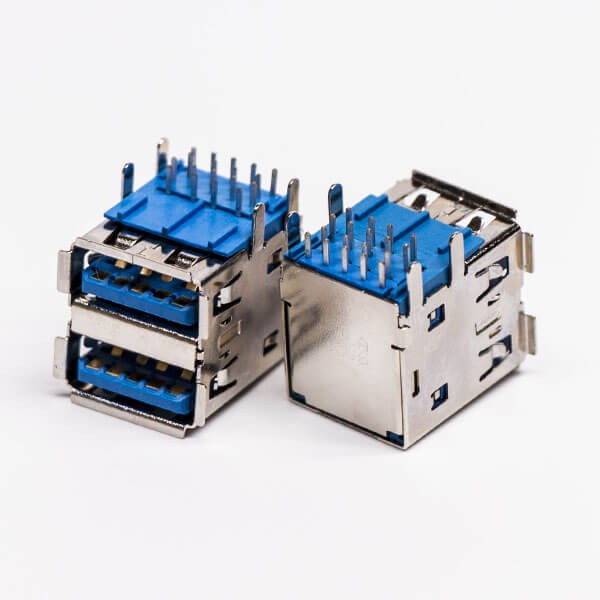

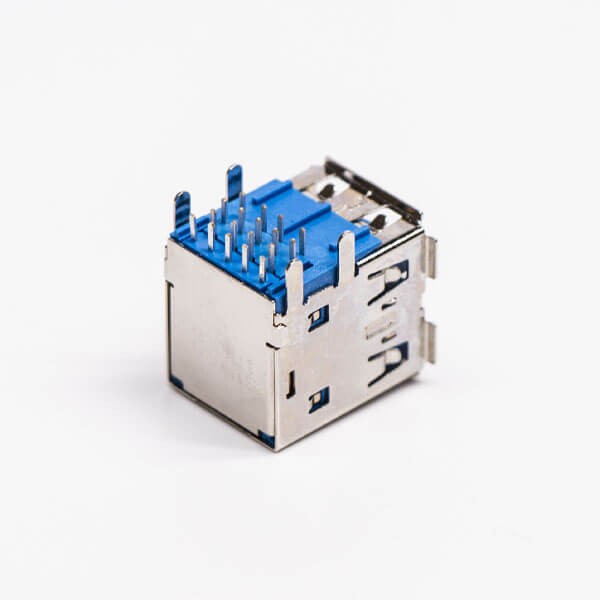

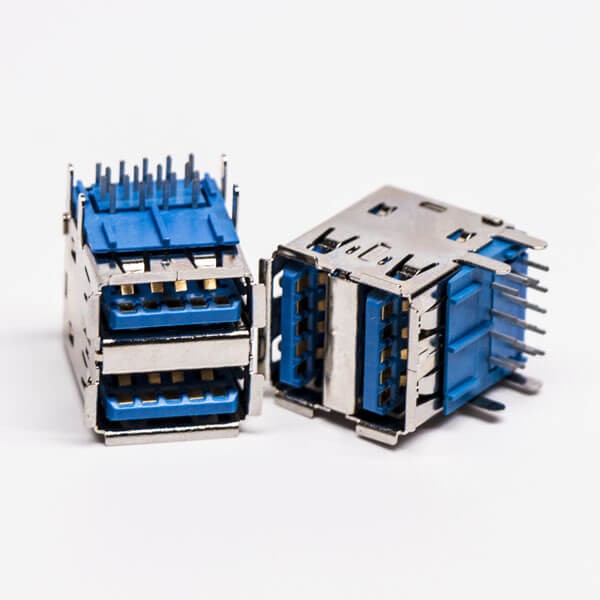

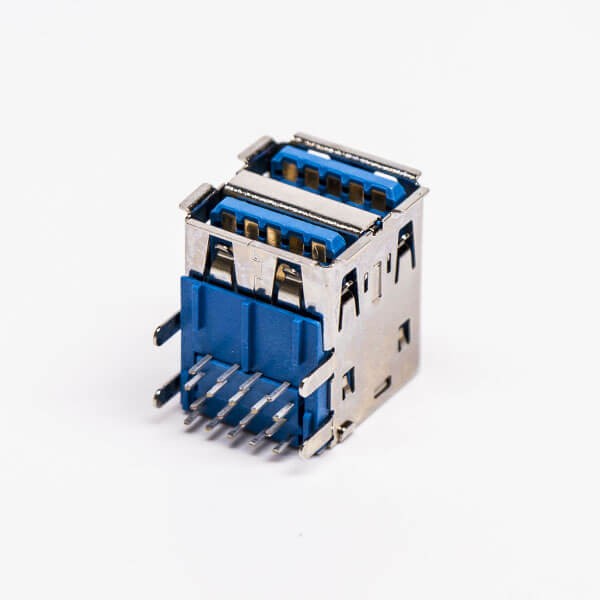

usb3.0 Type A Dual Port Female Right Angled Through Hole
from
$1.98
Ex Tax: $1.98
10 or more $1.82
30 or more $1.68
50 or more $1.58
100 or more $1.49
200 or more $1.39
- Stock: In Stock
- Model: JE00005562
- Weight: 5.80g
- SKU: JE00005562
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Applications:
- Desktop Computer and Motherboard
- Notebook
- Memory Card Reader
- Set top box
- Consumer Solid State Drives
- LCD TV Panel
- Music Synthesizer
Electrical Characteristics
- Contact Resistance:30Ω Maximum
- Contact Current Rating:1.50A
- Dielectric Withstanding Voltage:100V R.M.S
- Insulation Resistance 1000 Megohms Min
- Operating Temperoture:-45°C ~ +80°C
Mechanical Characteristics
- Mating Force:3.57kg Max
- Unmating Force:1.02kg Min
Environmental Characteristics
- Operating Temperature：-45°C~ + 85°C
Material:
| Part | Material | Finish |
| Housing | High Temperature Polymer | UL94V-0, Black |
| Shell | Stainless Steel | ------ |
| Contact | Copper Alloy | ------ |
