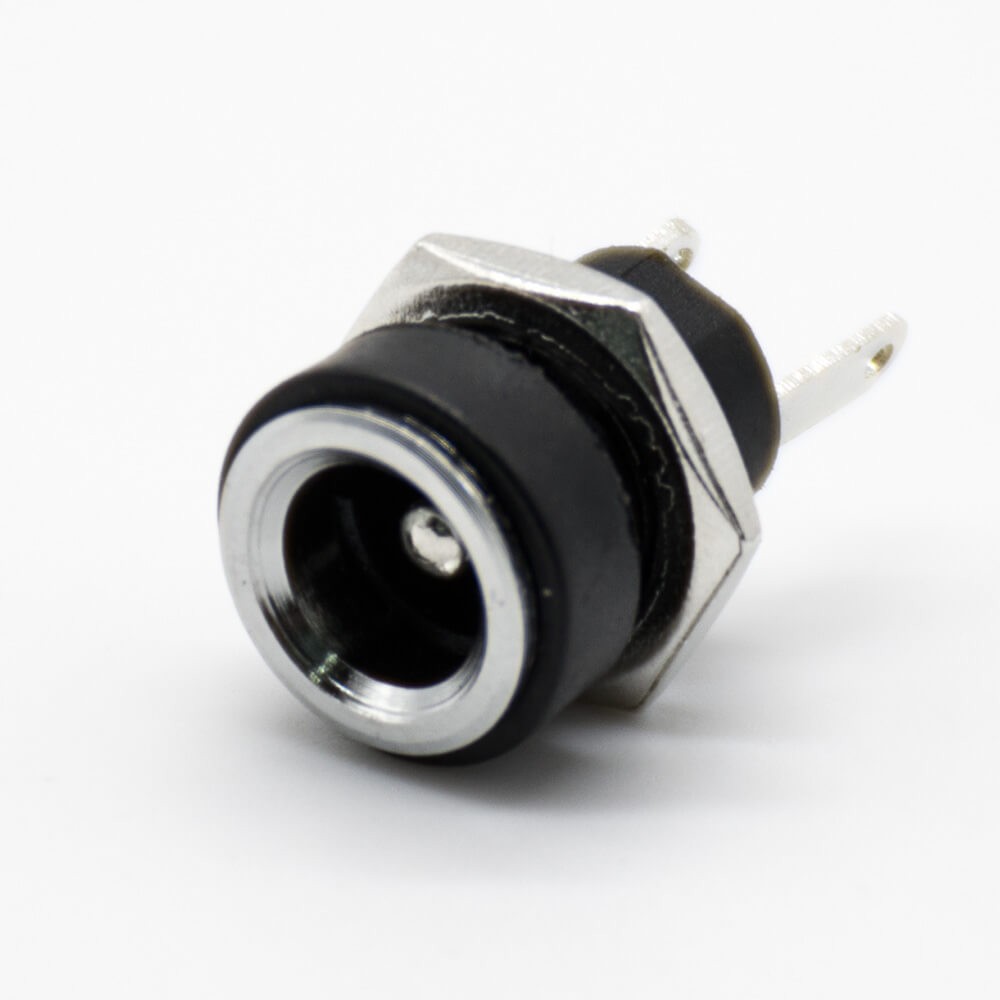

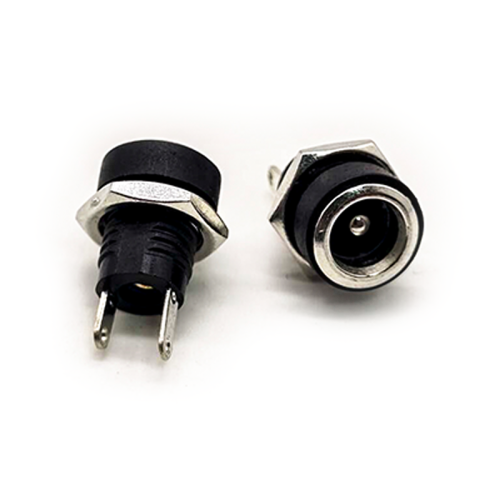

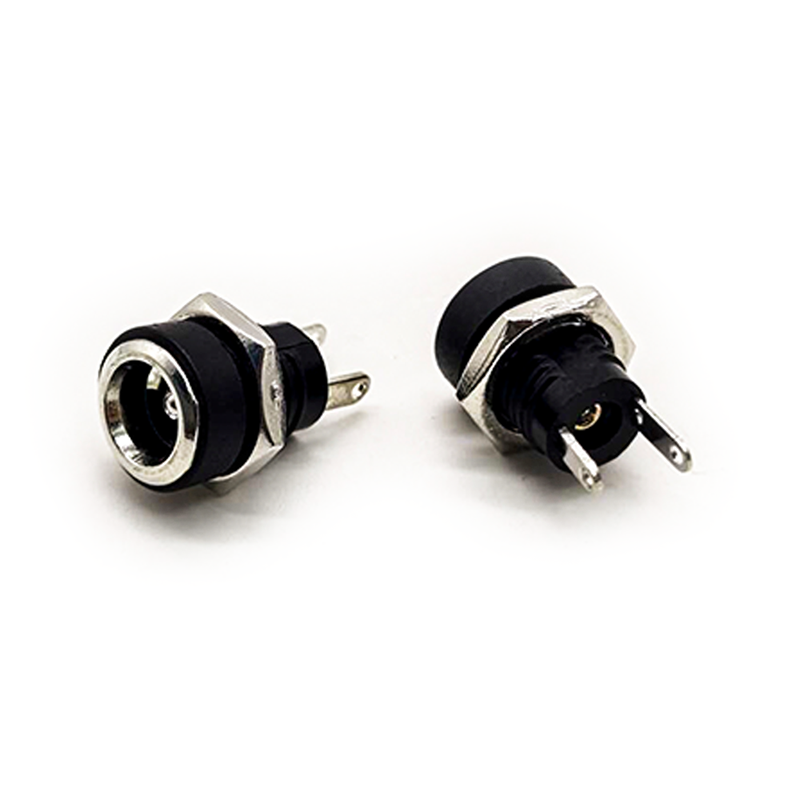

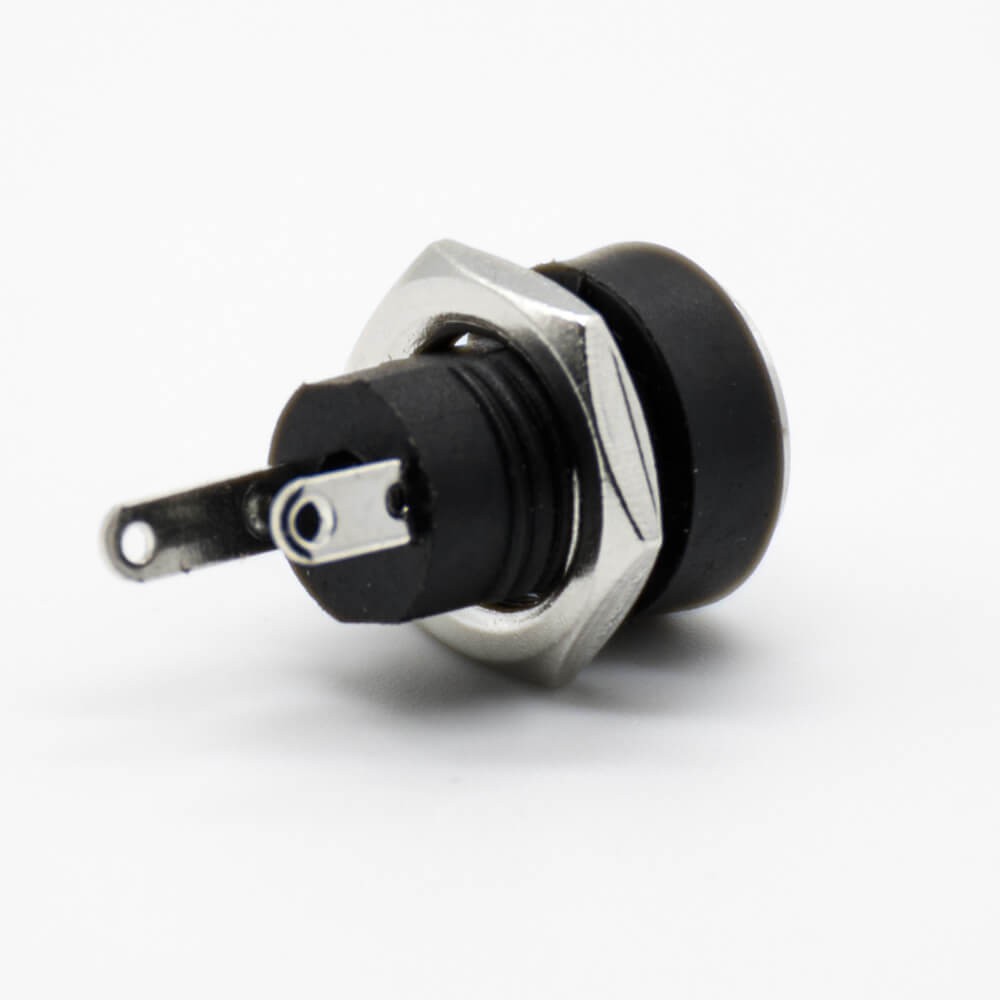

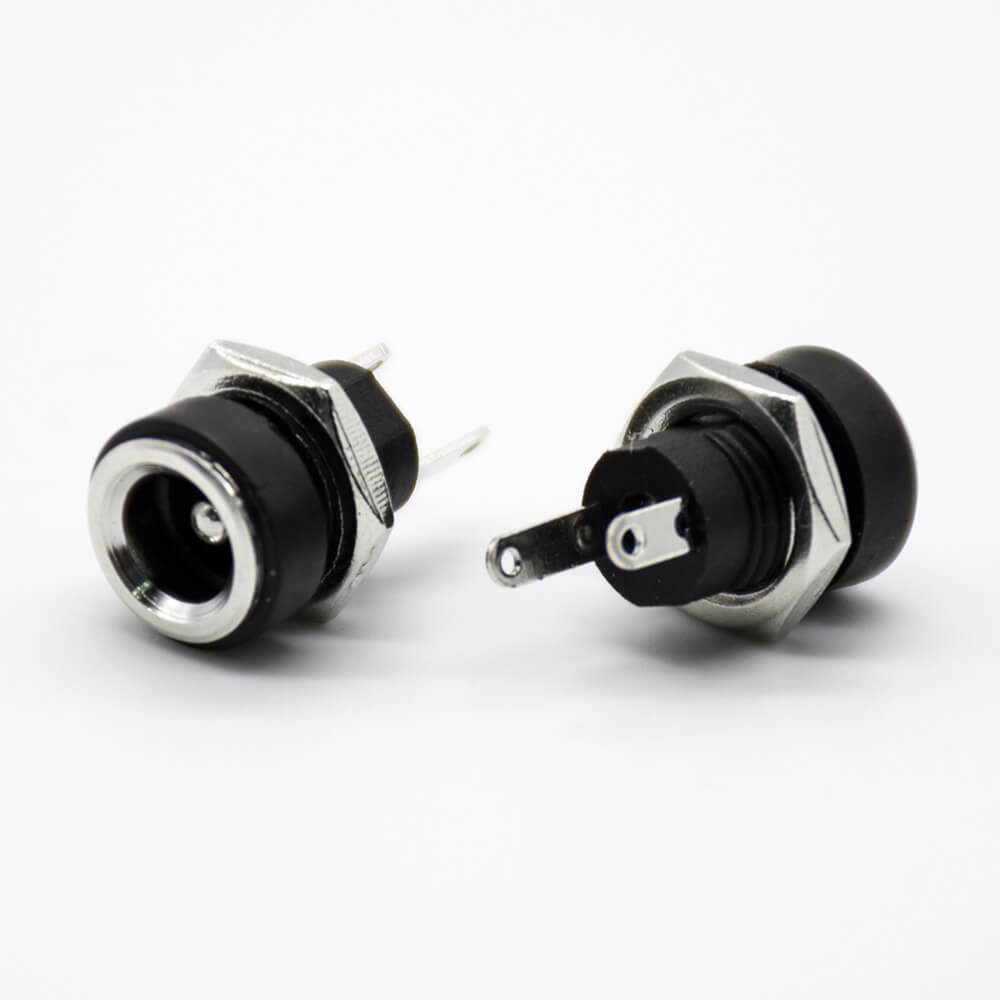

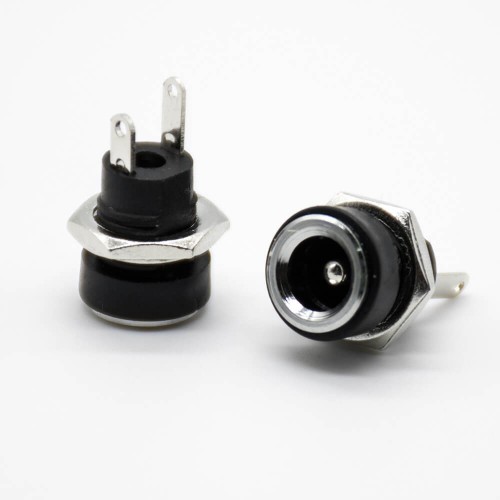

Waterproof DC Power Connectors Female Jack Panel Mount Bulkhead 5.5*2.1mm Through Hole Straight Unshiled
Features:
- DC Power Connector, Female Jack, Panel Mount, bulkhead, Through Hole, straight, Unshiled,5.5*2.1mm
- The contact material is a silver-plated copper alloy, these materials combined have the advantages of conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.
- A long shelf life of 10000 insertions and withdrawals
- Connector bodies are moulded in ABS plastic
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Audio / Video product
- Digital devices
- Remote control
- Communication products
- Household electrical appliance
- Security Products
- Toy
- Computer products
- Fitness equipment
- Technology Equipment
from
$0.39
Ex Tax: $0.39
- Stock: In Stock
- Model: JE00006651
- Weight: 1.50g
- SKU: JE00006651
Products Sold: 0
Product Views: 2
Ask a Question About This Product
- Specifications
attribute-list | |
Terminal type | Through Hole |
Connector Type | Socket |
Gender | Female |
Shield | Unshielded |
Direction | Straight |
Installation method | Panel Mount |
- Description
Electrical Characteristics:
- Voltage Rating: 48V AC/DC
- Current Rating: 5A (current carry only)
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Withstanding: 500 VAC max.
Mechanical Characteristics:
- Installation angle : Straight/ Right Angle
- Connector Mounting Type : Panel Mount/PCB Mount
Environmental Characteristics:
- Ambient temperature: -40°C to 65°C (-40°F to 149°F)
Material:
art | Material | Finish |
Pin/ Terminal | Brass | Nickel |
Shunt Terminal | Brass | Silver (Over Nickel) |
Tip Spring | Copper Alloy | Silver (Over Nickel) |
Ground Spring | Stainless Steel | ------ |
Shield | Brass | Nickel |
Body | Brass | Nickel |
Contacts | Brass | Nickel |
Insulator | Thermoplastic | ------ |
Hex Nut | Die Cast | Nickel |
