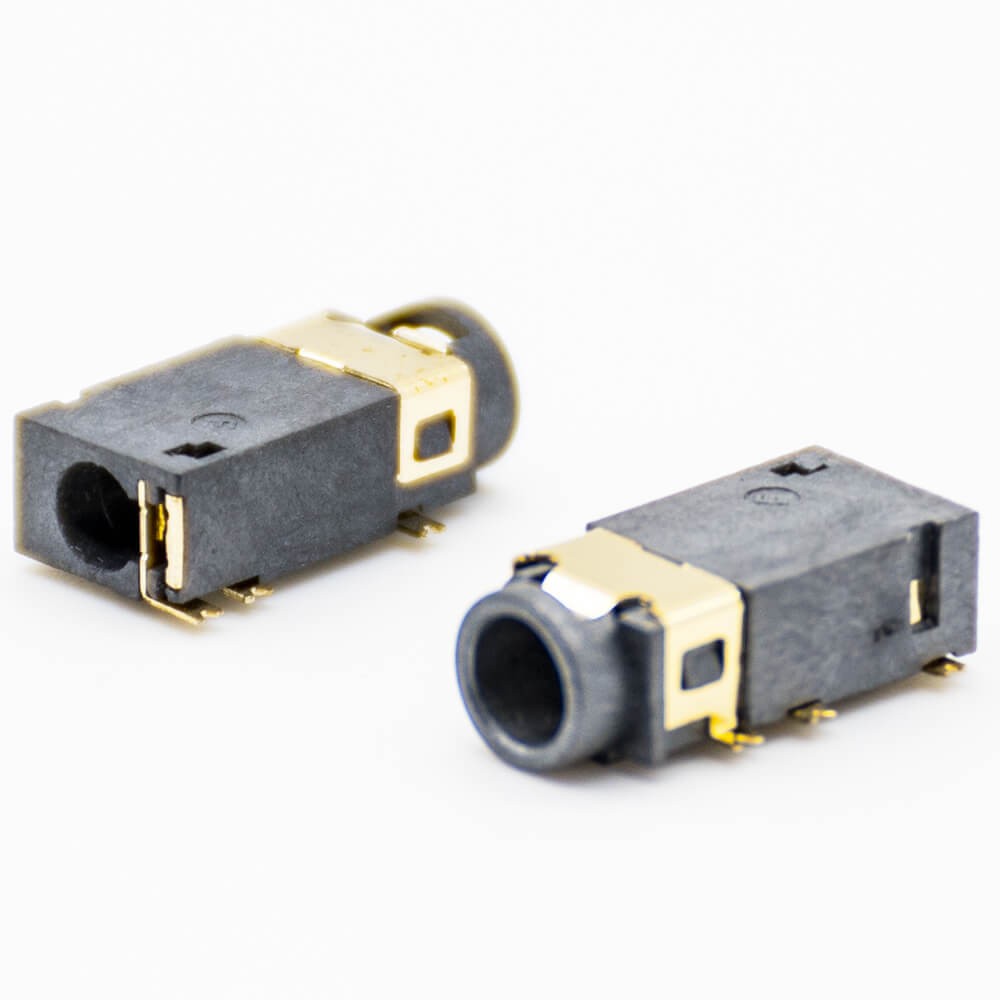

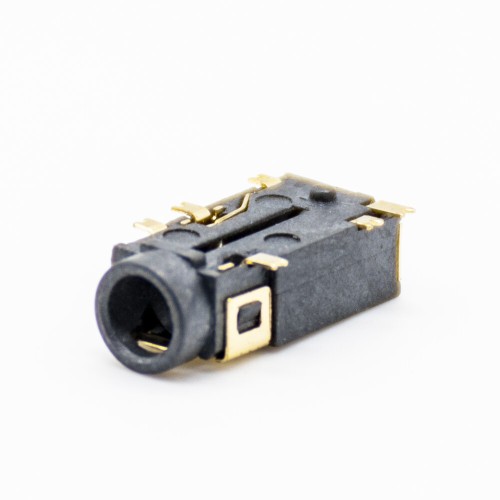

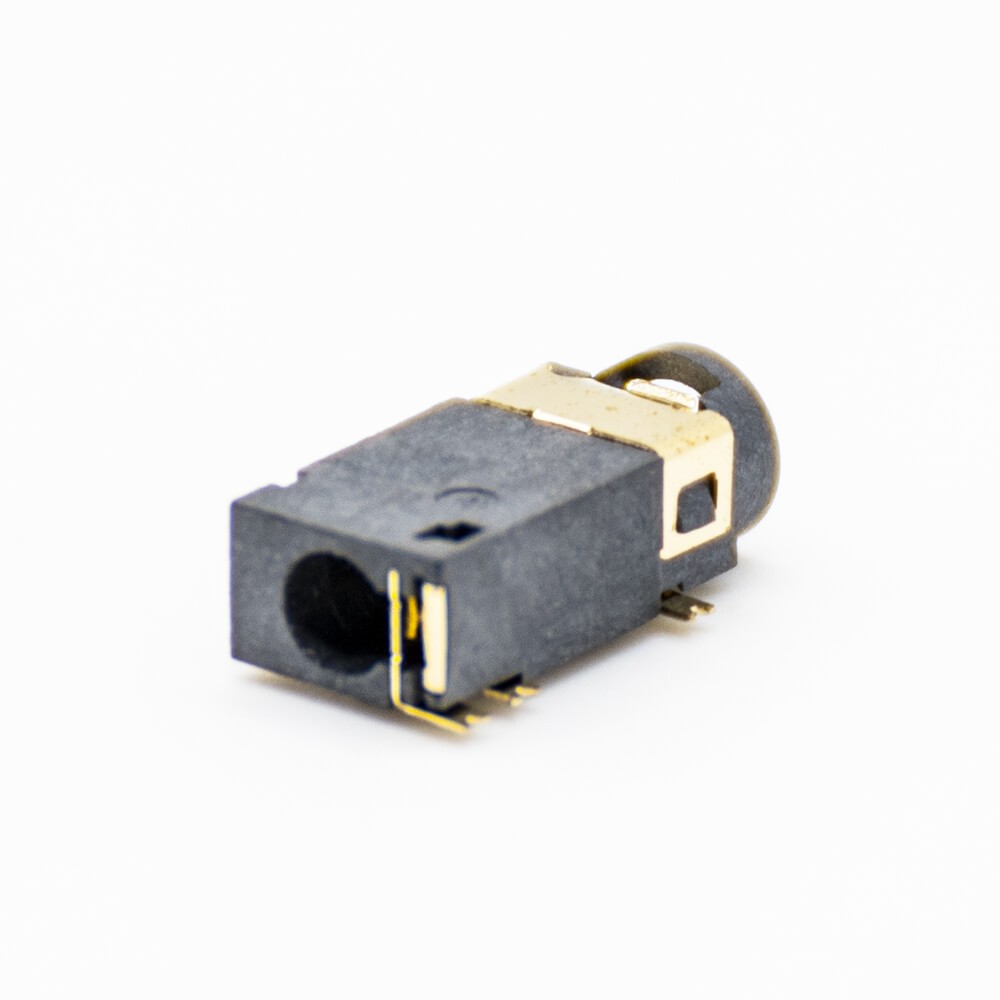

Waterproof DC Power Connectors Unshiled SMD Horizontal Solder Lug Female Jack
Features:
- DC Power Connector,Female Jack,SMD,Solder Lug,Horizontal,Unshiled,Plastic,Black
- The contact material is a silver plated copper alloy, these materials combined have the advantages of the conductive copper and the bright and shiny surface of silver which gives an aesthetically pleasing finish. In addition to the look, the silver also provides a high corrosive resistance.
- A long shelf life of 10000 insertions and withdrawals
- Connector bodies are moulded in ABS plastic
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- Audio / Video product
- Digital devices
- Remote control
- Communication products
- Household electrical appliance
- Security Products
- Toy
- Computer products
- Fitness equipment
- Technology Equipment
from
$0.23
Ex Tax: $0.23
- Stock: In Stock
- Model: JE00006855
- Weight: 0.43g
- SKU: JE00006855
Products Sold: 0
Product Views: 2
Ask a Question About This Product
- Specifications
attribute-list | |
Terminal type | PCB Soldering |
Connector Type | Socket |
Gender | Female |
Shield | Unshielded |
Direction | 水平 |
Installation method | SMT |
- Description
Electrical Characteristics:
- Voltage Rating: 48V AC/DC
- Current Rating: 5A (current carry only)
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Withstanding: 500 VAC max.
Mechanical Characteristics:
- Installation angle : Straight/ Right Angle
- Connector Mounting Type : Panel Mount/PCB Mount
Environmental Characteristics:
- Ambient temperature: -40°C to 65°C (-40°F to 149°F)
Material:
art | Material | Finish |
Pin/ Terminal | Brass | Nickel |
Shunt Terminal | Brass | Silver (Over Nickel) |
Tip Spring | Copper Alloy | Silver (Over Nickel) |
Ground Spring | Stainless Steel | ------ |
Shield | Brass | Nickel |
Body | Brass | Nickel |
Contacts | Brass | Nickel |
Insulator | Thermoplastic | ------ |
Hex Nut | Die Cast | Nickel |
