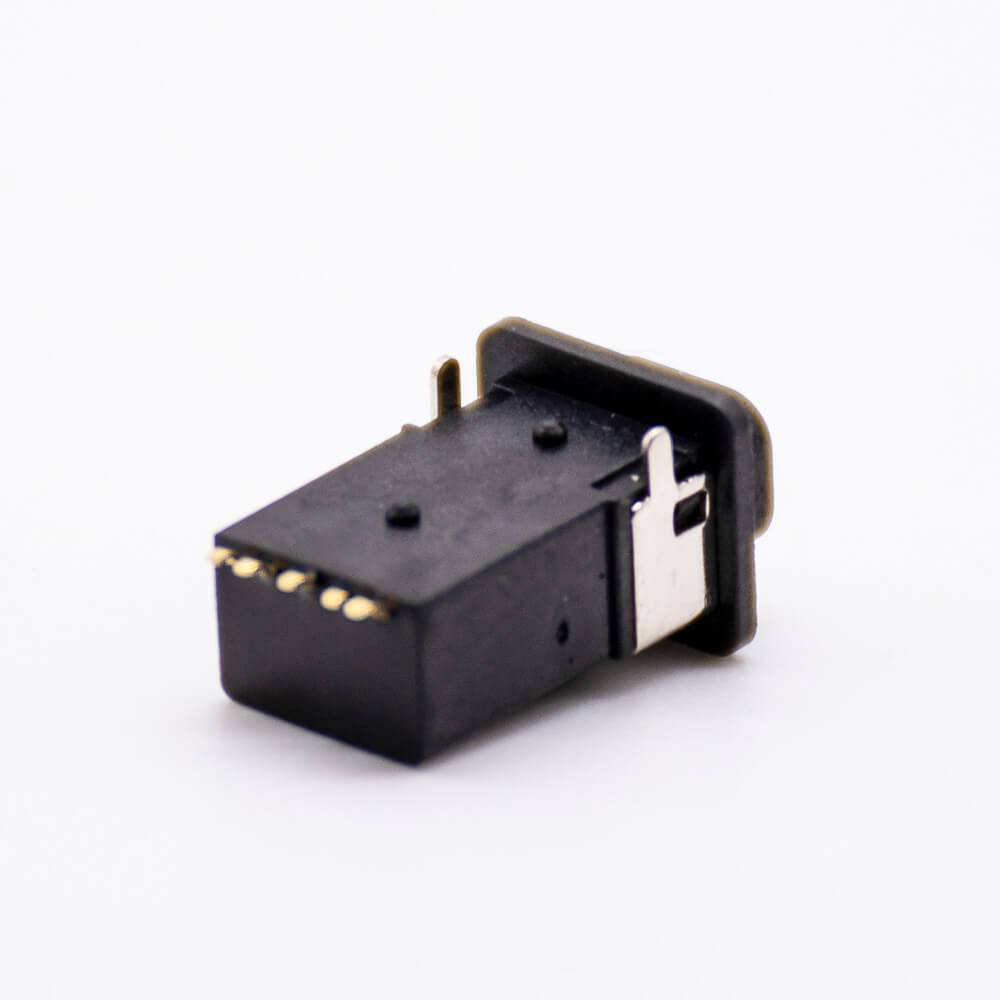

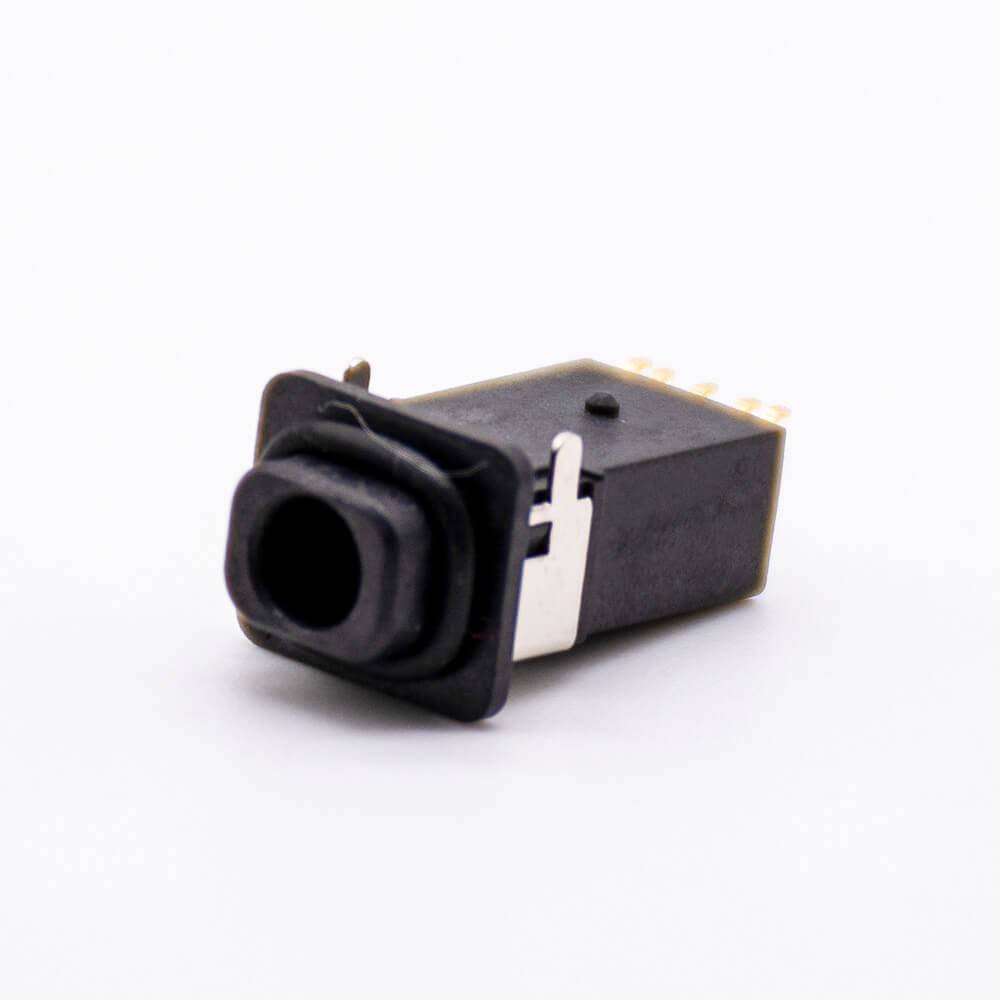

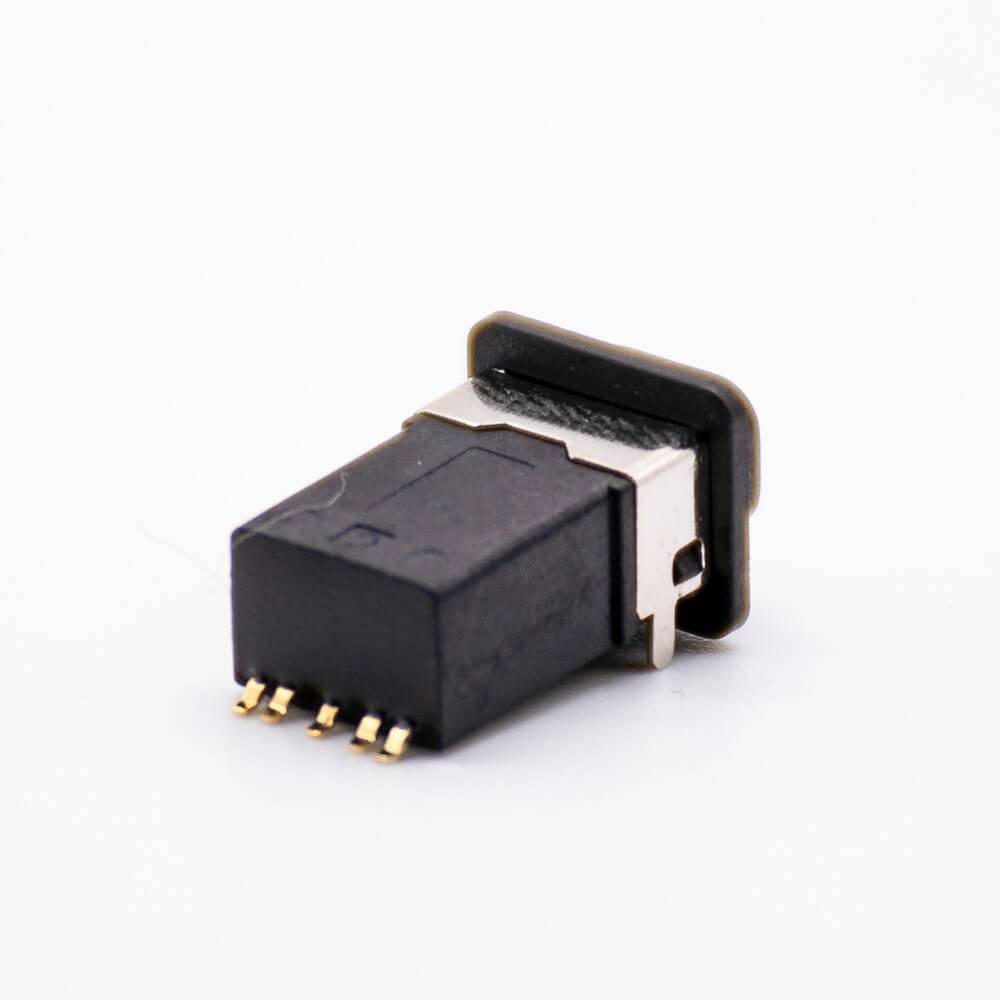

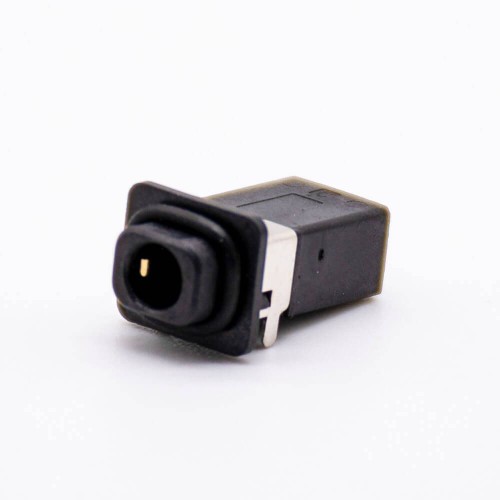

Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67

Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67

Features:

  • Waterproof Earphone Jack,3.5mm,4 Pole,IP68,SMT
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
from
$1.75
Ex Tax: $1.75
10 or more $1.61
30 or more $1.49
50 or more $1.40
100 or more $1.31
200 or more $1.23
  • Stock: In Stock
  • Model: JE00006595
  • SKU: JE00006595
Products Sold: 0
Product Views: 7
  • Specifications
attribute-list
Gender Female
Number of Positions 4 pin
Direction Straight
Waterproof level IP67
Installation method SMT
  • Description

Main Application:

  • Audio Products: MP3,MP4,DVD. Audio;
  • Digital Products: digital camera, digital video and so on;
  • Remote Control: the remote control of automobile domestic security products;
  • Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;

Technical Datasheet:

  • Rated Load : 0.5A 50VDC
  • Contact Resistance : ≤0.03Ω
  • Insulation Resistance : ≥100MΩ DC250V
  • Withstand Voltage : AC 500V(50/60Hz)/min
  • Electrically life :100,000 cycles Min
  • Operating Force : 160-250GF+-50GF
  • Soldering Temperature : 260±5° 3s
  • Material:Plastic

Environmental Characteristics:

  • Environment Temperature :-25°C~+85°C

Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67

Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67

Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67

Waterproof Earphone Jack Female Audio 3.5mm 4 poles SMT IP67
