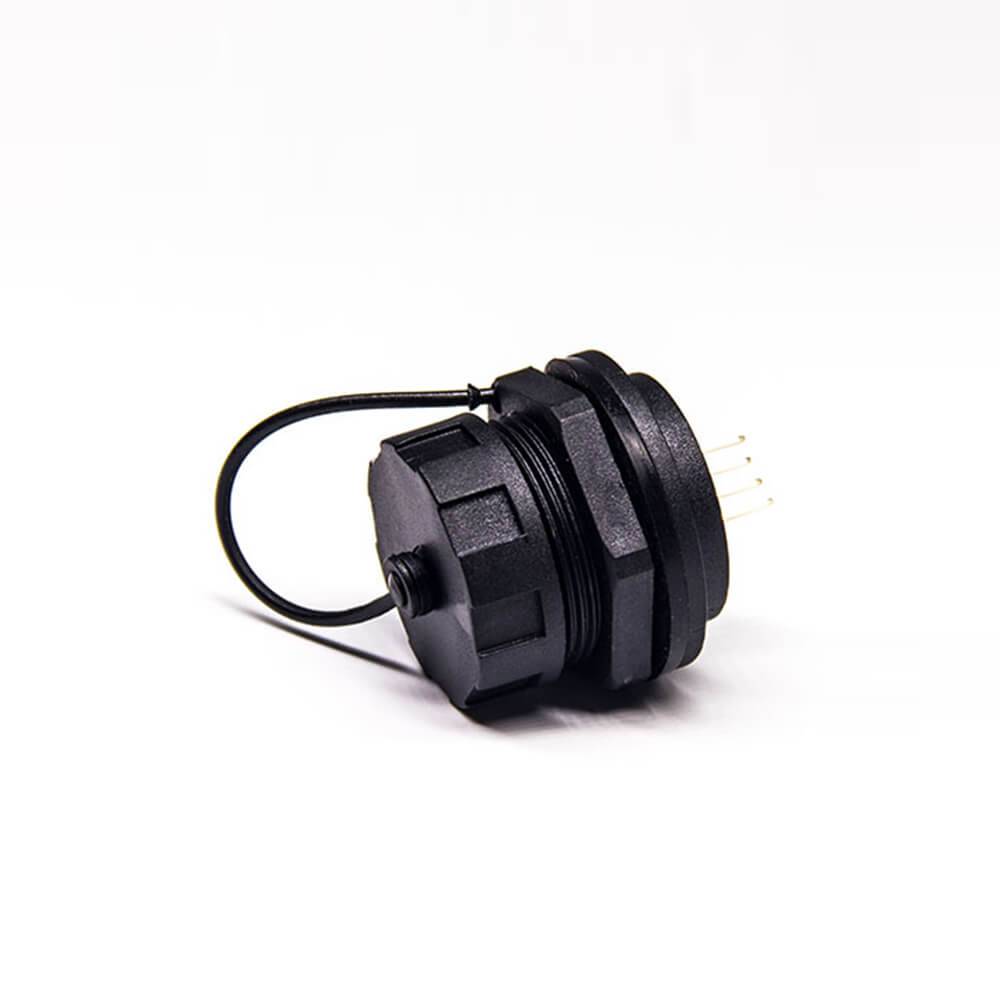

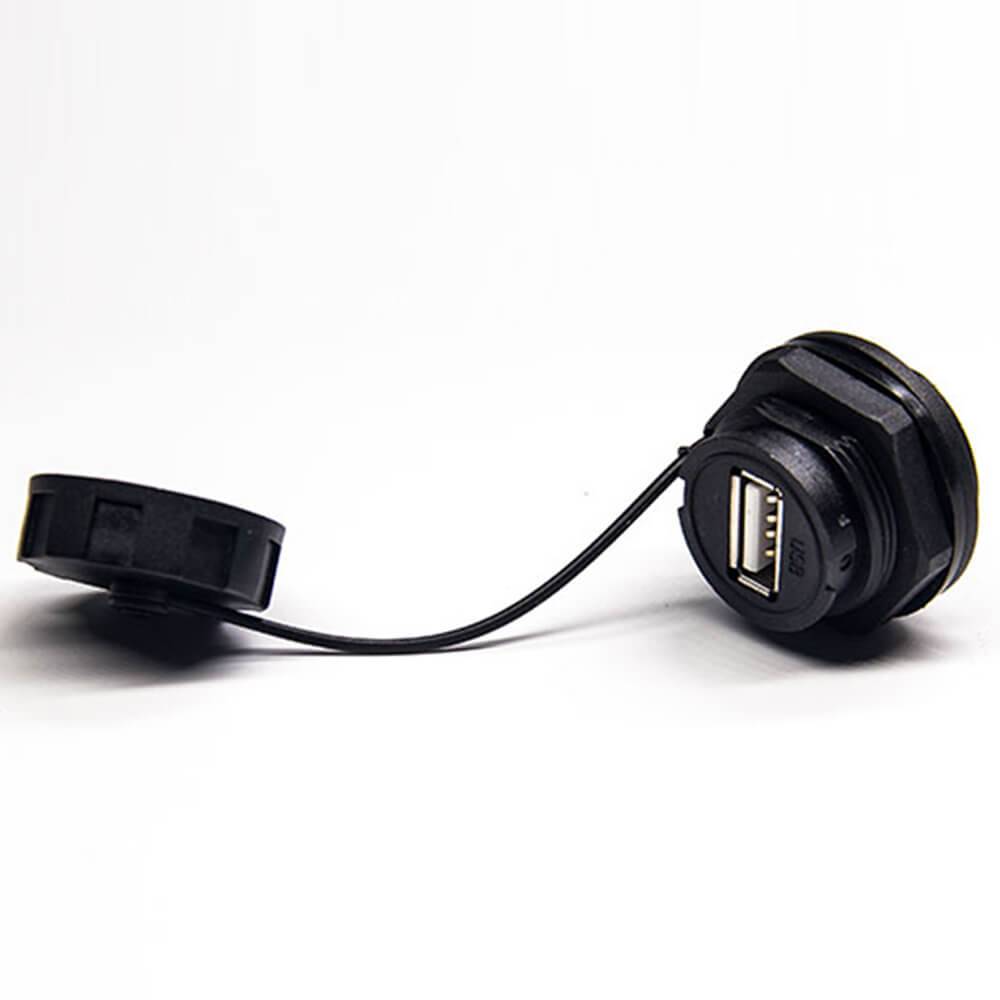

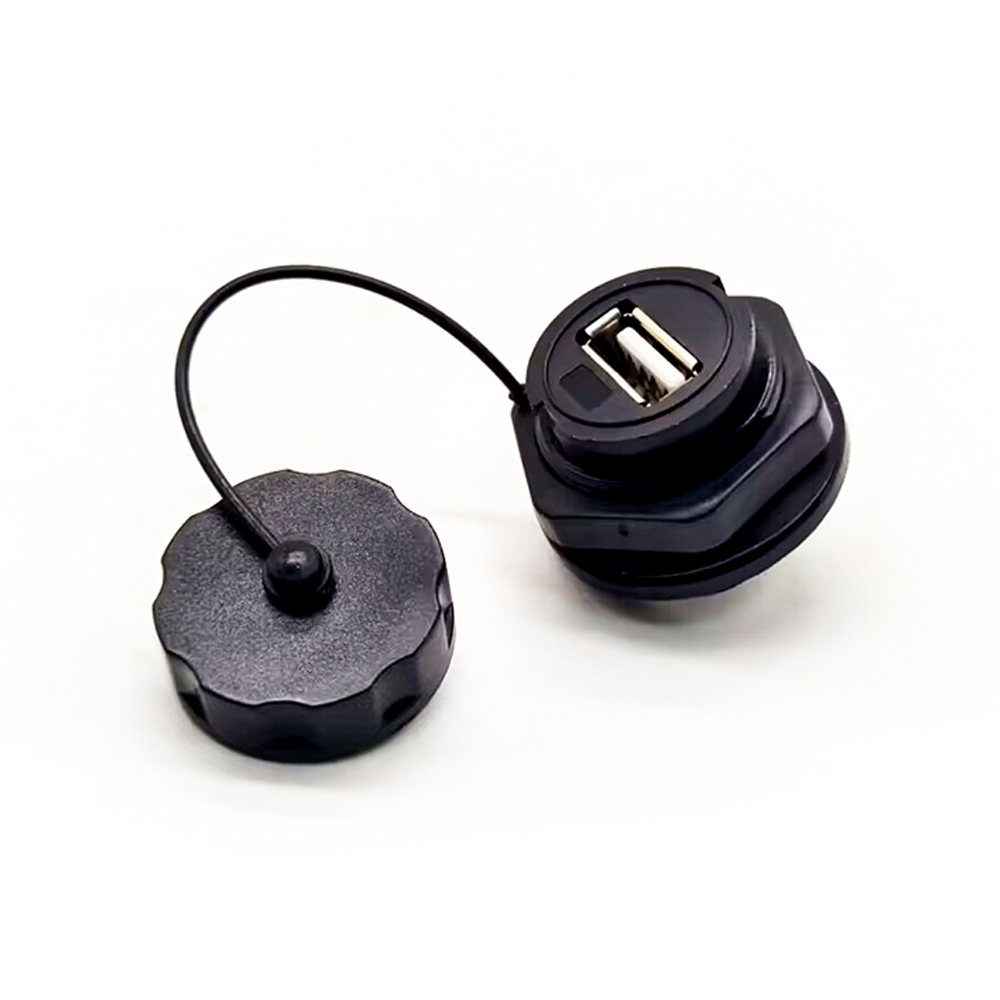

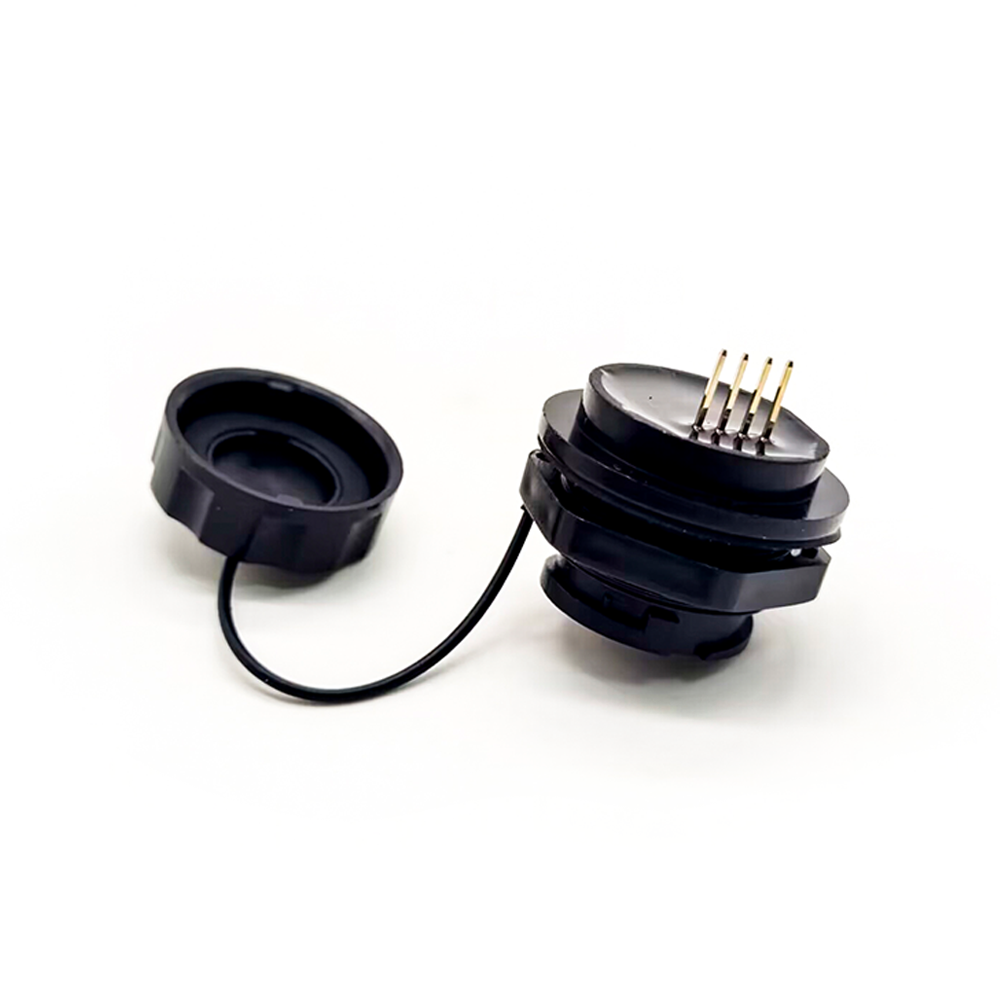

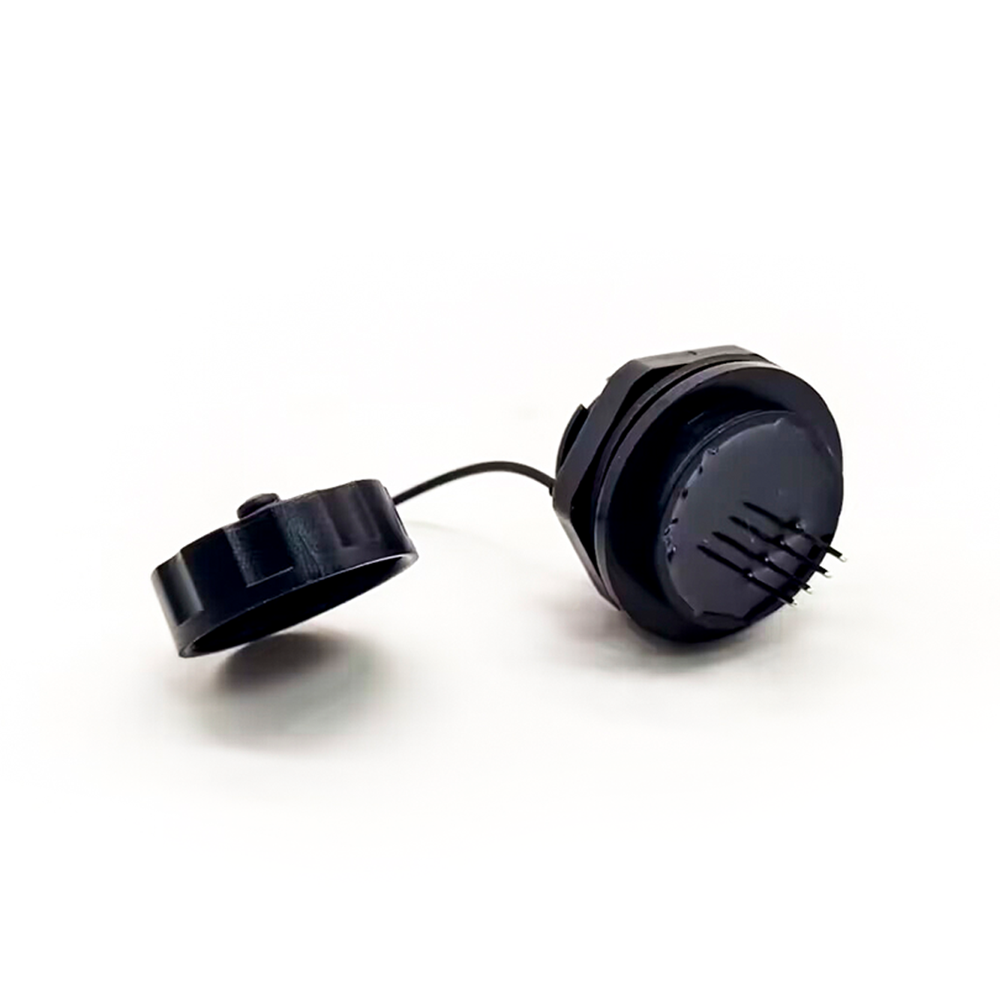

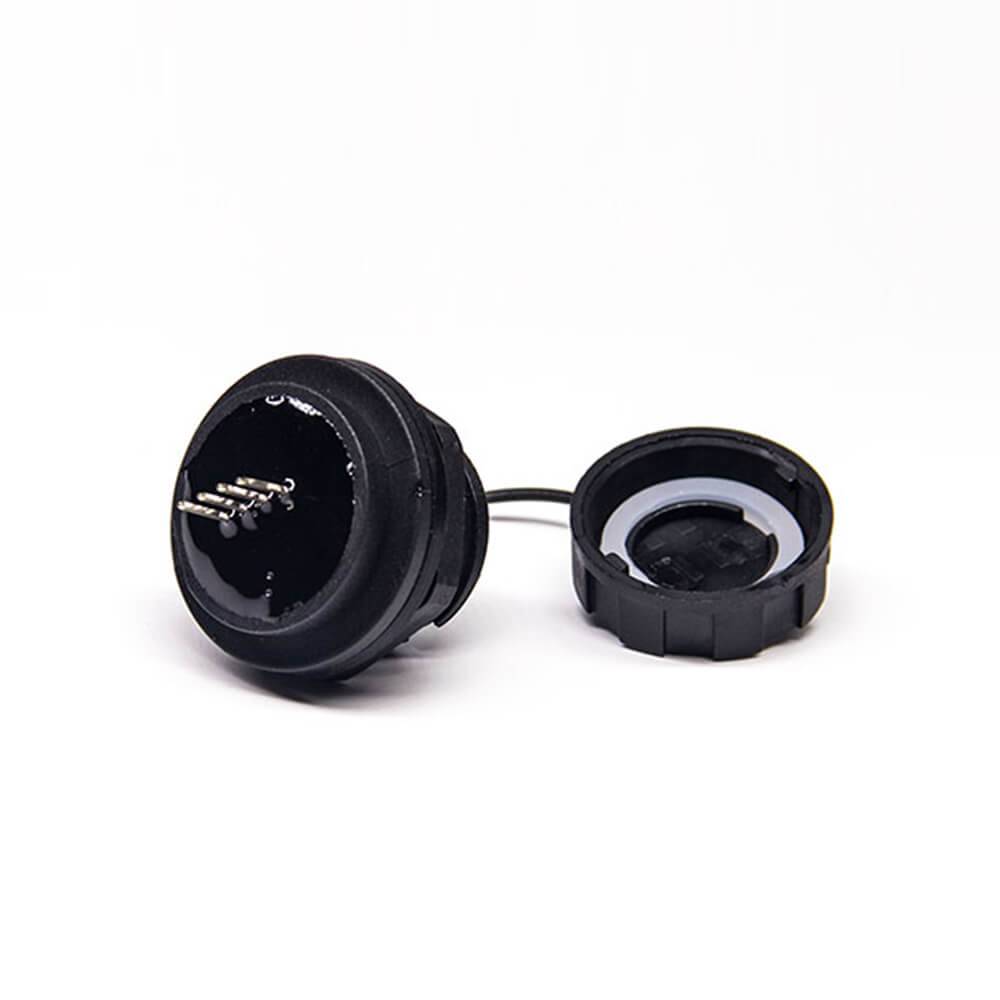

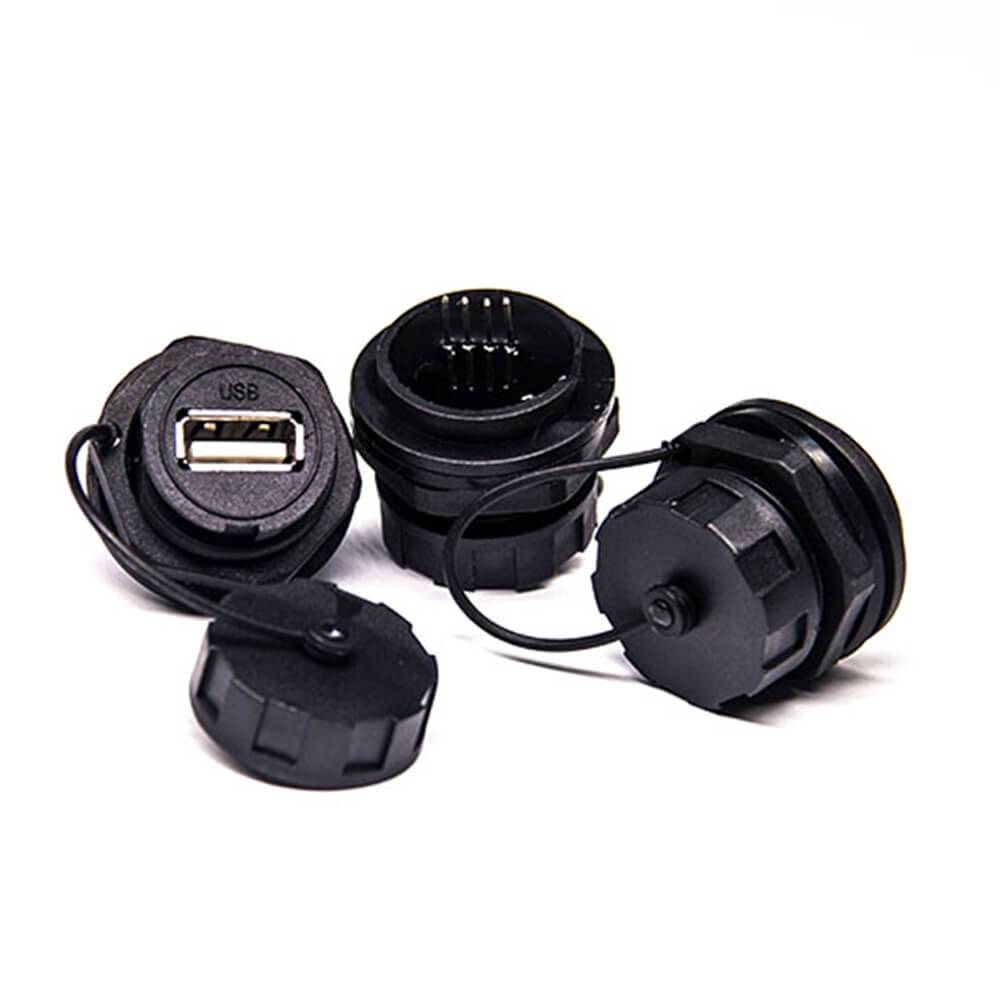

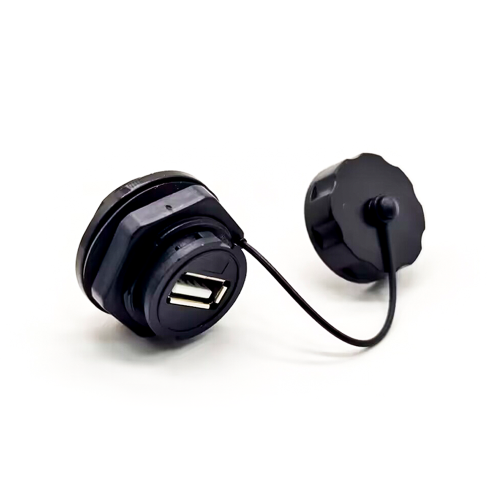

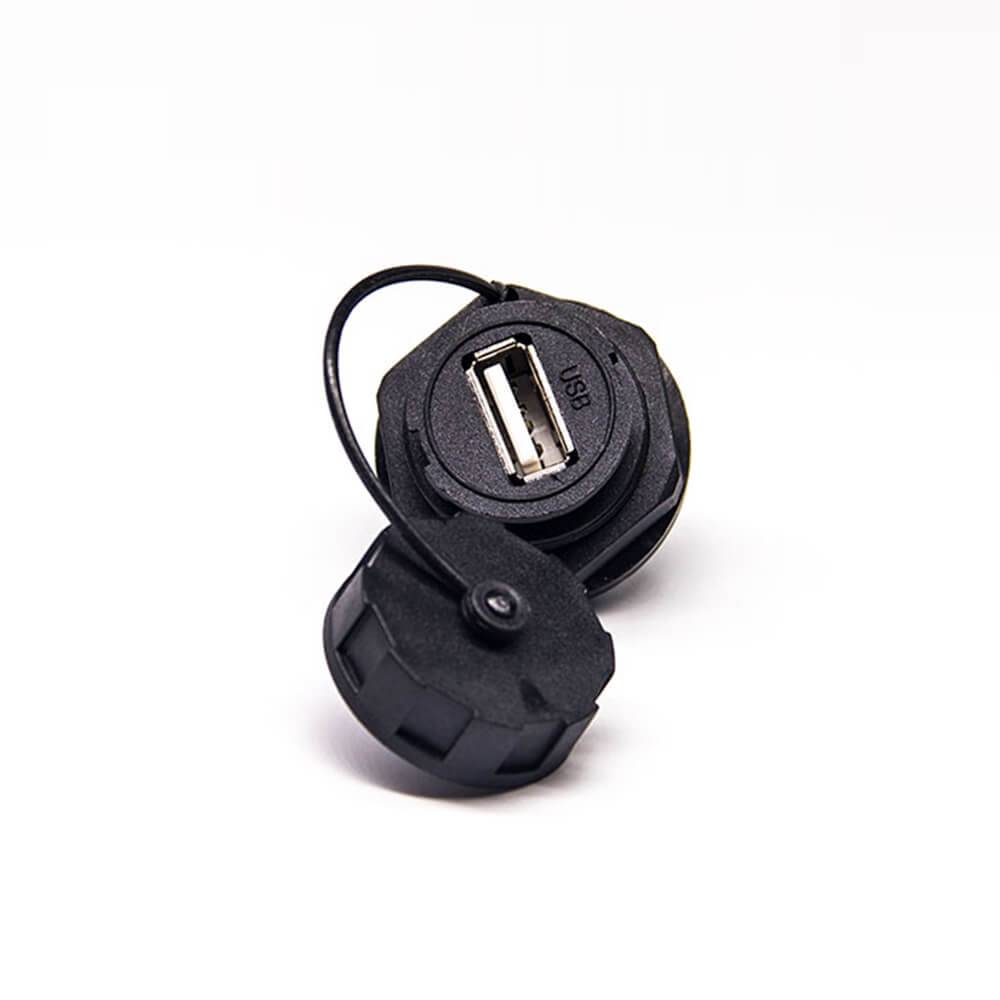

Waterproof USB 2.0 Connectors Type A Female Front Panel Lock Mount IP67 with Dust Cover
from
$3.33
Ex Tax: $3.33
10 or more $3.06
30 or more $2.83
50 or more $2.66
100 or more $2.50
- Stock: In Stock
- Model: JE00005916
- Weight: 16.00g
- SKU: JE00005916
Products Sold: 0
Product Views: 5
Ask a Question About This Product
- Description
MATERIAL:
- Housing and Nut: Glass filled thermoplastic, UL94 V-0, black
- Gasket and Seals: Silicon rubber shield, stainless steel
- PCB: FR4 fiberglass
- Contacts: Copper alloy plated with gold over nickel
- Shield: Stainless steel
Main Application:
- Base Station
- Power
- Router
- Server
- Power Generation
- Automation
- Smart Grid
- LED Lighting
- Robotics
- MRI
- Ultrasonic
- CT
- Monitoring
Electrical Characteristics:
- DWV 500 VAC / 1 minute
- Speed: 480Mb/s
- Contact Resistance: 30mΩ max.
- Insulation Resistance: 1000MΩ min.
- Current Rating: 1.5A
Mechanical Characteristics:
- Wire Gauge (where applicable): 24AWG/28AWG (power/signal)
- Cable Range (where applicable): 3.50mm to 6.80mm OD
- Durability: 1500 mating cycles
Environmental Characteristics:
- Operating Temperature: -45°C to +85°C
- RoHS compliant
