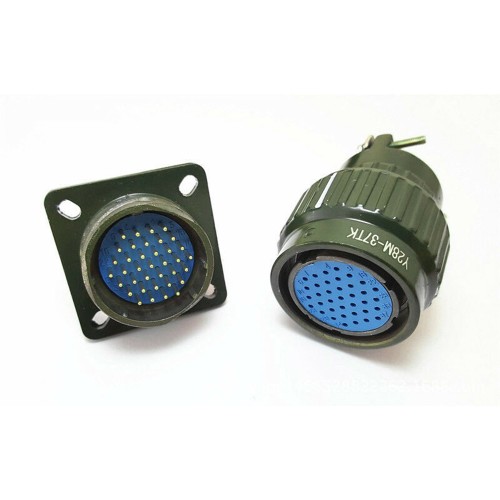

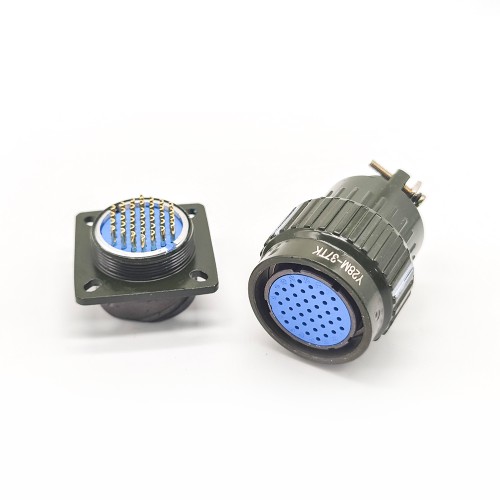

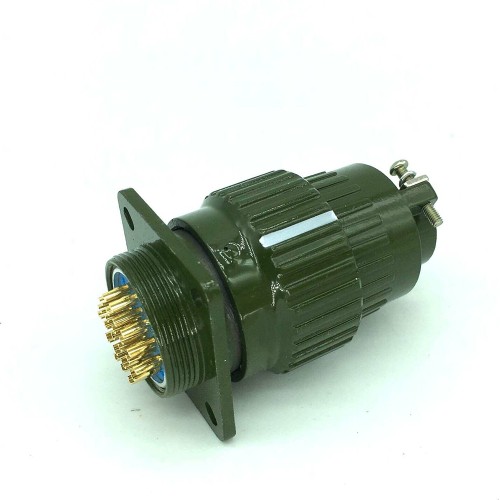

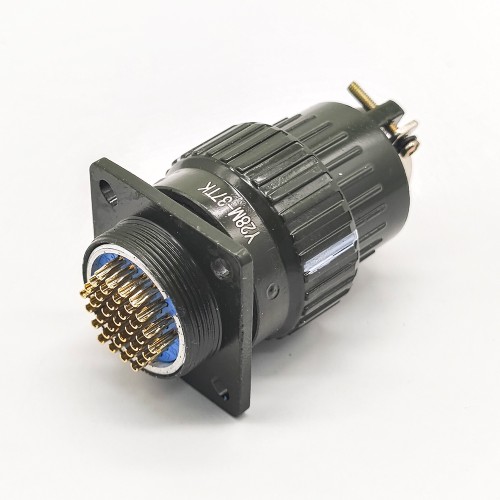

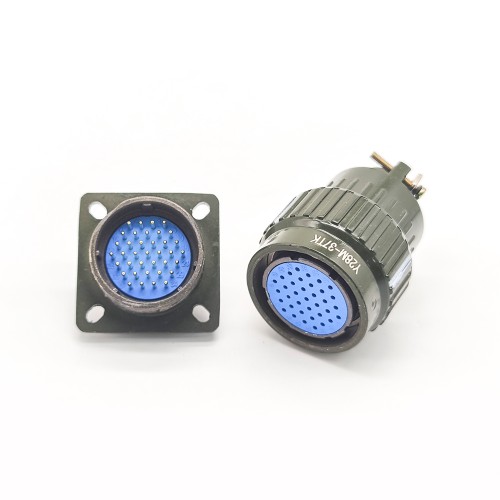

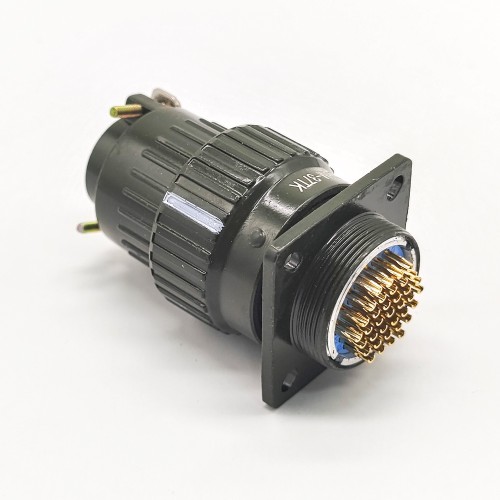

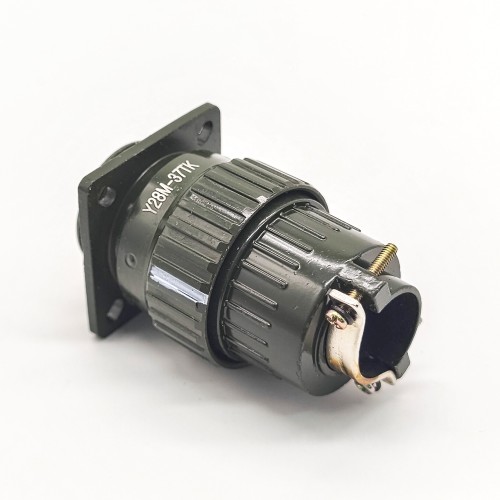

Y2M-37TK 37 Pins Circular Connector Army Green Aviation Plug Socket YP28 Y28M

Electrical Characteristics

• Relative humidity: 92-98% at 40±2℃
• Insulation resistance: ≥1000MΩ
• Contact Resistance: 1MΩ/3MΩ/5MΩ
• Frequency Range: 10-2300Hz,180m/s2
• Voltage: 300V
• Current: 5A/10A/25A

Mechanical Characteristics

• Mating Type: Bayonet coupling
• Termination: Solder
• Durability(mating): 500 cycles
• Sinusoidal vibration: 10~2500Hz acceleration 196m/s²
• Shock: acceleration 980/s²
• Collision: Acceleration 392/s²
• Constant acceleration: acceleration 245m/s²

Environmental Characteristics

• Temperature Range: -40°C ~ +85°C
• Atmosphere:  101.33kPa~6.67Pa

Material:

• Shell: Aluminum Alloy
• Contact: Copper, Gold Plated

Contact Properties：

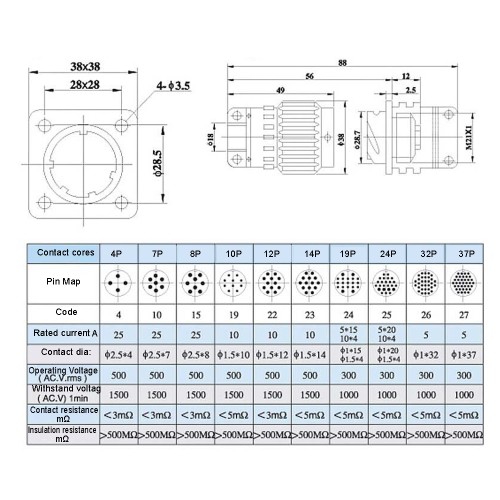

• Pin diameter: 1mm*37
• Working current: 5A
• Contact resistance: ≤5mΩ
• Number of contact cores: 37
• Withstand voltage: 1000 AC Vrms
