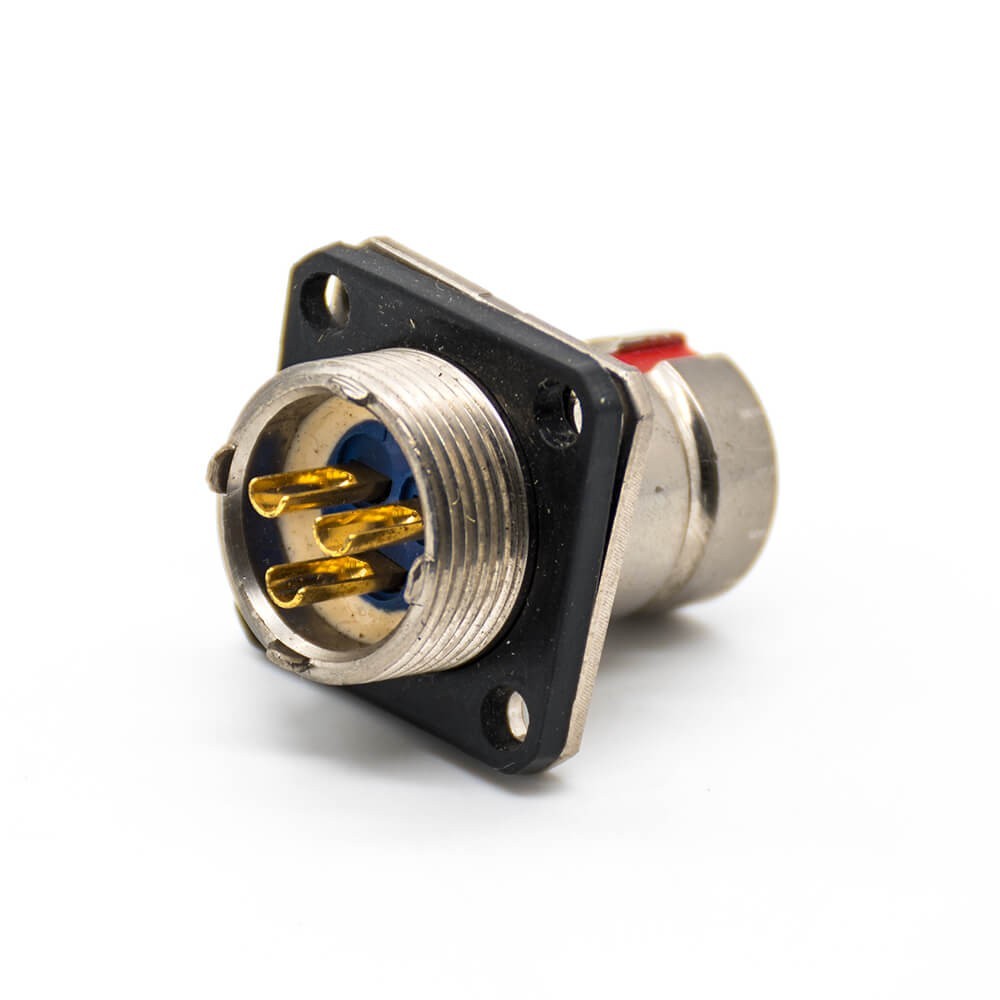

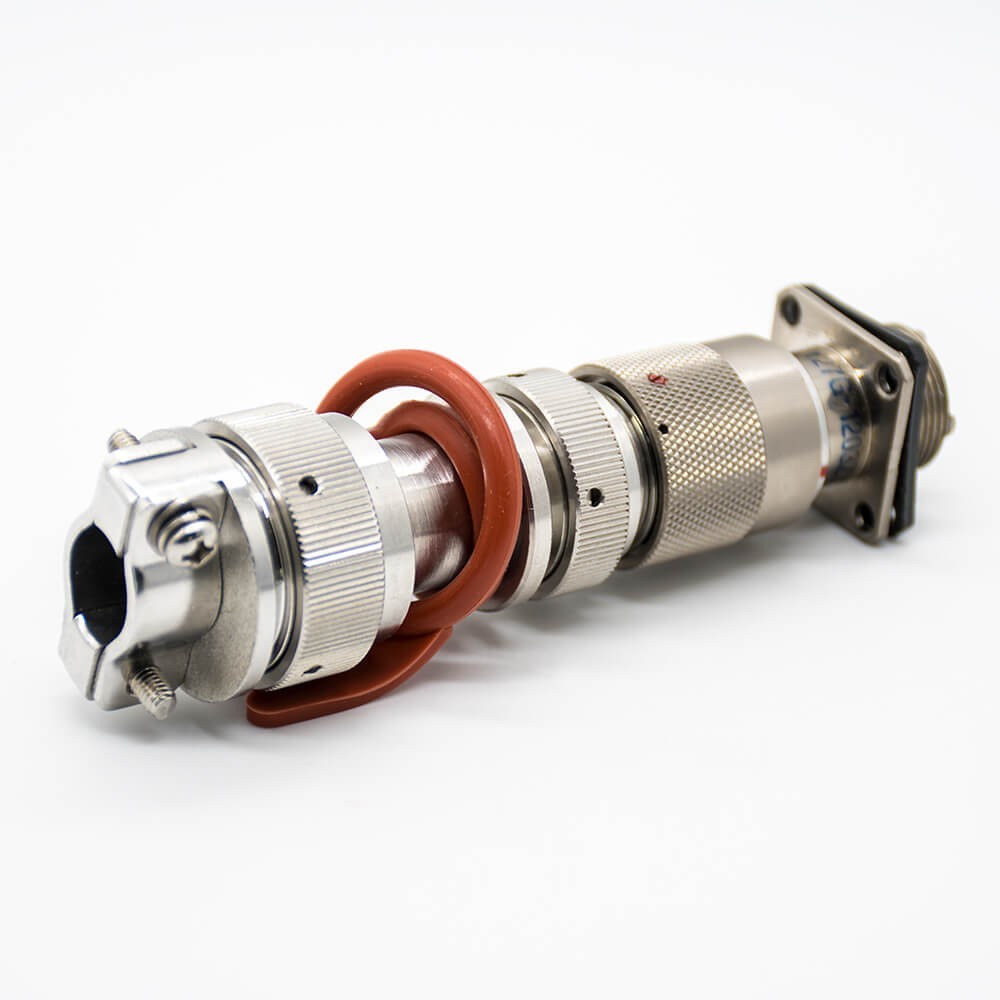

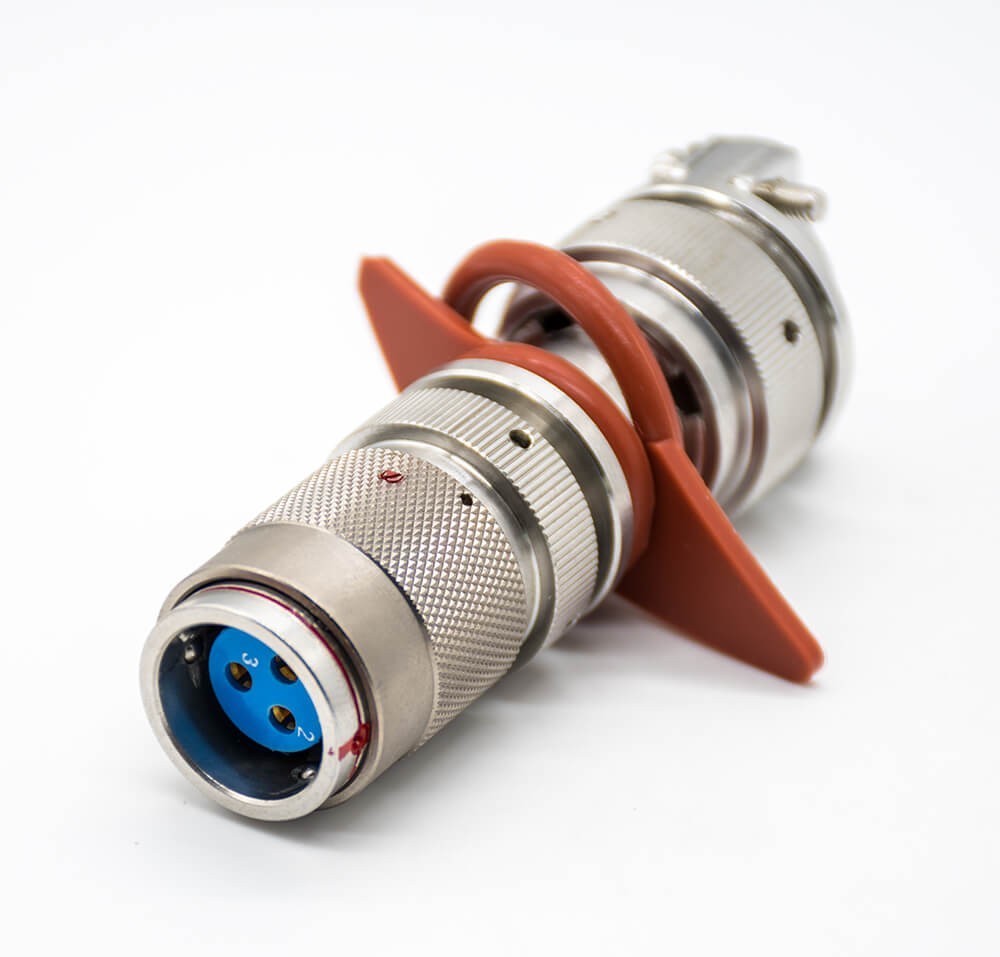

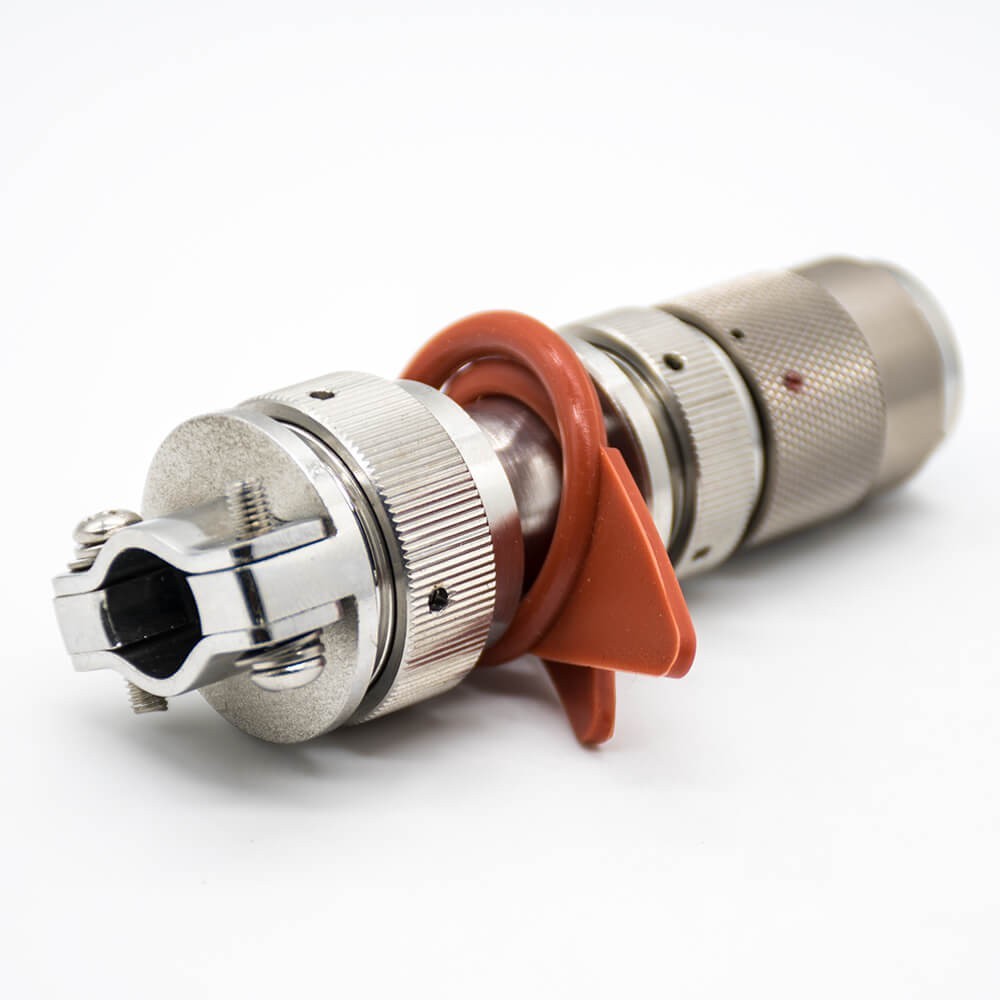

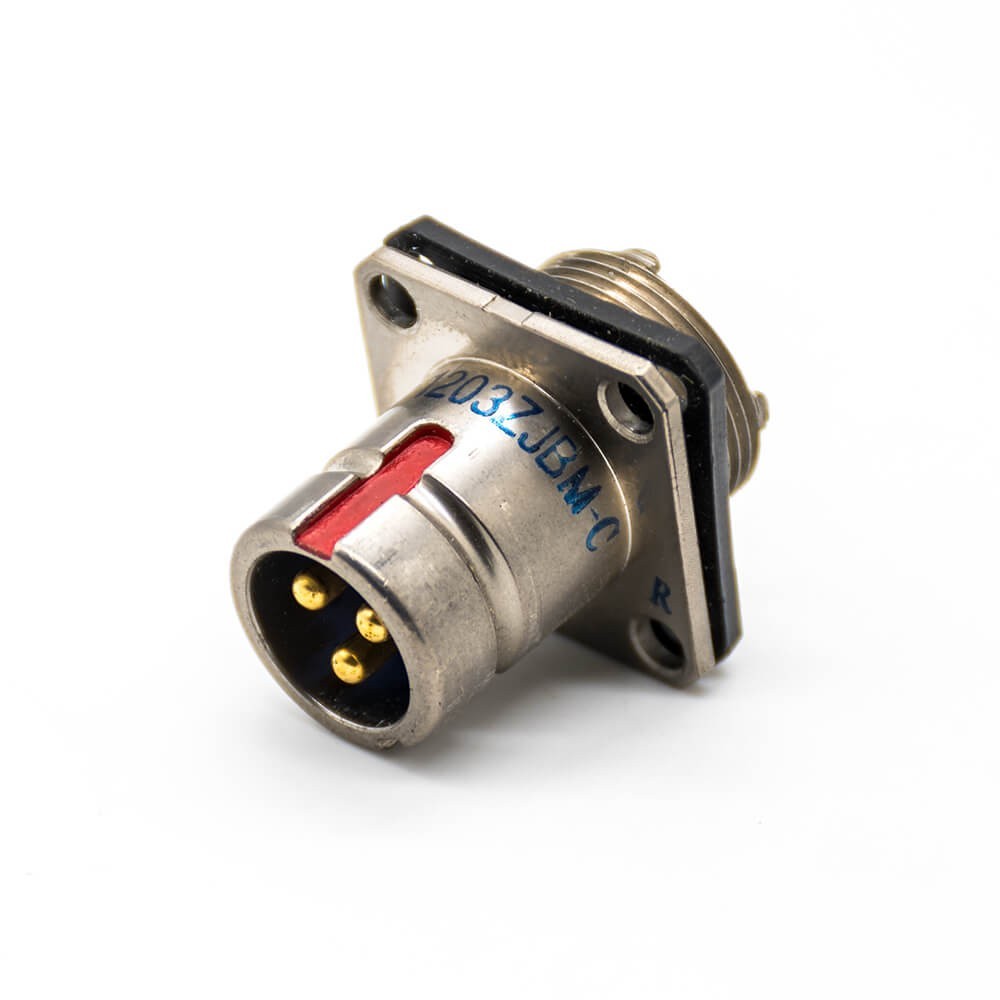

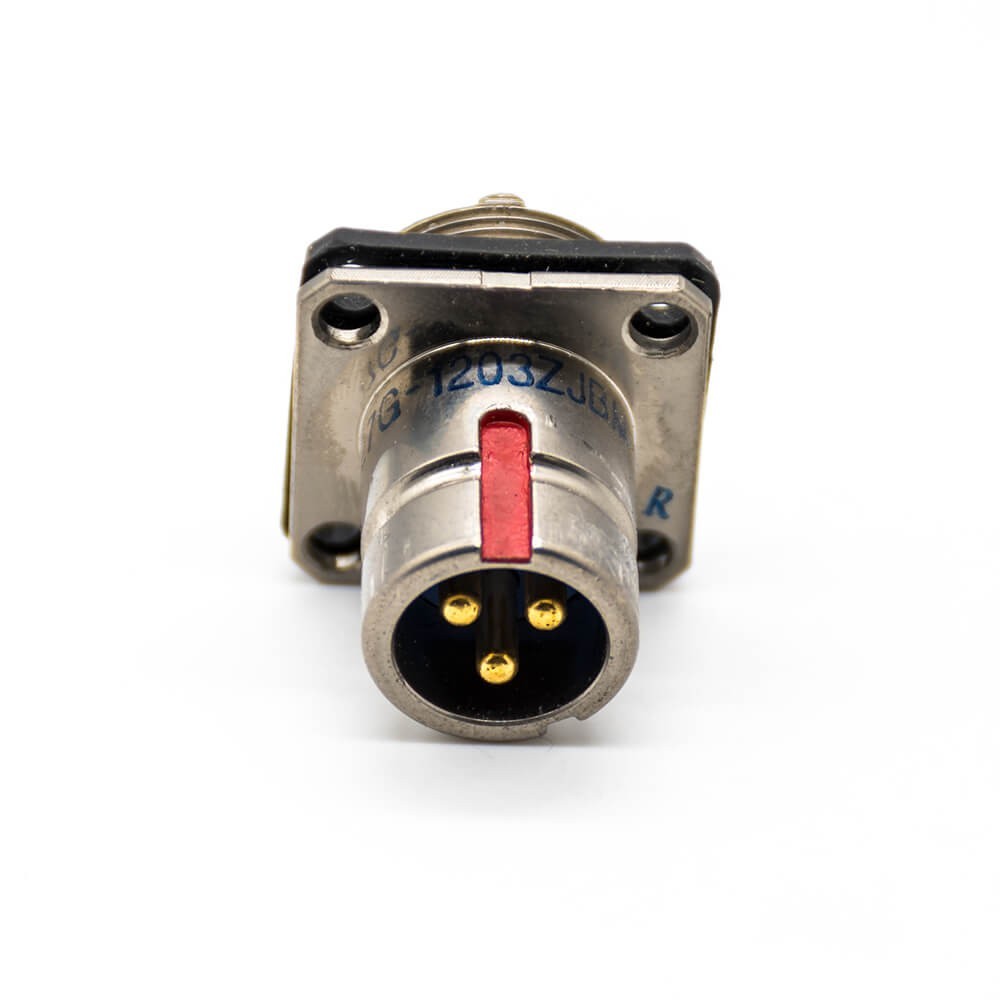

3 Pin Plug And Socket Female Butt-jiont Male 12 Shell Size Y27G Panel Mount Solder cup Admiralty Metal Connector

Applications:

• Strategic and tactical system
• Electronic countermeasure system
• Field electrical energy
• Communication signals connect the system
• Aerospace navigation communication and test tracking system
• Computer system
• Post and telecommunication railway command system
• Import medical equipment
• Connection of electrical and telecommunication signals

Electrical Characteristics

• Relative humidity: 92-98% at 40±2°C
• Insulation resistance: ≥3000MΩ
• Contact resistance: 1.5MΩ/3MΩ/5MΩ/7M
• Rated voltage: 600V
• Rated current: 3A / 5A / 10A / 25A

Mechanical Characteristics

• Vibration: vibration frequency is 10Hz-2000Hz, acceleration 196 m/s2
• Impact: acceleration 980.7 m/s2
• Collision: 392 m/s2
• Mechanical life: 500 times

Environmental Characteristics

• Working temperature: -55 ° C ~ +125 ° C
• Working pressure: 101.33kPa-1.33Pa
• Air tightness: ordinary socket: no more than 6 × 10-2 PaL / s
• Glass sintered socket: no more than 1×10-5 PaL/s

Material:

• Shell: aluminum alloy
• Insulator: thermoplastic material
• Contact: copper alloy gold plating/nickel plating
