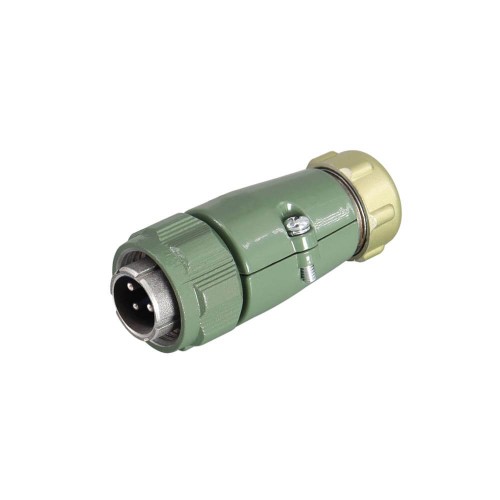

Aviation Connector YD20 3 Pin 25A Waterproof Plug+Socket Straight-Reverse Mount TP+Z
from
$7.07
Ex Tax: $7.07
- Stock: In Stock
- Model: JE00005430
- Weight: 50.00g
- SKU: JE00005430
Products Sold: 0
Product Views: 11
Ask a Question About This Product
- Description
YD20 options: 3,4,5,7 pin
YD28 options:4,7,10,15 Pin
YD32 option：4pin
YD40 option:31 Pin
Electrical Characteristics
- Rated current: 10A (contact diameter Ø1.5mm）
- Rated current:25A (contact diameter Ø2.5mm）
- Rated current:50A (contact diameter Ø3.5mm）
- Rated current:100A (contact diameter Ø5.5mm）
- Ø1.5mm Center Contact Resistance≤2.5 mΩ(Milliohms max.)
- Ø2.5mm Center Contact Resistance≤1 mΩ(Milliohms max.)
- Ø3.5mm Center Contact Resistance≤0.5 mΩ(Milliohms max)
- Ø5.5mm Center Contact Resistance≤0.3 mΩ(Milliohms max)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧2000 mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: Threaded
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics:-45℃~+125℃
Material:
| Part | Material | Finish |
| Body | Aluminum alloy | Aluminum alloy |
| Center Contact Pin | Gold/Sliver | Gold/Sliver |
| Insulator | PPS | Blue |
